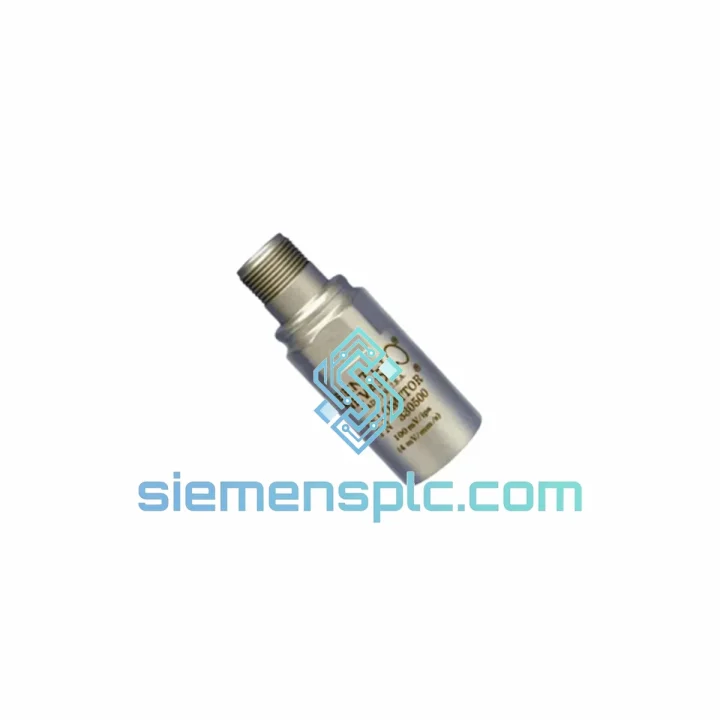

Bently Nevada 330500-00-00 Velomitor Piezo-Velocity Sensor – Velomitor XA Series

Bently Nevada 330500-00-00 Velomitor Piezo-Velocity Sensor — Core Role in Continuous Machinery Protection Loops

The Bently Nevada 330500-00-00 is a two-wire, loop-powered piezo-velocity transducer engineered for permanent installation on rotating machinery casings. Within a closed-loop machinery protection architecture, this sensor occupies the signal-acquisition layer: it converts mechanical casing velocity into a 4–20 mA analog current proportional to vibration intensity, which is then conditioned by a Bently Nevada 3500-series monitor rack before triggering alarm or trip relay logic. Unlike eddy-current proximity probes that measure shaft relative displacement, the 330500-00-00 measures absolute casing velocity — a critical distinction when evaluating bearing-housing resonance, structural looseness, or unbalance in machines where shaft access is impractical.

The sensor’s piezoelectric element generates a charge proportional to applied acceleration. An internal signal-conditioning ASIC integrates that charge signal once to produce a velocity output, then drives the 4–20 mA current loop without requiring an external signal conditioner. This self-contained architecture reduces wiring complexity and eliminates a potential failure node in the measurement chain. The 2 Hz lower frequency cutoff is set by the internal high-pass filter, suppressing thermal drift and low-frequency structural sway, while the 1,000 Hz upper cutoff captures the fundamental and second harmonic of most rotating machinery fault frequencies up to 60,000 RPM.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Piezoelectric Charge Path and Integration Architecture: The sensing element is a shear-mode PZT crystal stack oriented to maximize sensitivity to axial casing motion while minimizing cross-axis coupling. Shear-mode geometry provides a higher charge-per-unit-force ratio than compression-mode designs and exhibits lower sensitivity to base-strain — a significant advantage when the sensor is mounted on a machine casing subject to thermal expansion. The charge output feeds a low-noise charge amplifier with a defined integration time constant that converts acceleration (C/g) to velocity (mA/(in/s)) within the ASIC. The integration is performed in the analog domain, avoiding the quantization noise and latency associated with digital integration approaches used in some competing designs.

EMC Design and Shielding: The 330500-00-00 employs a fully shielded stainless-steel housing with the shield connected to the cable drain wire at the sensor end only (single-point grounding). This topology prevents ground-loop currents from flowing through the shield and inducing common-mode noise on the signal pair — a frequent failure mode in industrial environments with variable ground potentials across machine frames. The internal ASIC incorporates transient voltage suppression (TVS) diodes on the supply and output lines, rated to clamp surges up to ±500 V for 1 ms, consistent with IEC 61000-4-5 Level 3 surge immunity requirements.

Thermal Stability and Zero-Drift: The piezoelectric element is thermally compensated across the full −40°C to +121°C operating range. The internal ASIC uses a bandgap voltage reference with a temperature coefficient of <50 ppm/°C, ensuring that the 4 mA zero-velocity output drifts by less than 0.02 mA across the full temperature span. This level of zero stability is essential in applications where the monitor rack’s alarm threshold is set close to the quiescent output level — for example, on very smooth-running turbines where the normal vibration velocity is below 0.1 in/s RMS.

Mechanical Resonance Management: The sensor body is designed with a mechanical resonant frequency above 3,000 Hz, well beyond the 1,000 Hz electrical bandwidth. This separation prevents the mechanical resonance from amplifying in-band signals and ensures the ±3 dB frequency response specification is maintained without electronic notch filtering. The 1/4-28 UNF mounting stud provides a rigid, low-compliance interface to the machine casing, minimizing the mounted resonance frequency shift that occurs with adhesive or magnetic mounts.

System Integration Benefits

• Direct 3500-Series Rack Compatibility: The 4–20 mA output maps directly to the input range of the Bently Nevada 3500/42 Velocity Monitor module without any signal conditioning adapter, reducing BOM complexity and eliminating an additional failure point in the measurement chain.
• Deterministic Loop Latency: The analog 4–20 mA output has no protocol stack overhead. Signal propagation from mechanical event to monitor input is bounded only by the sensor’s electrical bandwidth (1,000 Hz), enabling the 3500 rack to execute trip relay logic within one scan cycle (<20 ms) of a threshold exceedance.
• Hazardous Area Deployment: FM and CSA intrinsically safe certifications allow installation in Zone 1 / Division 1 classified areas without additional barriers in many configurations, reducing installation cost and panel space in upstream oil and gas facilities.
• Diagnostic Transparency via 4–20 mA Health Monitoring: A broken wire or open-circuit fault drives the loop current to 0 mA (below the 4 mA live-zero), which the 3500/42 module detects as a sensor fault and annunciates independently of the vibration alarm — providing continuous sensor health visibility without additional diagnostic hardware.
• Reduced Commissioning Time: The self-contained signal conditioning eliminates the need to configure external integrator modules or adjust gain potentiometers. The sensor is calibrated at the factory to 100 mV/in/s and ships with a NIST-traceable calibration certificate, allowing direct installation and loop verification without field calibration.
• Wide Supply Voltage Tolerance: The 18–30 VDC supply range accommodates both 24 VDC nominal industrial supplies and the voltage drop across long cable runs (up to ~500 m at 0.5 mm² conductor cross-section) without requiring a local power conditioner.
• Interoperability with Third-Party DCS Platforms: The standard 4–20 mA output integrates with any DCS or SIS analog input card (Emerson DeltaV, Honeywell Experion, ABB 800xA) via standard HART-compatible wiring, enabling vibration data to be logged in the plant historian alongside process variables without a dedicated vibration data acquisition system.
• Long-Term Spare Parts Alignment: The MIL-C-5015 connector and 1/4-28 UNF mounting thread are industry-standard interfaces. Replacement cables and mounting hardware are available from multiple suppliers, reducing long-term maintenance dependency on a single vendor.

Quality Assurance & Global Logistics

Every Bently Nevada 330500-00-00 unit supplied by siemensplc.com is sourced through verified channels with full traceability documentation. Prior to dispatch, each unit undergoes a pre-shipment functional verification protocol: sensitivity check at 100 Hz reference excitation, 4–20 mA output linearity verification across three velocity setpoints, insulation resistance test at 500 VDC between signal conductors and housing, and visual inspection of the MIL-C-5015 connector contacts and housing finish.

Units are packaged in anti-static, moisture-barrier bags with desiccant, placed in foam-lined cartons rated for international air freight handling (ISTA 2A). Certificates of Conformance (CoC) and original factory calibration certificates are included with each shipment. Export documentation — including commercial invoice, packing list, and HS code classification (HS 9031.80) — is prepared in-house to minimize customs clearance delays.

Shipments originate from Xiamen, China. Standard international express delivery (DHL / FedEx / UPS) reaches most destinations in Europe, North America, Southeast Asia, and the Middle East within 3–5 business days. In-stock units are dispatched within 24 hours of order confirmation. For time-critical plant shutdowns or emergency maintenance windows, same-day dispatch is available on confirmed orders received before 14:00 CST.
