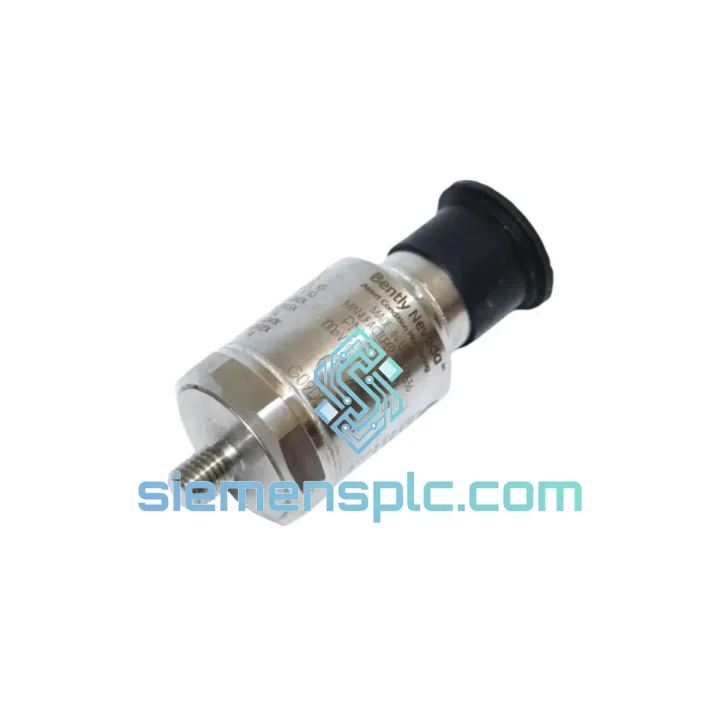

Bently Nevada 330500-04-01 Vibration Sensor – Velomitor Series

Bently Nevada 330500-04-01 Velomitor Piezo-Velocity Sensor: Role in Continuous Machinery Protection Loops

The 330500-04-01 occupies a well-defined position in the machinery protection signal chain: it converts mechanical vibration energy at bearing housings and structural mounting points into a loop-powered 4–20 mA current signal, directly readable by any standard analog input module or Bently Nevada 3500 Series rack without an external signal conditioner. This architecture collapses what was historically a three-component field assembly — geophone, integrator, transmitter — into a single sealed unit, reducing junction box wiring density and eliminating a failure node that has historically accounted for a disproportionate share of spurious trips in continuous process plants.

Within a typical API 670-compliant protection loop, the 330500-04-01 feeds its 4–20 mA output to a monitor card that compares the live velocity value against Alert and Danger setpoints. Because the sensor itself performs the acceleration-to-velocity integration internally via an ASIC-based signal conditioning stage, the monitor card receives a pre-processed, bandwidth-limited signal. This means the monitor’s analog-to-digital conversion stage operates on a clean, noise-suppressed input rather than a raw acceleration waveform, improving setpoint repeatability and reducing nuisance trips caused by high-frequency structural resonances above the 1,000 Hz upper cutoff.

The sensor is rated for permanent installation on centrifugal pumps, multistage compressors, electric motors (IEC 60034-14), gearboxes, cooling tower fans, and turbine bearing housings — any rotating asset where ISO 10816-3 or ISO 20816 velocity severity criteria apply. Its 2 Hz lower frequency cutoff captures sub-synchronous vibration components relevant to fluid-film bearing instability and misalignment diagnostics, while the 1,000 Hz upper limit excludes blade-pass frequencies on high-speed machinery that would otherwise saturate a broadband sensor.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Internal Signal Integration Architecture: The 330500-04-01 houses a shear-mode piezoelectric accelerometer element bonded to a seismic mass. The element generates a charge output proportional to acceleration. An ASIC-based charge amplifier converts this to a voltage, which is then passed through an analog integrator stage — a precision op-amp network with a defined integration time constant — to produce a velocity-proportional voltage. A final V-to-I converter scales this to the 4–20 mA loop current. The entire signal chain is contained within the stainless steel housing, hermetically sealed against moisture ingress to IP67. This eliminates the thermal drift and ground loop issues that plague external integrator boxes mounted in field junction enclosures.

EMC Design: The housing acts as a Faraday shield for the internal electronics. The 2-wire loop topology means there is no separate signal return conductor — the loop current itself is the signal, making the measurement inherently immune to common-mode noise induced on cable runs. The sensor’s internal bandwidth limiting (1,000 Hz cutoff) also attenuates high-frequency EMI that would otherwise alias into the measurement band. For installations near variable-frequency drives or high-current bus bars, the 316L stainless body provides additional shielding attenuation beyond what a plastic-housed sensor could offer.

Thermal Stability: The ASIC is specified across the full –40°C to +121°C operating range with compensated gain drift. In high-ambient installations — steam turbine bearing pedestals, for example, where ambient temperatures routinely reach 80–100°C — the sensor maintains output accuracy without requiring field recalibration. The piezoelectric element’s charge sensitivity has a known temperature coefficient, and the internal ASIC applies a correction factor derived from an on-chip temperature sensor, keeping the velocity output within the published accuracy band across the full thermal range.

Mechanical Robustness: The 1/4–28 UNF mounting thread is machined to tight tolerances to ensure consistent coupling stiffness between the sensor base and the machine surface. Poor coupling is the primary source of high-frequency response error in accelerometer-based measurements; the Velomitor’s rigid stainless base and specified torque value (typically 2.8 N·m) ensure the mounted resonance frequency remains well above the 1,000 Hz measurement cutoff, preventing resonance amplification within the measurement band.

System Integration Benefits

• Direct 4–20 mA compatibility: Interfaces natively with any PLC or DCS analog input card — Siemens S7-300/400/1500 SM331/AI modules, Rockwell 1756-IF16, Honeywell HC900, ABB S800 — without signal conditioning hardware between sensor and cabinet.
• Bently Nevada 3500 rack plug-and-play: Connects directly to 3500/42M Velocity Monitor and 3500/45 Position Monitor input channels; no adapter or termination board modification required.
• Deterministic loop current output: The 4–20 mA standard provides a defined live-zero (4 mA = 0 mm/s), allowing the monitor or PLC to distinguish a zero-vibration condition from a broken wire or sensor failure (0 mA), improving diagnostic transparency without additional hardware.
• Reduced field wiring complexity: 2-wire loop-powered topology eliminates the separate excitation supply conductor required by IEPE (constant-current) accelerometers, reducing terminal block count and cable cross-section in field junction boxes.
• Wide supply voltage tolerance (18–30 VDC): Compatible with both 24 VDC and 28 VDC loop supply standards used in different DCS architectures, eliminating the need for a dedicated regulated supply rail.
• IP67 ingress protection: Suitable for outdoor installations, washdown areas, and environments with condensation or water spray without additional protective enclosures, reducing installation material cost.
• No moving parts: Unlike moving-coil geophone velocity transducers, the piezoelectric sensing element has no mechanical resonance frequency within the measurement band and no coil suspension that fatigues over time, resulting in a significantly longer mean time between failures (MTBF) in continuous-duty applications.
• ISO 10816 / ISO 20816 direct readout: The 0–50 mm/s RMS full-scale range maps directly to the velocity severity zones defined in ISO 10816-3 for industrial machines above 15 kW, allowing the monitor setpoints to be configured directly in engineering units without scaling factors.
• Hazardous area variant availability: The standard 330500-04-01 is suitable for non-classified areas; ATEX/IECEx-rated variants in the 330500 family are available for Zone 1/Zone 2 installations, providing a consistent sensor platform across classified and non-classified areas of the same plant.
