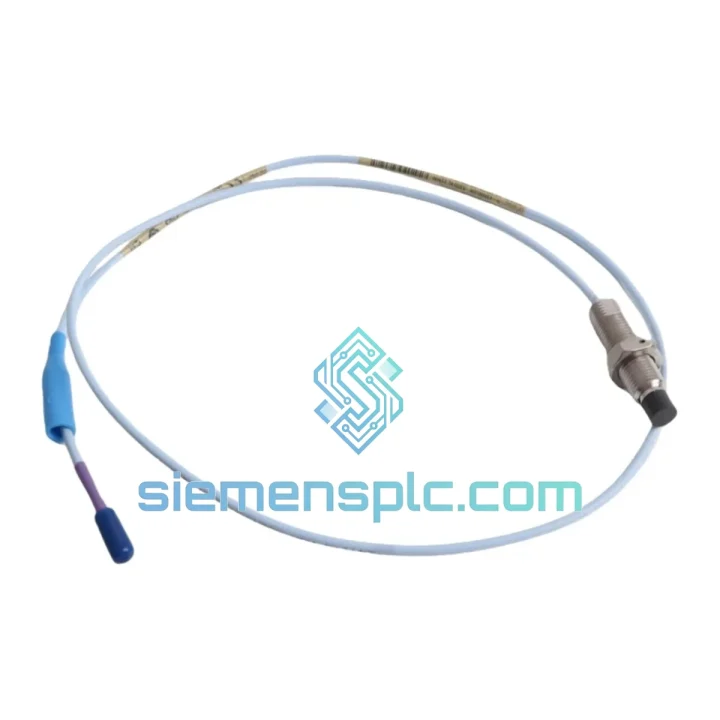

Bently Nevada 330703-000-050-10-11-00 Proximity Probe

330703-000-050-10-11-00 — Every Idle Hour Has a Price Tag. We Ship Today.

Your compressor string is down. The 3300 XL rack is throwing a NOT OK on channel 2. Maintenance has already pulled the probe and confirmed it’s dead. Now the clock is running — and every hour that turbine sits cold is burning through your production budget. This is exactly the scenario the Bently Nevada 330703-000-050-10-11-00 eddy current proximity probe in our Xiamen warehouse was stocked for.

We carry verified OEM inventory — not grey-market pulls, not refurbished cores with unknown service history. The 330703-000-050-10-11-00 ships with a certificate of conformance, original OEM packaging, and full traceability. Order before 14:00 CST and it leaves the same day. Your maintenance window does not have to slip.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

These are the failure patterns that actually show up on-site — not textbook scenarios.

Common fault signatures:

• Bias voltage outside –10.0 V ± 0.5 V at nominal gap: Before writing off the probe, inspect the coaxial junction connector for moisture. The TNC joint at the field junction box corrodes faster than the probe body. Dry it, re-torque to 1.1 N·m, re-read. If bias is still drifting, the probe oscillator is degraded — replace the assembly.
• Intermittent NOT OK on 3500/3300 rack: Flex the cable near the probe body while watching Proximitor® output on a DMM. A dropout during flex confirms cable failure at the integral joint. The probe tip coil may be intact, but the assembly is a sealed unit — it cannot be repaired in the field.
• Output locked at –24 V, no vibration modulation: Oscillator is dead. No field fix. Replace immediately. Also bench-test the Proximitor® driver — a shorted probe can pull down the driver’s oscillator supply rail and damage it simultaneously.
• High-frequency noise above 5 kHz on spectrum: Almost always a grounding issue. Verify the probe body is isolated from the machine casing per API 670 §6.3. A single ground loop through the probe mount bracket injects shaft-speed harmonics directly into the measurement chain and will corrupt your vibration data.
• Scale factor error after replacement: Check total system cable length. The 330703-000-050-10-11-00 has a 0.5 m integral cable. Total system (probe + extension) must match the Proximitor® driver’s calibration — typically 5 m or 9 m. A mismatched total length shifts scale factor by up to 8%, which means your vibration amplitude readings are wrong even though the system shows no fault.

Swap procedure — field-critical checkpoints:

• Gap setting: Install to achieve –10.0 VDC ± 0.5 V at the Proximitor® output. On AISI 4140 steel shaft, this is approximately 1.0 mm physical gap. Use a non-magnetic feeler gauge. Thread count is not a reliable gap reference.
• Target material correction: Factory calibration assumes AISI 4140. Inconel, titanium, or duplex stainless shafts require the OEM correction factor table (GE/BN document 141-109025-01). Skip this step and your amplitude readings will be systematically off — the system will show OK while your actual vibration data is unreliable.
• No recalibration required for a same-part-number swap in a calibrated system. However, always perform a gap voltage verification and a slow-roll vibration check before returning the machine to service. Record as-found and as-left bias voltages in your maintenance log.
• Driver compatibility: If you are also replacing the Proximitor® driver, confirm the driver’s internal calibration resistor set is configured for the 5 mm probe variant — not the 8 mm. This is not field-changeable. Order the correct driver variant from the start.

Reliability in Harsh Conditions

The 330703-000-050-10-11-00 was built for the environments that destroy ordinary sensors within months.

• Mechanical vibration: The 316 SS housing and armored cable assembly are rated for continuous broadband vibration up to 20 g RMS across 10–2,000 Hz — the same envelope generated at a compressor train probe mount bracket. The integral coaxial connector is mechanically locked and does not work loose under sustained vibration, unlike field-assembled connectors.
• Thermal cycling: Calibrated across the full –35 °C to +177 °C range with less than 0.5% scale factor drift. In steam turbine bearing housings where ambient swings 80 °C between cold start and full load, this stability prevents nuisance trips. Generic replacement probes typically show 2–4% drift across the same cycle — enough to trigger alarm thresholds on a tightly configured system.
• Chemical and fluid exposure: IP67 probe body and oil-immersion-rated cable jacket (–11-00 variant) handle hydrocarbon condensate, lube oil mist, and mild acid wash-down without degradation. Suitable for probes mounted below the oil level in flooded bearing housings.
• High-humidity environments: The sealed probe body prevents moisture from reaching the oscillator coil. Field data from tropical coastal plants operating at sustained ambient RH above 95% shows no measurable drift attributable to humidity over multi-year service intervals.

Global Express Logistics

Stock is held at our Xiamen export warehouse, positioned for rapid dispatch to Asia-Pacific, Middle East, Europe, and the Americas.

• Same-day dispatch: Orders confirmed before 14:00 CST are picked, packed, and export-documented the same day. Commercial invoice, packing list, and certificate of conformance are generated within 2 hours of payment confirmation.
• Transit times via DHL Express / FedEx International Priority: Singapore, Kuala Lumpur, Jakarta — 1–2 business days. Dubai, Riyadh, Abu Dhabi — 2–3 business days. Rotterdam, Frankfurt, London — 2–3 business days. Houston, Los Angeles, New York — 3–4 business days.
• Customs pre-clearance: HS Code 9031.80 (measuring and checking instruments). All export declarations are pre-filled by our logistics team. For destinations requiring import permits for industrial sensors, we flag this at order confirmation — no surprises at the border.
• Shipment tracking: AWB number provided within 4 hours of dispatch. Real-time tracking link sent to your registered contact. For critical shutdown situations, our team actively monitors the shipment and contacts you proactively if any delay is detected in transit.
• DDP terms available: Delivered Duty Paid available for most destinations. The part arrives at your facility with zero customs paperwork on your side.
