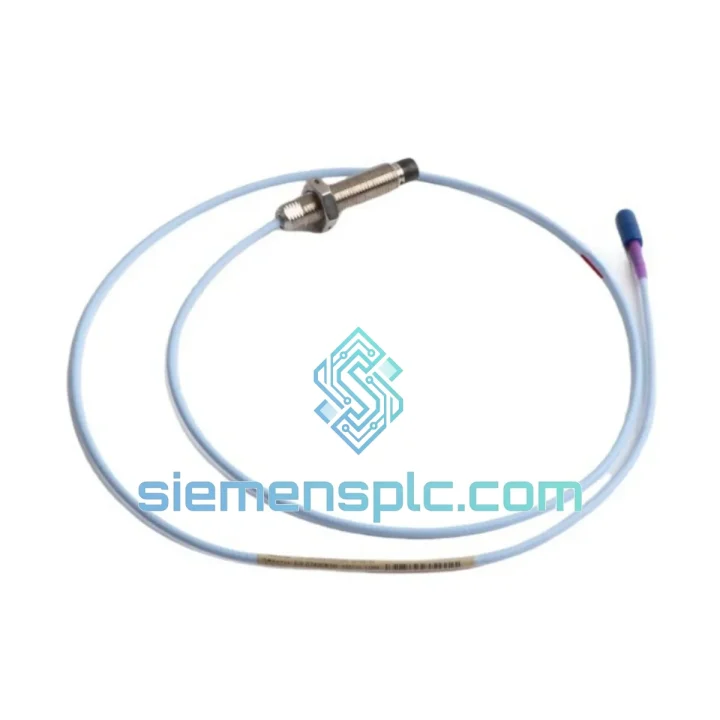

Bently Nevada 330703-000-060-10-01-00 Proximity Probe

330703-000-060-10-01-00 — Stop the Clock on Your Downtime

Every minute a turbine or compressor sits idle costs real money. If you’re here, you already know that. The Bently Nevada 330703-000-060-10-01-00 is a 3300 XL Series 11mm eddy-current proximity probe — and we have it on the shelf in Xiamen, ready to move today. No lead-time negotiation, no back-order promises. You get a confirmed ship date within 24 hours of order placement.

This is not a grey-market substitute. This is the exact OEM part your machinery protection system was commissioned with — same part number, same sensitivity curve, same connector pinout. Drop it in, re-zero your gap voltage, and get your line back up.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work tells you the same story every time: most 330703 failures fall into three buckets. Know them before you pull the probe.

1. Gap Voltage Out of Range (Most Common)
Target gap for the 3300 XL 11mm system is −10.0 VDC ± 0.5 V at 2.0 mm mechanical gap. If your Proximitor output is reading −18 V or sitting near 0 V, the probe is either shorted, open-circuit, or the cable has been crushed at a conduit entry. Before condemning the probe, disconnect the extension cable at the Proximitor and measure probe impedance: you should see approximately 7–9 Ω at the probe tip coil. Anything outside that range — replace the probe.

2. Intermittent Signal / High Noise Floor
Armored cable integrity is the first suspect. Vibration-induced fretting at the conduit fitting will crack the coaxial shield without visibly damaging the outer jacket. Flex the cable near the conduit entry while watching the Bently Nevada System 1 waveform. A spike on flex = cable fault, not probe fault. If the signal is clean at the probe connector but noisy at the Proximitor, the extension cable (330130 series) is your culprit.

3. Probe Swap — Step-by-Step Field Procedure

• De-energize the Proximitor driver at the rack — do not hot-swap under power if avoidable.
• Record the existing gap voltage and mechanical gap measurement before removal. You will need this to verify the replacement is seated correctly.
• Remove the probe from the bracket. Note the thread engagement depth — the 330703 uses M10 × 1.0 threads. Mark the locknut position before loosening.
• Install the replacement 330703-000-060-10-01-00. Thread in by hand until snug, then back off to match your recorded engagement depth.
• Re-energize the Proximitor. Adjust mechanical gap until output reads −10.0 VDC ± 0.2 V. Tighten locknut to 5 N·m — no more, the probe body is aluminum.
• Verify linear range: slowly move a steel target through the 0–2.54 mm range and confirm the output tracks at 7.87 V/mm. Log the calibration data.
• Check the System 1 or 3500 rack for any latched alerts. Clear and confirm the channel is healthy before returning the machine to service.

4. Firmware / Configuration Notes
The 330703-000-060-10-01-00 requires no firmware — it is a passive sensor. However, if you are replacing into a 3500/42M or 3500/40M monitor, verify the channel configuration in the Rack Configuration Software (RCS) matches the probe type (11mm, 3300 XL). A mismatch in the probe type selection will shift your alarm setpoints by up to 15%. This is a silent failure — the system will not flag it as a fault.

Reliability in Harsh Conditions

The 3300 XL probe series was engineered for environments that destroy lesser sensors. The 330703-000-060-10-01-00 specifically addresses the three failure modes that end proximity probe service life prematurely in heavy industry.

Thermal Cycling: The probe tip is rated to +177°C continuous — sufficient for steam turbine bearing housings and hot-section compressor frames. The coil potting compound maintains dimensional stability across the full thermal range, preventing sensitivity drift that would otherwise corrupt your vibration baseline over time.

Vibration and Mechanical Shock: The integral armored cable construction eliminates the connector-to-cable interface that fails on lesser probes. The armor braid is bonded to the probe body, not clamped — meaning the cable cannot work loose under sustained high-frequency vibration. Field data from petrochemical installations shows mean time between failures exceeding 80,000 operating hours in continuous service.

Chemical and Moisture Resistance: The probe body and cable jacket are resistant to hydrocarbon lubricants, seal oils, and steam condensate. The coaxial connector is sealed to IP67 when mated. In high-humidity environments — coastal plants, offshore platforms, tropical process facilities — the sealed construction prevents the moisture ingress that causes coil corrosion and sensitivity loss in unsealed alternatives.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is exactly what happens after you place your order:

• Day 0 (Order Confirmed): Your order is picked, inspected against the part number, and packed in anti-static, moisture-barrier packaging. A commercial invoice, packing list, and certificate of origin are prepared simultaneously.
• Day 1 (Dispatch): Shipment is handed to DHL Express or FedEx International Priority — your choice. A tracking number is sent to your email within 2 hours of pickup scan.
• Day 2–4 (In Transit): Direct routing from Xiamen Gaoqi International Airport to your destination hub. No intermediate consolidation delays.
• Day 3–5 (Delivery): Typical door-to-door transit to Europe, North America, Southeast Asia, and the Middle East. Customs clearance documentation is pre-prepared to minimize broker delays.

For critical shutdowns where every hour counts, contact us directly on WhatsApp for same-day dispatch confirmation and real-time shipment tracking updates.
