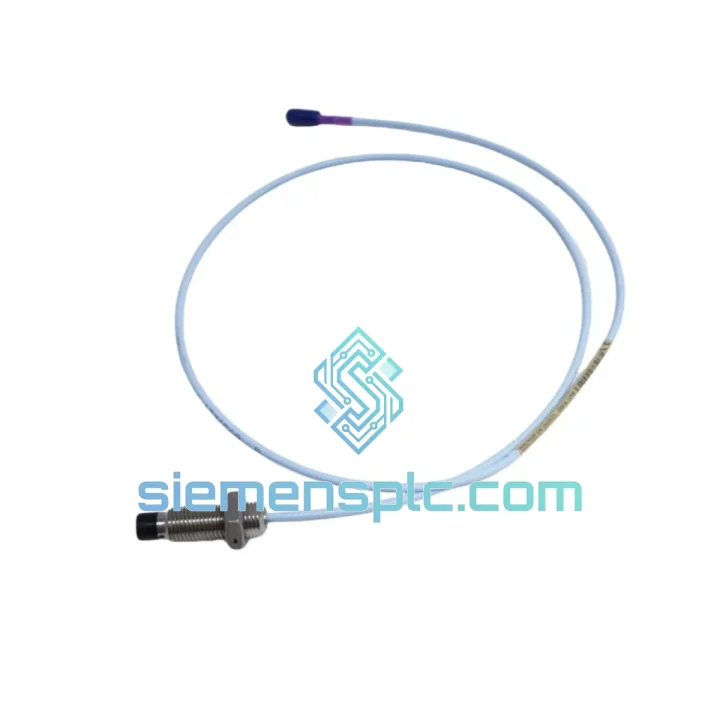

Bently Nevada 330703-000-090-10-02-00 Proximity Transducer

330703-000-090-10-02-00 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine, compressor, or pump sits idle costs real money — maintenance budgets blown, production targets missed, and operations managers breathing down your neck. The Bently Nevada 330703-000-090-10-02-00 11 mm proximity transducer is the exact part that gets your 3300 XL vibration monitoring loop back online. We stock it in Xiamen. We ship it today. No lead-time games, no substitutes.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 3300 XL system reveals a consistent set of failure modes for the 330703-000-090-10-02-00. Check these before you pull the trigger on a replacement — and watch for them during installation.

Common Fault Codes & Root Causes

• –24 VDC rail dropout / Not OK LED on driver: Nine times out of ten this is a broken conductor inside the armored cable at the probe-to-extension junction. Flex the cable near the connector while watching the driver output voltage. If it flickers, the probe assembly is the culprit — not the driver or monitor card.
• High static gap voltage (above –18 V or below –2 V at nominal gap): Probe tip contamination — oil carbon, metalite buildup — or a cracked ferrite core. Clean the tip with isopropyl alcohol first. If the output does not recover within the linear range, replace the probe.
• Erratic vibration readings / elevated noise floor: Check extension cable shield continuity end-to-end. A single shield break introduces 50/60 Hz interference that looks like real vibration. The 3300 XL monitor will not flag this as a hardware fault — it reports false high vibration instead.
• Intermittent Danger trips with no process change: Verify the gap setting. The 330703-000-090-10-02-00 requires a nominal gap of 1.0 mm (40 mil) for the –12 VDC midpoint. If a previous technician set the gap by feel rather than by voltage measurement, the operating point may sit near the edge of the linear range — any thermal shaft expansion pushes it into trip territory.

Replacement Procedure — Key Steps

• De-energize the driver module and confirm –24 VDC supply is isolated before disconnecting the probe cable.
• Record the existing gap voltage before removal using a calibrated DVM on the driver output BNC. Target: –12.0 VDC ± 0.5 V at nominal gap.
• Install the new 330703-000-090-10-02-00. Do not overtighten the locknut — 5 N·m maximum on the M14 thread. Over-torquing cracks the probe body.
• Set gap by voltage: adjust probe depth until driver output reads –12.0 VDC. Lock the nut and re-verify — locking can shift the gap by 0.05–0.1 mm.
• No firmware update or driver reconfiguration required. This is a direct drop-in for all 3300 XL 11 mm driver modules. Sensitivity calibration is factory-set.
• Perform a static calibration check: move the probe through its full linear range (0.25 mm to 2.26 mm) and verify the driver output tracks linearly from approximately –2 V to –22 V. Any dead band or step change indicates a defective unit.

Reliability in Harsh Conditions

The 330703-000-090-10-02-00 is not a lab instrument. It was designed for the inside of a turbine enclosure — where ambient temperatures swing from cold startup to sustained 150°C+ operation, where oil mist coats every surface, and where the probe body absorbs continuous broadband vibration from the shaft it is measuring.

The armored cable construction — 10 mm OD stainless braid over a fluoropolymer-insulated conductor — handles the mechanical abuse that kills standard instrumentation cable within months. The eddy-current sensing principle has no moving parts and no contact with the target shaft, which means wear is not a failure mode. Units in continuous service on gas turbines routinely exceed 10 years of operation without replacement when installed correctly.

The ATEX and FM certifications reflect a design independently verified to operate safely in Zone 1 / Division 1 explosive atmospheres — relevant for any installation near hydrocarbon processing equipment. The –40°C lower temperature limit means the probe survives cold-climate outdoor installations and cold-start conditions without cracking or drift. Vibration immunity is inherent to the eddy-current measurement principle: the probe output responds to the gap between probe tip and target, not to the probe’s own motion — making it immune to the self-excitation problems that plague accelerometer-based systems in high-vibration environments.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items ordered before 15:00 CST. Here is how the shipment reaches you:

• Day 0 — Order Confirmed: Payment cleared, export documentation prepared (commercial invoice, packing list, certificate of origin). Unit pulled from bonded stock and inspected.
• Day 1 — Customs Clearance & Handover: Shipment handed to DHL Express or FedEx International Priority. Export customs cleared through Xiamen Gaoqi International Airport cargo terminal. Tracking number issued within 2 hours of pickup.
• Day 2–4 — In-Transit: DHL Express delivers to major industrial hubs in Southeast Asia within 2 days, Europe within 3 days, and the Americas within 4 days. FedEx International Priority timelines are comparable.
• Customs at Destination: We provide a complete commercial invoice with correct HS code (8543.70) and declared value to facilitate smooth import clearance. Duties and import VAT are the buyer’s responsibility — we can provide a pro-forma invoice for pre-clearance if required.
• Bulk Orders: For 5+ units, sea freight via Xiamen Port is available with 7–14 day transit to most destinations. Contact us for a freight quote.
