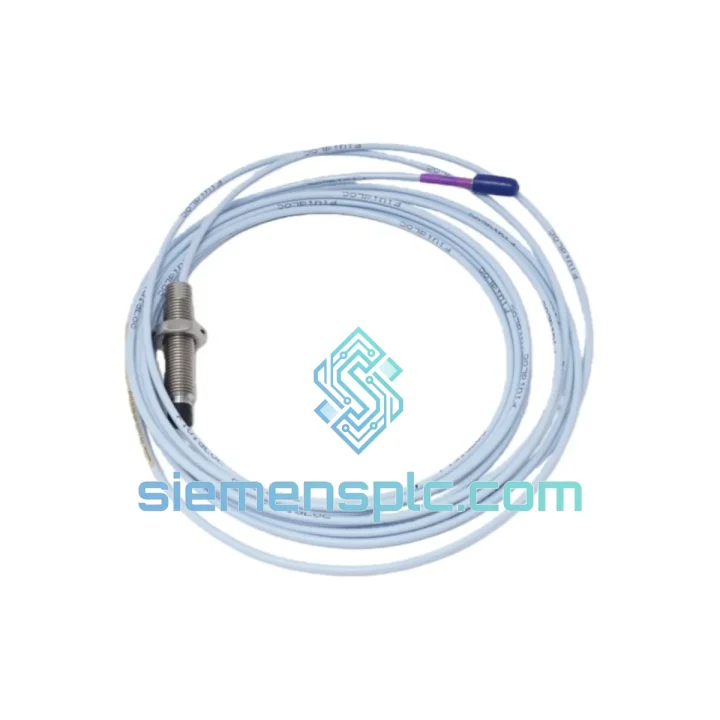

Bently Nevada 330703-000-090-10-02-CN Proximity Probe – 3300 XL Series

Bently Nevada 330703-000-090-10-02-CN: Eddy-Current Proximity Probe for Continuous Shaft Displacement Measurement

The Bently Nevada 330703-000-090-10-02-CN is a metric-threaded, non-contact eddy-current proximity probe belonging to the 3300 XL Series — a platform engineered specifically for machinery protection and condition monitoring on high-speed rotating equipment. This probe operates as the primary sensing element in a three-component measurement chain: probe body, extension cable, and proximitor (signal conditioning module). Its function within a control loop is to convert mechanical shaft displacement into a calibrated DC voltage signal, which is then processed by the 3300 XL monitor rack for alarm, trip, and trending decisions.

In a typical turbomachinery protection loop, the 330703-000-090-10-02-CN is mounted in a threaded boss (M10 × 1.0) positioned radially against the shaft journal. As the shaft orbits within its bearing clearance, the probe’s oscillator circuit detects changes in the eddy-current field induced in the target material. The resulting voltage output — nominally 7.87 V/mm (200 mV/mil) — is transmitted via the extension cable to the proximitor, which buffers and scales the signal before forwarding it to the monitor card. This architecture ensures that the high-frequency oscillator circuitry remains close to the measurement point, minimizing signal attenuation over long cable runs.

The -CN suffix designates the China-market configuration: metric thread form (M10 × 1.0), metric cable length designation (9.0 m total system), and documentation package compliant with GB/T standards. Electrically and mechanically, the probe is identical to its global-variant counterparts and is fully interchangeable within any 3300 XL measurement loop.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330703-000-090-10-02-CN probe body houses a wound coil embedded in a thermoplastic tip assembly, encapsulated in a stainless-steel housing. The coil forms the inductive element of a Colpitts-type LC oscillator circuit located in the proximitor. When the probe tip is positioned within its linear range of a conductive target, the oscillator’s resonant frequency and amplitude are modulated by the eddy-current losses induced in the target surface. The proximitor demodulates this signal and outputs a DC voltage proportional to the probe-to-target gap.

EMC Design: The coaxial cable between probe and proximitor is shielded with a braided outer conductor, grounded at the proximitor end only (single-point grounding). This topology suppresses common-mode noise pickup in electrically noisy machine rooms where variable-frequency drives, high-current bus bars, and arc-welding equipment may be operating simultaneously. The probe housing itself is bonded to the machine frame through the mounting thread, providing a low-impedance path for any induced currents rather than allowing them to flow through the signal conductor.

Thermal Stability: The coil winding uses a temperature-compensated formulation that maintains sensitivity within ±1% across the full −35 °C to +177 °C operating envelope. This is achieved through a matched-coefficient winding geometry: as temperature rises, the coil inductance and the oscillator capacitance shift in opposing directions, partially canceling the net sensitivity drift. For hot-section turbine applications where probe-tip temperatures can approach 150 °C during steady-state operation, this compensation mechanism eliminates the need for external temperature correction tables in the monitor configuration.

Gap Voltage Linearity: The 3300 XL system is factory-calibrated as a matched set (probe + extension cable + proximitor). The calibration curve is stored in the proximitor’s internal resistor network, ensuring that the 7.87 V/mm sensitivity figure is accurate across the full 0.25 – 2.54 mm linear range without requiring field recalibration. Non-linearity at the extremes of the range (below 0.25 mm or above 2.54 mm) is flagged by the monitor as an out-of-range condition, preventing false alarm or missed-trip scenarios caused by probe installation errors.

Redundancy Arbitration: In dual-probe (XY) configurations, two 330703-000-090-10-02-CN probes are mounted 90° apart around the shaft circumference. The 3300 XL monitor performs vector addition of the two orthogonal displacement signals to compute shaft orbit, peak-to-peak vibration amplitude, and DC gap. If one probe channel fails (open circuit, short, or out-of-range gap), the monitor flags the channel individually without masking the remaining channel’s protection function — a critical behavior for uninterrupted machinery protection during maintenance activities.

System Integration Benefits

• Direct 3300 XL Monitor Compatibility: The probe is factory-matched to the 3300 XL proximitor and monitor family. No field calibration or sensitivity adjustment is required at commissioning; the monitor reads the probe’s sensitivity code from the proximitor’s internal network and configures alarm and trip setpoints in engineering units (µm or mil) automatically.
• Metric Thread Eliminates Adapter Hardware: The M10 × 1.0 thread form fits ISO-standard machinery brackets directly. Eliminating thread adapters removes a potential source of probe misalignment, which can introduce a static gap error of up to 0.1 mm if the adapter face is not perfectly perpendicular to the shaft axis.
• API 670 Pre-Validated Architecture: The 3300 XL system, including this probe, is documented in the API 670 standard as a reference implementation for machinery protection. This pre-validation reduces the engineering effort required for SIL assessment and insurance underwriting on new installations.
• Deterministic Signal Latency: The analog signal path from probe tip to monitor output relay has a defined worst-case latency of <1 ms, ensuring that a trip command reaches the machine’s emergency shutdown system within the response time budget specified by API 670 (typically 1 ms for vibration channels).
• Diagnostic Transparency via Gap Voltage Monitoring: The monitor continuously displays the DC gap voltage alongside the AC vibration amplitude. A slow drift in gap voltage over weeks or months indicates bearing wear, shaft bow, or probe mounting looseness — all detectable before they reach alarm thresholds, enabling condition-based maintenance scheduling.
• Long Cable Run Tolerance: The 9.0 m total system length (probe + extension cable) accommodates large machinery footprints — such as a 10 MW steam turbine with a 6 m bearing span — without requiring signal repeaters or active amplification. The proximitor’s input impedance is matched to the cable’s characteristic impedance, preventing reflections that would degrade sensitivity accuracy.
• Hazardous Area Scalability: The standard probe is non-Ex rated, but the identical mechanical form factor is available in ATEX / IECEx Zone 1 configurations using the 3300 XL IS barrier. This allows a single spare-parts strategy across safe-area and hazardous-area installations in the same plant.
• Backward Compatibility with Legacy 3300 Monitors: The 330703-000-090-10-02-CN is electrically compatible with earlier-generation Bently Nevada 3300 series monitors when paired with the correct extension cable and proximitor. This protects capital investment in existing monitor racks during phased plant upgrades.

Quality Assurance & Global Logistics

Every Bently Nevada 330703-000-090-10-02-CN unit supplied by siemensplc.com is sourced through verified industrial distribution channels and arrives in original OEM packaging with factory documentation intact. Prior to dispatch from our Xiamen, China warehouse, each unit undergoes a structured pre-shipment inspection protocol:

• Visual inspection of probe tip, housing, and connector against OEM cosmetic acceptance criteria
• Continuity check on the coil winding and shield conductor
• Insulation resistance verification between signal conductor and housing (≥100 MΩ at 500 VDC)
• Sensitivity spot-check using a calibrated AISI 4140 target fixture at the nominal 1.0 mm gap point
• Confirmation of original manufacturer serial number and date code against shipping documentation
• Traceability records retained for a minimum of 5 years

Shipments are dispatched from Xiamen, China via DHL Express, FedEx International Priority, or UPS Worldwide Express, with typical transit times of 3–5 business days to major industrial hubs in Southeast Asia, the Middle East, and Europe. Air freight documentation includes commercial invoice, packing list, and certificate of origin. For orders requiring CITES, REACH, or RoHS compliance documentation, these are prepared upon request at no additional charge.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with a replacement-first policy: a replacement unit is dispatched before the defective unit is returned, minimizing machine downtime.
