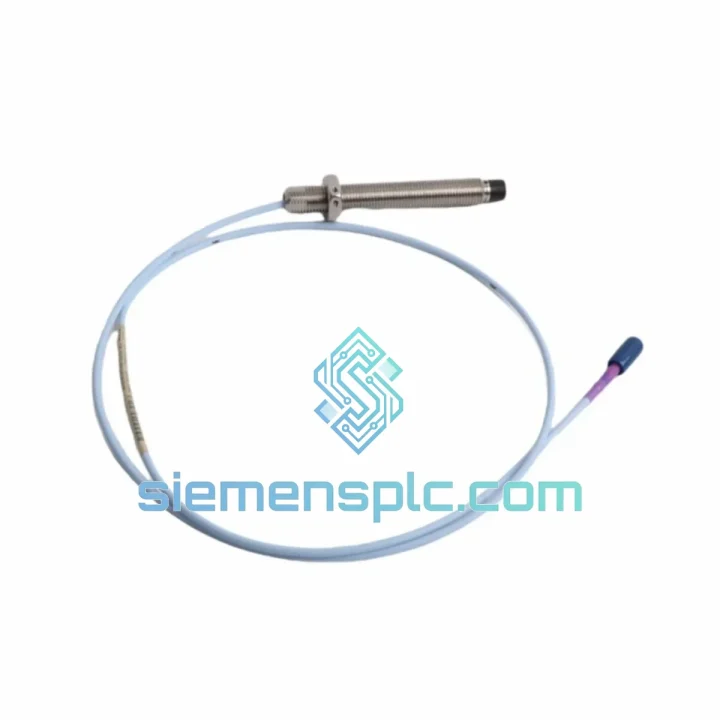

Bently Nevada 330703-000-100-10-11-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330703-000-100-10-11-00 — 11mm Eddy-Current Proximity Transducer in the 3300 XL Control Architecture

In a rotating machinery protection loop, the proximity transducer is the first physical node in the signal chain. Its output voltage — a DC-biased, AC-modulated analog signal proportional to the gap between probe tip and target shaft — feeds directly into the proximitor driver, which conditions and scales the signal before it reaches the monitor rack. Any degradation at this first node propagates uncorrected through the entire measurement chain. The Bently Nevada 330703-000-100-10-11-00 is an 11mm eddy-current proximity transducer engineered for the 3300 XL Proximity Transducer System, designed to maintain measurement integrity across the full operating envelope of critical turbomachinery — from cold commissioning at -35°C to sustained high-temperature service at +177°C probe tip.

The 11mm probe format occupies a specific niche within the 3300 XL product matrix. Compared to the 8mm variant, the larger coil diameter produces a wider electromagnetic field cone, which increases the effective linear measurement range and reduces sensitivity to minor shaft surface irregularities such as machining marks or minor runout. This makes the 330703-000-100-10-11-00 the preferred selection for large-bore turbine shafts and compressor rotors where shaft diameter exceeds 50mm and where API 670 Table 1 gap voltage requirements must be met with tighter uncertainty budgets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330703-000-100-10-11-00 operates on the principle of electromagnetic induction. The probe body houses a precision-wound coil embedded in a ferrite core, driven by a high-frequency oscillator within the matched proximitor driver — typically at 1.0 MHz carrier frequency for the 3300 XL 11mm configuration. When the probe tip approaches a conductive target, eddy currents are induced on the target surface, loading the oscillator circuit and reducing coil impedance. This impedance change is demodulated and linearized by the driver to produce the calibrated DC output voltage.

EMC Design: The armored integral cable serves a dual function. Mechanically, the stainless-steel braid protects the coaxial signal conductor from abrasion, oil ingress, and vibration fatigue at the probe body junction — a common failure point in lesser designs. Electrically, the braid acts as a Faraday shield, attenuating capacitively coupled interference from adjacent power cables and motor drives. In installations where variable-frequency drives (VFDs) operate in proximity to the transducer cable run, this shielding is not optional — it is the primary defense against common-mode noise injection into the measurement signal.

Thermal Stability: The probe coil assembly uses a thermally compensated winding geometry. The coil former material and winding tension are selected to maintain consistent inductance across the -35°C to +177°C operating range. Without this compensation, thermal expansion of the coil former would shift the effective scale factor, introducing a temperature-dependent measurement error that would be indistinguishable from actual shaft movement at the monitor level.

Target Surface Interaction: The 11mm coil diameter produces a sensing field that penetrates approximately 3mm into the target shaft surface. This means the measurement is sensitive to the bulk electrical conductivity and magnetic permeability of the shaft material, not just its surface condition. API 670 Annex D specifies target material requirements precisely because variations in shaft alloy composition — particularly residual magnetism in 4140 steel — directly affect the scale factor. Shafts with residual magnetism exceeding 5 gauss require demagnetization before calibration to avoid a systematic offset error in the gap voltage output.

Cable System Impedance Matching: The 3300 XL system is calibrated as a three-component set: probe, extension cable, and driver. The total cable capacitance between probe and driver must fall within the specified range for the driver’s oscillator to maintain stable operation. The 330703-000-100-10-11-00 with its 1.0 m integral cable is designed to be paired with extension cables from the 330130 series up to a maximum combined length that keeps total capacitance within the driver’s operating window. Substituting non-OEM extension cables with different dielectric constants will shift the oscillator operating point and degrade linearity — a failure mode that is difficult to detect without a full system calibration check.

System Integration Benefits

• Drop-in replacement compatibility: The 330703-000-100-10-11-00 is dimensionally and electrically identical to previous 3300 XL 11mm probe variants. Replacement does not require driver recalibration when the extension cable is also retained, reducing planned maintenance window duration.
• Deterministic signal latency: The analog output of the proximity transducer introduces zero processing latency between physical shaft displacement and the voltage signal at the driver output. This is a fundamental advantage over digital sensor architectures in machinery protection applications where trip response time is measured in milliseconds.
• Diagnostic transparency via gap voltage monitoring: The DC component of the driver output directly encodes the static probe-to-shaft gap. Monitoring this DC level over time provides a continuous, non-intrusive indicator of probe fouling, shaft wear, or mounting bracket creep — without requiring a separate diagnostic sensor.
• Broad monitor compatibility: The 3300 XL transducer system is signal-compatible with both the 3300 Series and 3500 Series monitor racks. This backward compatibility protects capital investment when upgrading the monitor infrastructure while retaining existing field-mounted transducers.
• API 670 compliance path: The 330703-000-100-10-11-00 is designed to meet the transducer performance requirements of API 670 Fifth Edition, including scale factor tolerance, frequency response, and temperature range. This simplifies the compliance documentation burden for new installations in regulated industries.
• Reduced false-trip risk: The wide linear range (0.25–2.54 mm) provides adequate measurement headroom above and below the normal operating gap, reducing the probability of a nuisance trip caused by transient shaft excursions during startup or load transients.
• Long MTBF in harsh environments: Solid-state construction with no moving parts, combined with the armored cable and sealed probe body, yields a mean time between failures exceeding 100,000 hours in typical petrochemical plant environments — based on published Bently Nevada reliability data for the 3300 XL series.
• Simplified spare parts management: A single 11mm probe part number covers a wide range of shaft diameters and installation geometries, reducing the number of unique SKUs that a maintenance department must stock to support a mixed fleet of turbomachinery.

Quality Assurance & Global Logistics

Every unit of the 330703-000-100-10-11-00 supplied by siemensplc.com is sourced as new, genuine Bently Nevada (Baker Hughes) product. Our procurement process traces each unit to its supply origin, and physical inspection covers label integrity, connector pin condition, cable jacket continuity, and probe tip surface condition. Units that do not pass inspection are quarantined and not listed for sale.

Shipments originate from our Xiamen operations center, located within the Xiamen Free Trade Zone — one of China’s primary international logistics hubs with direct access to Xiamen Gaoqi International Airport and Xiamen Port. This geographic position enables same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide for urgent orders. Transit times to major industrial centers are typically 2–4 business days to Europe, 3–5 days to North America, and 1–3 days to Southeast Asia.

Export documentation is prepared in compliance with Chinese customs regulations and destination country import requirements. Standard documentation includes commercial invoice, packing list, and certificate of origin. For orders requiring third-party inspection (SGS, Bureau Veritas), coordination can be arranged prior to dispatch. All units ship under a 12-month warranty covering defects in materials and workmanship from the date of shipment. Multi-currency payment is supported: USD, EUR, CNY, and HKD via T/T bank transfer, with PayPal available for smaller orders.
