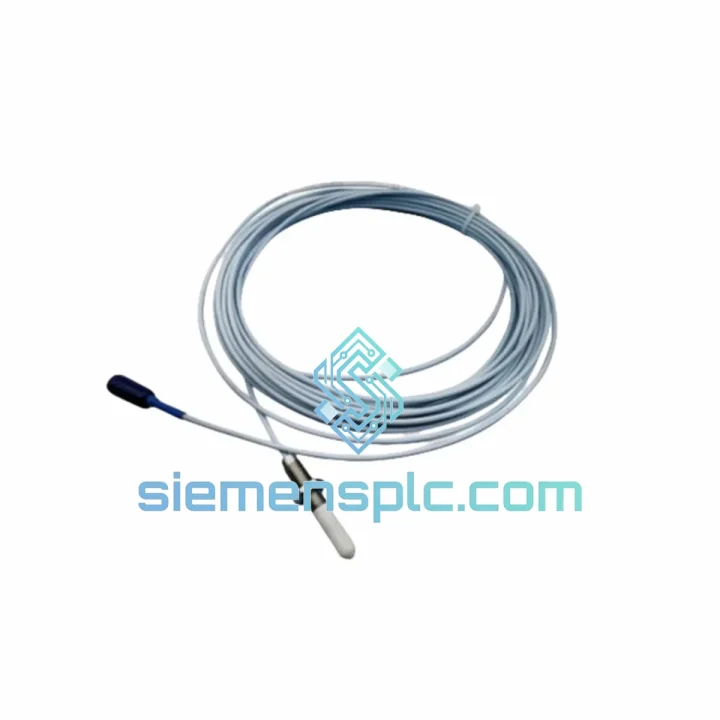

Bently Nevada 330703-000-178-10-02-00 Proximity Probe – 3300 XL Series

Bently Nevada 330703-000-178-10-02-00: 8 mm Eddy-Current Proximity Probe in the 3300 XL Transducer System

The Bently Nevada 330703-000-178-10-02-00 is a factory-calibrated, 8 mm eddy-current proximity probe forming part of the 3300 XL Proximity Transducer System. It is engineered for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion on rotating machinery operating under API 670 machinery protection requirements. The probe assembly ships with a 4.5 m (178 in) integral cable terminated in a 10-32 UNF coaxial connector, matched to the 330130-series extension cable and 330180/330190-series driver oscillators.

Unlike general-purpose inductive sensors, the 330703-000-178-10-02-00 is characterized by a tightly controlled sensitivity of 7.87 V/mm (200 mV/mil) and a linear measurement range of 0.25 – 2.54 mm (10 – 100 mil). These parameters are factory-verified against AISI 4140 steel targets and documented in the accompanying Certificate of Conformance. The probe operates from a nominal −24 VDC supply and presents a 100 Ω output impedance, ensuring signal integrity across the full cable run to the monitor rack.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330703-000-178-10-02-00 operates on the principle of high-frequency eddy-current induction. The probe tip houses a wound coil driven by the paired 330180/330190 oscillator-demodulator at a carrier frequency in the range of 500 kHz to 2 MHz, depending on driver revision. When the conductive target (shaft) enters the probe’s electromagnetic field, eddy currents are induced on the target surface, loading the coil and reducing its effective inductance. The driver circuit converts this inductance shift into a DC voltage output proportional to the gap distance — a fundamentally linear relationship within the calibrated range.

EMC and Shielding Architecture: The integral cable is a triaxial construction: the inner conductor carries the RF oscillation signal, the inner shield provides the driven guard (at the same potential as the center conductor, eliminating cable capacitance from the measurement loop), and the outer shield provides ground reference and EMI rejection. This driven-guard topology suppresses capacitive coupling errors that would otherwise appear as false gap readings in high-voltage switchgear environments or near variable-frequency drives (VFDs). The result is a cable-length-independent sensitivity figure — a critical property when the 4.5 m cable run is routed through cable trays shared with power conductors.

Thermal Stability: The probe body is machined from 316 stainless steel with a ceramic-filled epoxy potting compound encapsulating the coil assembly. This construction limits thermal coefficient of sensitivity to less than ±0.01%/°C across the −35 °C to +177 °C operating envelope, ensuring that bearing clearance readings remain accurate during cold-start transients and sustained high-temperature operation on steam turbines.

Target Material Sensitivity Correction: The 330703 series is factory-calibrated against AISI 4140 steel. For shafts manufactured from 17-4 PH stainless, Inconel 718, or titanium alloys, the effective sensitivity deviates from the nominal 7.87 V/mm. Bently Nevada publishes material correction factors in TIL-075; these must be applied in the System 1 configuration database to maintain measurement accuracy within ±1% of full scale.

Connector and Cable Integrity: The 10-32 UNF coaxial connector is gold-plated to prevent oxidation-induced contact resistance drift. The cable jacket is rated for continuous immersion in turbine lube oil and is compatible with common industrial cleaning solvents. Bend radius at the probe exit is reinforced with a stainless steel strain-relief boot, preventing cable fatigue at the highest-stress point in the assembly.

System Integration Benefits

• Direct rack compatibility: The 330703-000-178-10-02-00 is electrically and mechanically matched to the Bently Nevada 3500 Series monitor rack (3500/40M, 3500/42M, 3500/45, 3500/46M) without any adapter or recalibration. The monitor firmware recognizes the probe’s sensitivity constant from the system configuration file, eliminating manual scaling errors during commissioning.
• System 1 software integration: Probe gap voltage is mapped directly to engineering-unit displacement (µm or mil) within System 1 Evolution and System 1 Optimizer+. Alarm setpoints, danger thresholds, and trend buffers are all configured in physical units, not raw voltage, reducing operator interpretation errors during alarm response.
• API 670 compliance: The probe assembly meets the transducer performance requirements of API Standard 670 (5th Edition) for radial vibration, axial position, and eccentricity channels. This simplifies machinery protection system documentation for new installations and replacement audits in regulated industries.
• Deterministic signal latency: The eddy-current measurement chain from probe tip to monitor output introduces less than 1 ms of signal latency at standard monitor update rates. This deterministic response is essential for overspeed protection logic and emergency shutdown (ESD) systems where trip response time is contractually specified.
• Diagnostic transparency: The 3300 XL driver provides a DC gap voltage output accessible at the monitor terminal strip. Maintenance technicians can verify probe-to-shaft gap without interrupting the measurement channel, using a calibrated voltmeter against the 7.87 V/mm sensitivity constant — a direct, instrument-independent diagnostic method.
• Redundant channel support: Two 330703-000-178-10-02-00 probes mounted at 90° (X-Y configuration) per bearing journal provide full orbital analysis capability. The 3500 rack’s dual-channel input cards process both signals simultaneously, enabling Keyphasor-referenced orbit plots and 1X/2X vector decomposition in System 1 without additional signal conditioning hardware.
• Hazardous area deployment: ATEX and IECEx certifications allow installation in Zone 1 and Zone 2 classified areas (gas groups IIA, IIB) when paired with a certified Zener barrier or galvanic isolator. The probe’s low power consumption (typically <50 mW at the probe tip) keeps the intrinsic safety energy budget well within barrier ratings.
• Long-term spare parts alignment: The 330703 series has maintained dimensional and electrical backward compatibility across multiple product generations. A 330703-000-178-10-02-00 purchased today installs directly into a mounting boss drilled for the original 3300 Series probe, protecting the capital investment in existing machinery infrastructure.

Quality Assurance & Global Logistics

Every Bently Nevada 330703-000-178-10-02-00 unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels and undergoes a structured incoming inspection protocol before entering stock. Inspection includes visual examination of the probe tip, cable jacket, and connector; continuity and insulation resistance verification of the coaxial cable; and gap-voltage output confirmation against the 7.87 V/mm sensitivity constant using a calibrated reference driver.

Each shipment is accompanied by the original manufacturer’s documentation package, including the Certificate of Conformance, product datasheet, and — where available — the factory test record. Units are stored in anti-static, humidity-controlled packaging to prevent coil oxidation and connector contamination during transit.

Logistics from Xiamen cover all major industrial markets: standard DHL/FedEx/UPS express services deliver to North America and Europe within 3–5 business days; Southeast Asia and Middle East destinations typically receive within 2–4 business days. For time-critical plant shutdowns, same-day dispatch is available on confirmed in-stock units when orders are placed before 14:00 CST. All export documentation — commercial invoice, packing list, and HS code classification — is prepared in compliance with Chinese customs regulations and destination-country import requirements.

A 12-month warranty covers all new OEM units against manufacturing defects in materials and workmanship, measured from the date of shipment. Warranty claims are processed with replacement dispatch within 5 business days upon receipt of the defective unit and supporting documentation.
