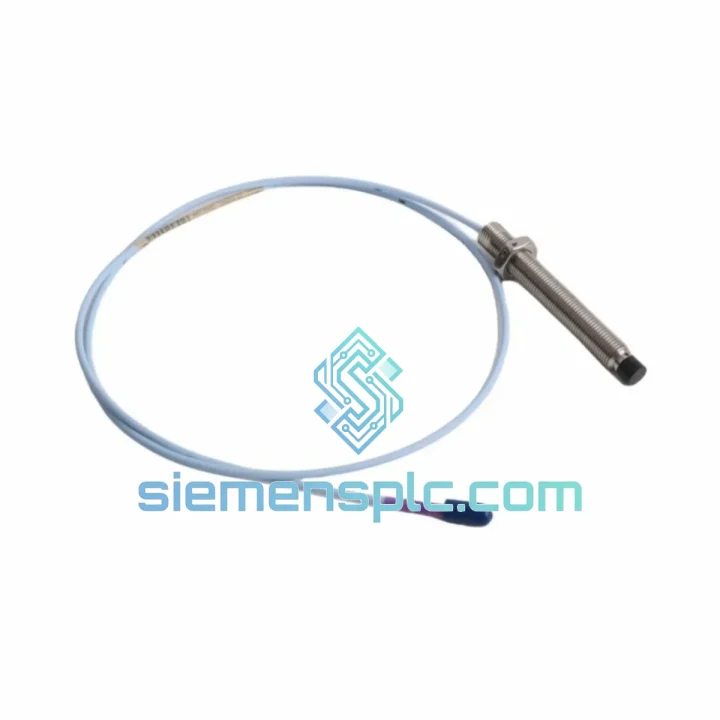

Bently Nevada 330704-00-60-10-02-CN Proximity Transducer

330704-00-60-10-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money. When your Bently Nevada 3300 XL proximity transducer throws a fault or physically fails, you don’t have time for a three-week lead time from the OEM. We stock the 330704-00-60-10-02-CN in Xiamen and can have it on a DHL or FedEx flight within 24 hours of order confirmation. One call, one part, back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting and Replacement Tips

After ten years of field work on rotating machinery, these are the failure patterns and swap pitfalls that catch engineers off guard with the 330704-00-60-10-02-CN.

1. Gap Voltage Drift — The Silent Killer
The most common field complaint is a slow drift in the -24 VDC bias output, usually caused by cable jacket degradation near the bearing housing where temperatures cycle repeatedly. Before condemning the probe, measure the gap voltage at the Proximitor output terminals with the shaft stationary. Nominal gap for a 1.0 mm air gap should read approximately -10.4 VDC. If you are seeing anything outside -9.5 to -11.0 VDC at that gap, the probe or extension cable is suspect — not the monitor card.

2. CN Connector Mismatch
The CN suffix is purely a connector housing variant for the Chinese market. Electrically it is identical to the standard 00-suffix unit. However, if you are swapping in a standard-suffix probe onto a CN-wired junction box, you will need a CN-to-standard adapter or a field re-termination. Skipping this step is the number-one cause of new probe, same fault callbacks.

3. Extension Cable Shield Grounding
The 3300 XL system uses a coaxial signal path. When field-splicing or replacing only the extension cable, verify that the shield is grounded at the Proximitor end only — grounding at both ends introduces a ground loop that manifests as a 50/60 Hz noise spike on the vibration channel. This will trigger false high-vibration trips and is notoriously difficult to diagnose without a spectrum analyzer.

4. Proximitor Driver Scale Factor
If you are replacing a probe on a 3500 series rack, confirm the Proximitor driver scale factor setting in System 1 or the rack configuration software. The 11 mm probe uses a sensitivity of 7.87 V/mm (200 mV/mil). A mismatch — for example if a previous technician had configured the channel for an 8 mm probe — will give you a reading that looks plausible but is off by roughly 20%, enough to miss an early bearing fault entirely.

5. Replacement Procedure Checklist

• De-energize the Proximitor driver at the rack before disconnecting the probe — hot-swapping can damage the driver input stage.
• Record the existing gap voltage and physical gap measurement before removal.
• Install the new 330704-00-60-10-02-CN and set the physical gap to match the previous reading plus or minus 0.05 mm.
• Power up the Proximitor and verify gap voltage is within the linear range specified on the calibration certificate shipped with the unit.
• Perform a slow-roll check at less than 600 RPM to confirm runout is within acceptable limits before bringing the machine to operating speed.
• Log the new probe serial number and calibration certificate number in your CMMS for traceability.

Common Fault Codes on 3500 Racks

• OK LED off / Not OK relay energized: Gap voltage outside -2 VDC to -18 VDC window. Check physical gap and cable continuity first.
• Channel bypassed automatically: Rack has detected a transducer fault. Inspect connector seating at the junction box — the CN connector is prone to fretting corrosion in high-vibration environments.
• Intermittent high-vibration alarms at 1x running speed: Usually electrical runout, not a real vibration event. Perform a slow-roll subtraction in System 1 to compensate.

Reliability in Harsh Conditions

The 330704-00-60-10-02-CN is built for environments that would destroy consumer-grade electronics in days. The probe body is machined from 316 stainless steel with a PEEK tip insert, giving it genuine resistance to the hydrocarbon fluids, steam condensate, and aggressive cleaning agents common in petrochemical and power generation plants.

The armored extension cable uses a stainless-steel braid over a PTFE-insulated coaxial core. In practice, this means the cable survives the constant micro-vibration transmitted through bearing housings without the conductor fatigue failures that plague standard RG-type coax. Installations running continuously for 12 or more years in gas turbine bearing pedestals without a single cable replacement are not unusual with this design.

Thermal cycling is where many third-party alternatives fail. The 3300 XL probe is rated to +121 C at the tip — critical for steam turbine applications where bearing housing temperatures can spike during load transients. The CN connector housing is rated to the same thermal envelope, so there is no weak link at the junction box.

Vibration immunity is validated per IEC 60068-2-6. The probe assembly has been tested to 15 g swept-sine from 10 to 2,000 Hz. In field terms, this means it will not self-generate false vibration signals even when mounted on a machine with a known structural resonance in that frequency band. For offshore and coastal installations, the stainless construction and sealed connector provide IP67 ingress protection against salt fog, humidity cycling, and condensation.

Global Express Logistics

Our Xiamen warehouse is positioned specifically to serve Asia-Pacific, Middle East, and European industrial customers with the fastest possible transit times. Here is how a typical urgent order moves.

• Order confirmed before 14:00 CST: Same-day pick, pack, and handoff to DHL Express or FedEx International Priority.
• DHL Express transit times: Southeast Asia 1-2 days; Middle East 2-3 days; Europe 3-4 days; North America 4-5 days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage, particularly in the Americas and parts of Africa.
• Documentation package: Commercial invoice, packing list, certificate of origin, and calibration certificate are prepared simultaneously with packing — no delays waiting for paperwork.
• HS Code: 9031.80 — pre-cleared for most destinations. For ATEX-certified variants, we include the relevant conformity declaration to expedite customs clearance in EU member states.
• Real-time tracking: AWB number sent via email and WhatsApp within 2 hours of carrier pickup.
• Bulk and plant turnaround orders: For quantities of 5 or more units, contact us for consolidated shipment options and volume pricing. We regularly support MRO procurement teams during planned outages where multiple transducer channels need simultaneous replacement.

When you are calling us, a machine is probably already down or you are racing to prevent it from going down. Speed is not a marketing claim — it is the only thing that matters in that moment, and our entire logistics process is built around it.
