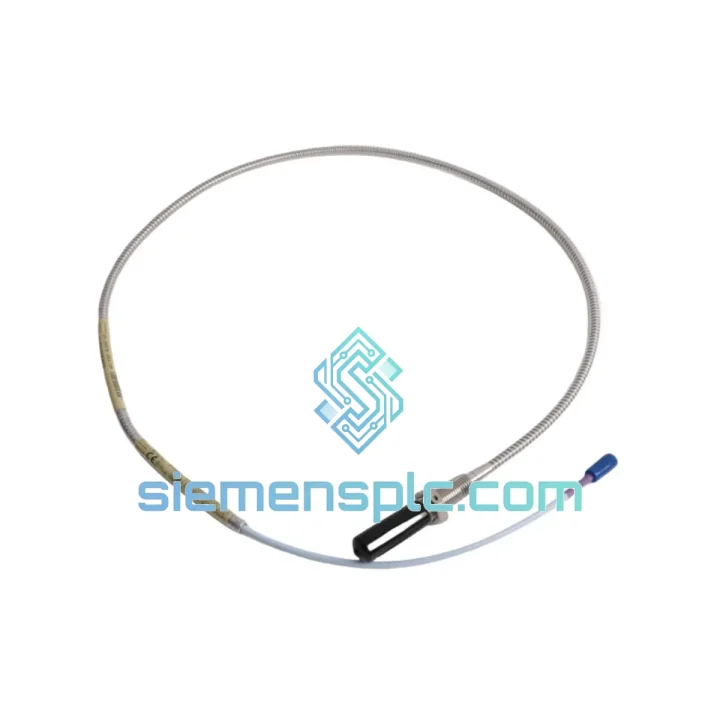

Bently Nevada 330704-000-026-50-02-CN Proximity Probe

330704-000-026-50-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money — lost throughput, penalty clauses, emergency labor. When your 3300 XL proximity loop goes dark and the DCS throws a NOT OK alarm, you don’t have time for a three-week lead time. The Bently Nevada 330704-000-026-50-02-CN is on our shelf in Xiamen right now. We’ve handled enough midnight callouts to know that “in transit” is not the same as “in hand.” Order before 18:00 CST and it moves today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, these are the failure patterns and swap pitfalls that catch engineers off guard with the 330704-000-026-50-02-CN:

1. Confirm the NOT OK source before pulling the probe. A NOT OK condition on the 3300/16 or 3500/42M monitor can originate from three places: the probe itself, the extension cable, or the proximitor driver. Before condemning the probe, disconnect the extension cable at the driver end and measure coil resistance directly at the probe connector. A healthy 11 mm probe reads approximately 7–9 Ω. Open circuit or dead short points to probe failure; resistance in spec with a NOT OK signal usually means the driver or cable is the culprit.

2. Gap voltage is your first check after installation. With the new probe installed and the shaft stationary, the proximitor output should read between −10 VDC and −18 VDC at the nominal 1.0 mm air gap. If you’re outside that window, adjust the probe tip-to-shaft gap in 0.1 mm increments. The 3300 XL system is unforgiving of gap errors — a probe sitting 0.5 mm too close will clip the waveform and generate false high-vibration trips.

3. The -02-CN connector is not interchangeable with -01-00 in the field. The CN suffix denotes a Chinese-standard mating connector. If your extension cable terminates in an international-standard plug, you will need a CN-to-standard adapter or a replacement extension cable (330130-080-00-CN). Forcing mismatched connectors is the single most common cause of intermittent signal loss on retrofit projects — we’ve seen it more times than we’d like to admit.

4. Extension cable length affects system calibration. The 330704 probe is factory-matched to a specific total cable length (probe + extension = system length). The standard system is 5 m probe + 5 m extension = 10 m total. If you substitute a different extension length, the proximitor’s internal calibration shifts and sensitivity will be off. Always verify the total system length matches the proximitor’s configuration label before closing the junction box.

5. Common fault codes and what they actually mean:

• NOT OK (solid): Gap out of range, open coil, or driver power loss. Start with gap voltage measurement.
• NOT OK (intermittent): Connector corrosion or cable damage — flex the cable along its run while watching the monitor. The fault will flicker at the damaged section.
• High vibration alarm with clean waveform: Probe is too close to shaft. Back out 0.1 mm and re-gap.
• High vibration alarm with noisy waveform: Electrical interference — check cable shield continuity and grounding at the proximitor end only (single-point ground).
• Drift on DC gap channel: Thermal expansion of probe mounting bracket. Re-gap at operating temperature, not cold.

Reliability in Harsh Conditions

The 3300 XL series was designed for environments that destroy lesser sensors. The 330704-000-026-50-02-CN carries an operating temperature ceiling of +177 °C — sufficient for bearing pedestal installations on high-pressure steam turbines where ambient temperatures routinely exceed 120 °C. The probe body is constructed from 316 stainless steel with a PEEK tip insert, providing resistance to the oil mist, condensate, and process gas atmospheres common in compressor trains.

Vibration immunity is built into the coil winding geometry. The eddy-current sensing element is potted in a thermally stable epoxy compound that maintains dimensional stability under continuous mechanical vibration up to 20 g RMS — a figure that covers virtually all turbomachinery bearing housing environments. We’ve supplied these probes to petrochemical plants in the Middle East running 24/7 at ambient temperatures above 50 °C with no field failures attributable to the probe itself over multi-year service intervals.

The CN connector variant adds a layer of environmental protection specifically relevant to Chinese industrial installations: the connector body is rated IP67 when mated, preventing moisture ingress in the high-humidity coastal and southern China plant environments where corrosion-related failures are disproportionately common.

Global Express Logistics

Our Xiamen warehouse sits 40 minutes from Xiamen Gaoqi International Airport, one of South China’s primary air cargo hubs with direct freight connections to Frankfurt, Dubai, Chicago O’Hare, and Singapore Changi. That geography is deliberate — it means your part moves fast regardless of destination.

Standard express routing (DHL / FedEx Priority):

• Mainland China: SF Express next-day delivery to major cities; 2-day to remote provinces.
• Southeast Asia (SG, MY, TH, VN, ID): DHL Express 2–3 business days door-to-door.
• Middle East (AE, SA, QA, KW): FedEx International Priority 3–4 business days.
• Europe (DE, NL, FR, GB, IT): DHL Express 3–5 business days; customs pre-clearance documentation provided.
• North America (US, CA, MX): FedEx Priority 4–5 business days; HS code 9031.80 declared for smooth customs clearance.
• Australia / New Zealand: DHL Express 4–5 business days.

Every shipment includes a commercial invoice, packing list, and certificate of origin. For orders requiring CITES, EAR, or end-user declaration documentation, notify us at order placement and we will prepare the paperwork in parallel with packing — no delays. Track your shipment in real time via the AWB number we send within 2 hours of dispatch.

For plant shutdowns with hard restart deadlines, contact us on WhatsApp before placing the order. We will confirm stock, cut-off time, and estimated delivery window in writing so you can commit to your maintenance schedule with confidence.
