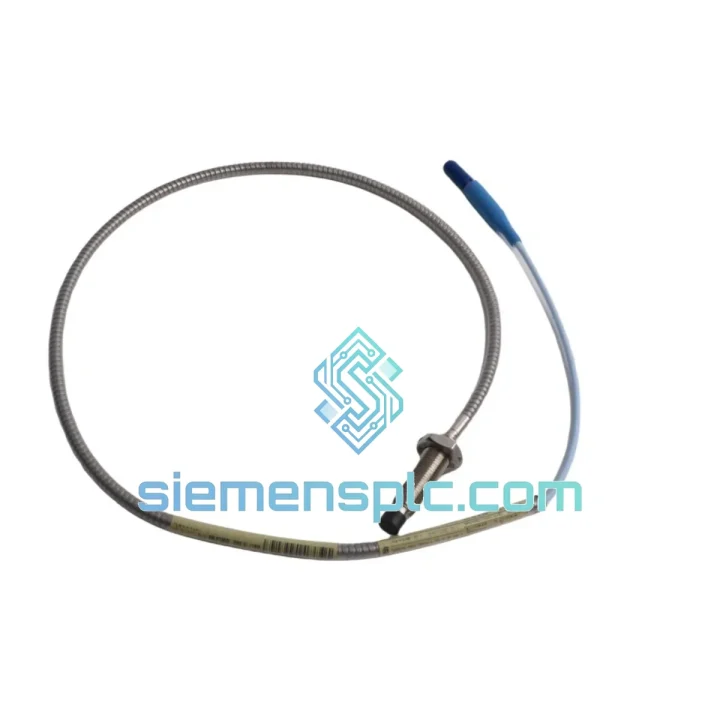

Bently Nevada 330704-000-050-10-01-CN Proximity Probe – 3300 XL

Bently Nevada 330704-000-050-10-01-CN — 3300 XL 11 mm Eddy-Current Proximity Probe: Role in Rotating Machinery Protection

The Bently Nevada 330704-000-050-10-01-CN is an 11 mm eddy-current proximity probe belonging to the 3300 XL Series — a platform that has defined the measurement standard for turbomachinery shaft monitoring across petrochemical, power generation, and LNG sectors for decades. This specific variant carries a 5.0 m integral cable assembly (encoded as “-050” in the part number), a 10-32 UNF connector, and a CN-suffix designation indicating CE-marked compliance for the China market, while remaining electrically and mechanically identical to the international standard version.

Within a rotating machinery protection loop, the 330704-000-050-10-01-CN occupies the sensing layer of a three-component measurement chain: probe → extension cable → driver/proximitor. The probe generates a high-frequency oscillating electromagnetic field (typically 1.0 MHz) from its tip coil. When a conductive target surface — such as a shaft journal — enters the field, eddy currents are induced on the target surface, loading the oscillator circuit. The driver converts this impedance change into a DC voltage output linearly proportional to the air gap between probe tip and target. At nominal sensitivity of 7.87 V/mm (200 mV/mil), the system resolves gap changes to sub-micron levels, enabling detection of shaft radial vibration, axial position drift, and differential expansion — all critical parameters for API 670-compliant machinery protection.

The 11 mm tip diameter provides a linear measurement range of 0.25 mm to 2.54 mm (10 to 100 mil), making it the preferred choice for medium-to-large shaft diameters where the 8 mm probe (330703 series) would exhibit reduced sensitivity due to field geometry constraints. The probe operates across a temperature envelope of −35°C to +177°C, covering the full range of bearing housing and seal cavity environments encountered in steam turbines, centrifugal compressors, and expanders.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330704-000-050-10-01-CN is engineered around a passive LC resonant circuit embedded in the probe tip. The coil geometry — wound to precise inductance tolerances — is encapsulated in a thermally stable polymer housing that maintains dimensional integrity across the full operating temperature range. This encapsulation strategy eliminates coil-form deformation under thermal cycling, a failure mode that degrades sensitivity linearity in lower-grade sensors.

EMC Design: The integral cable is a coaxial construction with a continuous shield braid referenced to the driver ground plane. This architecture suppresses capacitively coupled noise from adjacent power cables and variable-frequency drives — a common interference source in compressor trains where VFD-driven auxiliaries operate in close proximity to the measurement chain. The shield continuity from probe tip to driver input maintains a single-point ground reference, preventing ground loop currents that would manifest as low-frequency noise on the gap voltage output.

Thermal Compensation: The driver/proximitor paired with this probe (e.g., 330180-X1-CN) applies a temperature compensation algorithm calibrated specifically to the 11 mm probe coil’s thermal coefficient of inductance. This compensation maintains sensitivity accuracy within ±0.5% across the full temperature range — a specification that generic replacement probes frequently cannot meet without re-characterization of the driver compensation table.

Mechanical Robustness: The probe body is machined from 316 stainless steel with a thread form of 3/8-24 UNF, providing corrosion resistance in environments with process gas ingress or condensate exposure. The tip face is flush-ground to a flatness tolerance that ensures the electromagnetic field geometry matches the factory calibration model — a detail that directly affects the linearity of the gap-to-voltage transfer function at the extremes of the measurement range.

Calibration Traceability: Each probe ships with a factory calibration certificate traceable to NIST standards. The calibration data — sensitivity, linear range endpoints, and temperature coefficients — is recorded against the probe’s serial number and is required for API 670 machinery protection system documentation packages.

System Integration Benefits

• Deterministic gap-voltage linearity: The 7.87 V/mm sensitivity is factory-verified across the full 0.25–2.54 mm linear range, ensuring that the monitor’s alarm and danger setpoints map accurately to physical shaft displacement without field recalibration after installation.
• Plug-compatible with 3300 XL driver ecosystem: The probe interfaces directly with 330180-X1-CN, 330130-040-00-00, and other 3300 XL driver modules without impedance matching adapters, preserving the factory-calibrated measurement chain integrity.
• API 670 compliance support: The probe’s NIST-traceable calibration certificate and CE/ATEX approvals satisfy the documentation requirements of API 670 (5th edition) machinery protection system audits, reducing commissioning overhead.
• Reduced diagnostic ambiguity: The integral cable eliminates the extension cable connector as a potential failure point — a common source of intermittent signal faults in installations where extension cables are field-assembled with non-OEM connectors.
• Compatibility with System 1 software: When paired with a 3500-series monitor, the probe’s output feeds directly into Bently Nevada System 1 Evolution for trend analysis, alarm management, and predictive maintenance workflows without signal conditioning modifications.
• Wide temperature operating margin: The −35°C to +177°C envelope covers both cold-start conditions in outdoor installations and sustained high-temperature operation near bearing housings on high-speed steam turbines, without requiring probe replacement at seasonal extremes.
• Low cross-axis sensitivity: The 11 mm coil geometry provides a field depth-to-diameter ratio that minimizes sensitivity to shaft surface irregularities (e.g., keyways, surface finish variations) outside the primary measurement axis, reducing spurious vibration readings.
• Standardized spare parts management: The 330704 series is a globally stocked OEM part number, enabling procurement teams to maintain a single spare part specification across multiple machine trains in a plant, rather than managing site-specific custom sensor variants.

Quality Assurance & Global Logistics

Every Bently Nevada 330704-000-050-10-01-CN unit supplied by siemensplc.com is sourced through verified distribution channels with full traceability documentation. Prior to dispatch, each probe undergoes physical inspection covering connector condition, cable jacket integrity, and coil continuity verification. Factory calibration certificates and original OEM packaging are available upon request and are standard inclusions for orders requiring API 670 documentation packages.

Our inventory is held at our Xiamen, China facility, positioned for efficient export to Southeast Asia, the Middle East, Europe, and the Americas. Standard in-stock orders are processed and dispatched within 1–3 business days. For project-volume orders or time-critical plant shutdowns, expedited air freight options are available with DHL Express, FedEx International Priority, and UPS Worldwide Express — typical transit times of 3–5 business days to most destinations. All shipments are accompanied by commercial invoices, packing lists, and certificates of conformance. Export classification is reviewed for each order to ensure compliance with applicable trade regulations.

A 12-month warranty covers all units against manufacturing defects from the date of shipment. Warranty claims are processed with replacement unit dispatch upon receipt of the defective item and supporting documentation.
