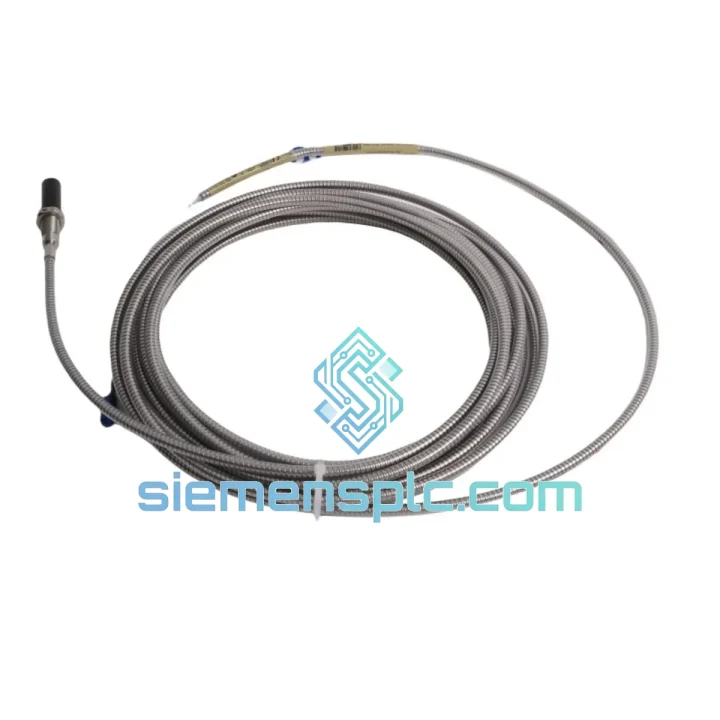

Bently Nevada 330704-000-078-10-01-CN Proximity Probe – 3300 XL Series

Bently Nevada 330704-000-078-10-01-CN — 11mm Eddy-Current Proximity Probe for Critical Rotating Machinery Shaft Monitoring

The Bently Nevada 330704-000-078-10-01-CN is a factory-original 11mm eddy-current proximity probe belonging to the 3300 XL Series — a platform engineered specifically for continuous, non-contact measurement of radial shaft vibration, axial position, and differential expansion in turbomachinery protection systems. Operating on the eddy-current induction principle, the probe generates a high-frequency electromagnetic field (nominally 1.0 MHz) from its tip coil. When a conductive target surface enters the sensing field, induced eddy currents attenuate the oscillator amplitude; this attenuation is linearized by the matched Proximitor® driver into a DC voltage output proportional to the gap distance between probe tip and shaft surface. The 330704-000-078-10-01-CN is calibrated for a nominal sensitivity of 7.87 V/mm (200 mV/mil) across a linear measurement range of 0.25 mm to 2.54 mm (10 to 100 mil), making it suitable for API 670-compliant machinery protection installations where measurement uncertainty must remain below ±0.025 mm across the full operating temperature envelope.

The CN suffix designates the Chinese-standard connector variant, optimized for integration with locally sourced extension cable assemblies and Proximitor® sensors deployed across petrochemical, power generation, and LNG facilities in China and the Asia-Pacific region. The probe body is constructed from 316L stainless steel with a PTFE-jacketed coaxial cable rated to 177°C continuous service temperature, enabling deployment in high-heat environments such as steam turbine bearing pedestals and gas compressor seal housings without signal drift attributable to thermal expansion of the cable dielectric.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330704-000-078-10-01-CN probe tip houses a precision-wound coil embedded in a thermally stable epoxy matrix. The coil geometry is matched to the 3300 XL Proximitor® driver’s internal oscillator circuit, forming a resonant LC tank whose Q-factor varies as a function of target proximity. This matched-system architecture is the fundamental reason why Bently Nevada specifies that probes, extension cables, and drivers must be used as a calibrated set: substituting a non-matched probe introduces a systematic gain error that cannot be corrected by field calibration alone.

EMC Design: The coaxial cable assembly employs a double-shielded construction — an inner braid shield bonded to the probe body ground and an outer foil shield terminated at the Proximitor® housing. This dual-shield topology provides greater than 60 dB of common-mode rejection against radiated interference from variable-frequency drives (VFDs), high-current bus bars, and RF sources common in industrial switchgear rooms. The PTFE dielectric maintains a stable characteristic impedance of 50 Ω across the full temperature range, preventing impedance mismatch reflections that would otherwise introduce standing-wave errors in the DC output at high cable lengths.

Thermal Stability: The probe tip epoxy compound has a coefficient of thermal expansion (CTE) closely matched to the 316L stainless steel housing, suppressing thermally induced mechanical stress on the coil winding at sustained temperatures above 150°C. This is particularly relevant in steam turbine applications where bearing pedestal temperatures can cycle between ambient and 160°C during start-stop sequences, a condition that causes coil delamination failures in lower-grade proximity probes.

Gap Voltage Linearity: The 3300 XL system achieves linearity within ±0.5% of full-scale across the 0.25–2.54 mm range when the probe is used with the matched Proximitor® sensor and AISI 4140 target material. For non-standard target materials (e.g., titanium alloy or Inconel), a material correction factor must be applied; Bently Nevada provides target material correction curves in the 3300 XL system documentation (GEK-91555).

System Integration Benefits

• API 670 Compliance Out-of-Box: The 330704-000-078-10-01-CN meets the transducer performance requirements of API 670 (5th Edition) for radial vibration and axial position channels without additional field calibration, reducing commissioning time on new machinery protection system installations.
• Deterministic Real-Time Response: The eddy-current sensing chain introduces less than 5 µs of signal propagation delay from shaft displacement to Proximitor® output, ensuring that the 3500 Series monitor’s voting logic receives gap data within the deterministic scan cycle — critical for overspeed and high-vibration trip functions where response time is contractually specified.
• Plug-and-Play with 3300 XL Extension Cables: The CN connector mates directly with Bently Nevada 330130 Series extension cables (3300 XL, 11 mm), eliminating field-fabricated cable joints that introduce impedance discontinuities and moisture ingress points.
• Diagnostic Transparency via Gap Voltage Monitoring: The -18 VDC nominal output provides a continuous, measurable gap voltage that maintenance engineers can trend over time to detect probe tip wear, shaft surface degradation, or mounting bracket creep — enabling condition-based maintenance scheduling rather than time-based replacement.
• Wide Temperature Envelope Eliminates Derating: The -35°C to +177°C operating range covers both arctic outdoor installations and high-temperature turbine bearing housings without requiring probe derating or auxiliary cooling, simplifying system design for multi-climate plant portfolios.
• Hazardous Area Suitability: CSA and FM approvals (verify specific approval codes on unit label) allow installation in Zone 1 / Division 1 classified areas when used with appropriate Zener barriers or galvanic isolators, supporting petrochemical and LNG plant requirements without additional ATEX/IECEx certification overhead for North American and Chinese installations.
• Reduced Wiring Infrastructure: The 7.8 m cable length is sized to span the typical distance from a bearing pedestal to a local junction box without splicing, reducing the number of field terminations and associated signal integrity risks in high-vibration environments.
• Seamless 3500 Series Monitor Integration: When connected through the matched Proximitor® sensor, the probe output is directly compatible with Bently Nevada 3500/40M, 3500/42M, and 3500/44M monitor cards, enabling direct channel configuration without custom scaling factors in the monitor’s configuration software (System 1® or Rack Configuration Software).

Quality Assurance & Global Logistics

Every Bently Nevada 330704-000-078-10-01-CN unit supplied by siemensplc.com is sourced through verified supply channels and undergoes a structured pre-shipment inspection protocol at our Xiamen, China operations center. Physical inspection covers label integrity, connector pin condition, cable jacket continuity, and probe tip surface condition against OEM reference standards. Electrical pre-check confirms coil impedance within the 3300 XL system specification window, providing a documented baseline for each unit shipped.

Shipments originate from Xiamen, China with typical dispatch within 2–5 business days for in-stock units. We support DHL Express, FedEx International Priority, and sea freight consolidation for volume orders. Export documentation — commercial invoice, packing list, and certificate of origin — is prepared for each shipment. The applicable HS Code for customs classification is 9031809090 (precision measurement instruments). For project orders requiring consolidated shipments or bonded warehouse staging, contact our logistics team for a tailored freight solution. A 12-month warranty covers all units against manufacturing defects, with replacement or credit issued upon receipt of defective units and supporting documentation.
