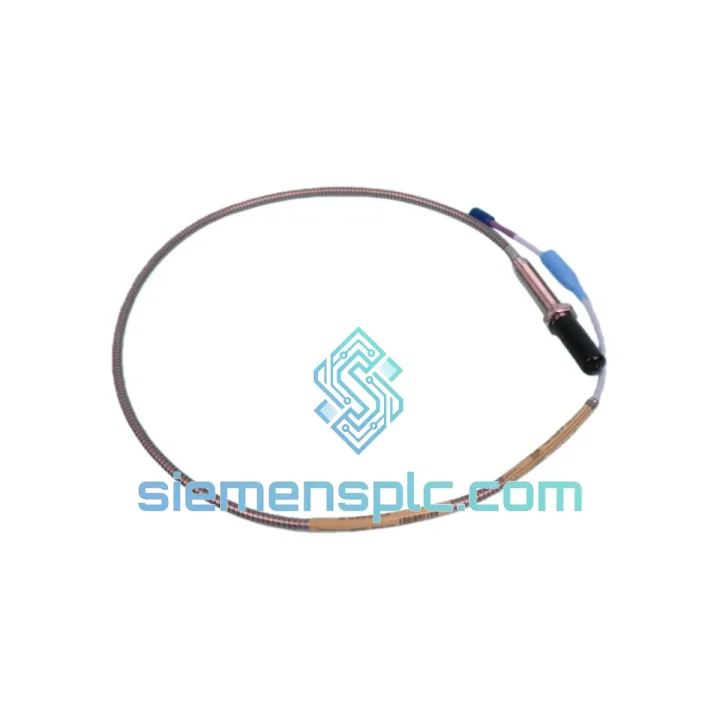

Bently Nevada 330704-000-100-10-01-RU Proximity Probe – 3300 XL

Bently Nevada 330704-000-100-10-01-RU: Eddy-Current Proximity Probe for Continuous Shaft Monitoring in Critical Rotating Machinery

The 330704-000-100-10-01-RU is an 8 mm eddy-current proximity probe manufactured by Bently Nevada (Baker Hughes) as a core sensing element within the 3300 XL Proximity Transducer System. Its primary function in a control loop is to deliver a continuous, non-contact DC voltage signal proportional to the physical gap between the probe tip and the target shaft surface. This analog output — nominally scaled at 7.87 V/mm (200 mV/mil) — feeds directly into vibration monitoring modules such as the Bently Nevada 3500 rack, where it is processed for radial shaft vibration amplitude, shaft centerline position, and dynamic orbit analysis. The -RU suffix designates the Russian Federation compliance variant, incorporating the documentation package required for GOST-aligned import and regulatory audit procedures, while the underlying hardware remains electrically and mechanically identical to the standard 330704-000-100-10-01.

In a closed-loop protection architecture, this probe operates as the primary transducer in a two-element or three-element redundant voting arrangement. Its output is continuously compared against alarm and danger setpoints within the monitoring module. When shaft vibration exceeds the danger threshold — typically 125 µm pk-pk on a steam turbine journal bearing — the monitor issues a relay trip signal to the machine’s safety instrumented system (SIS), initiating a controlled shutdown sequence. The determinism and signal integrity of this probe are therefore not peripheral performance attributes; they are the foundational parameters upon which the entire machinery protection chain depends.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330704-000-100-10-01-RU operates on the principle of high-frequency eddy-current induction. An oscillator circuit within the paired 3300 XL Proximitor® Sensor drives a resonant LC tank circuit, with the probe coil forming the inductive element. When the probe tip approaches a conductive target, eddy currents are induced on the target surface, loading the tank circuit and reducing its oscillation amplitude. The Proximitor® demodulates this amplitude change into a DC voltage output, with the relationship between gap distance and output voltage being linear within the specified 0.25–2.26 mm range.

EMC Design: The coaxial cable construction provides inherent shielding against capacitively coupled interference. The shield is grounded at the Proximitor® end only (single-point grounding), preventing ground loop currents that would introduce 50/60 Hz noise into the measurement signal. In environments with high-frequency switching noise from variable-frequency drives (VFDs), the probe’s operating frequency (typically 1.0–1.5 MHz carrier) is sufficiently separated from VFD switching harmonics to avoid aliasing artifacts in the vibration spectrum.

Thermal Stability: The probe coil is wound on a ceramic bobbin with a low thermal coefficient of inductance. This design limits scale factor drift to less than ±0.5% across the full −35°C to +177°C operating range, which is critical in steam turbine bearing housings where ambient temperatures can vary by 80°C between cold startup and full-load operation.

Mechanical Robustness: The 316 stainless steel housing and epoxy-sealed tip provide resistance to oil mist, steam condensate, and industrial cleaning solvents. The armored cable jacket protects against abrasion in installations where the cable routes through bearing pedestals or along hot pipe runs. The coaxial connector is rated for a minimum of 500 mating cycles, supporting routine maintenance intervals without connector degradation.

Redundancy Arbitration Compatibility: In 2oo3 (two-out-of-three) voting architectures, three probes are mounted at 120° intervals around the shaft. The 3500 monitoring module compares the three gap signals continuously. If one probe fails open-circuit (output saturates to approximately −24 VDC) or short-circuit (output collapses to 0 VDC), the module flags the channel as failed and reverts to 1oo2 voting on the remaining two probes, maintaining protection without a spurious trip. The 330704-000-100-10-01-RU’s well-defined failure modes — predictable saturation voltages at both ends of the measurement range — are a deliberate design feature that enables this fault-tolerant arbitration logic.

System Integration Benefits

• Zero-Wear Sensing Architecture: Non-contact eddy-current measurement eliminates mechanical contact between the transducer and the rotating shaft. There is no tribological wear mechanism, no lubrication requirement, and no periodic replacement interval driven by mechanical fatigue — service life is determined by environmental exposure, not by operational cycles.
• Dual-Mode Signal Output: A single probe simultaneously delivers a dynamic AC component (shaft vibration, filtered above approximately 1 Hz) and a static DC component (shaft centerline position, or gap voltage). This dual-mode output allows the monitoring system to track both vibration severity and bearing wear progression from a single installation point, reducing the number of penetrations required in the bearing housing.
• Deterministic Frequency Response to 10 kHz: The flat frequency response from DC to 10,000 Hz covers the full range of subsynchronous instabilities (oil whirl at 0.43–0.48× running speed), synchronous unbalance (1×), and higher-order harmonics relevant to gear mesh and blade-pass frequencies on directly coupled machinery. No anti-aliasing correction is required within this bandwidth when sampling at standard 3500-series module rates.
• Direct API 670 Compliance: The 3300 XL system, including this probe, is designed to meet the requirements of API Standard 670 (Machinery Protection Systems), the governing specification for vibration monitoring on critical rotating equipment in the oil and gas industry. Procurement engineers can reference this compliance directly in equipment datasheets without additional qualification testing.
• Plug-Compatible Replacement: The 330704-000-100-10-01-RU is dimensionally and electrically identical to earlier 3300 series probes. Replacement requires only probe removal, thread cleaning, reinstallation to the specified gap voltage (typically −10.0 VDC ± 0.5 VDC at mid-range), and gap verification — no Proximitor® recalibration, no monitoring module reconfiguration, and no software parameter changes.
• Diagnostic Transparency via Gap Voltage Trending: The DC bias voltage output provides a continuous, real-time indicator of bearing clearance. As a journal bearing wears, the shaft centerline migrates downward, and the gap voltage on the bottom probe decreases measurably. Trending this value over months of operation allows maintenance engineers to quantify bearing wear rate and schedule replacement before the clearance exceeds the alarm threshold — converting a reactive maintenance event into a planned outage.
• Compatibility with System 1® Condition Monitoring Software: The probe’s output integrates natively with Bently Nevada System 1® software for long-term data archiving, spectral analysis, and machine train modeling. Orbit plots, Bode plots, and polar plots generated from this probe’s data are the standard diagnostic tools used by rotating machinery analysts worldwide for root-cause analysis of vibration anomalies.
• Scalable Redundancy Architecture: A single probe installation can be upgraded to a 2oo2 or 2oo3 redundant configuration by adding probes at the same axial plane without modifying the existing probe mounting. The 3500 monitoring module supports mixed-channel configurations, allowing incremental redundancy upgrades during planned maintenance windows rather than requiring a full system redesign.

Quality Assurance & Global Logistics

Every 330704-000-100-10-01-RU unit dispatched from our Xiamen, China facility is sourced from verified Bently Nevada (Baker Hughes) authorized distribution channels. Each unit undergoes a pre-shipment inspection protocol that includes visual examination of the probe tip for mechanical damage, connector pin integrity check, cable jacket continuity verification, and cross-referencing of the part number label against the purchase documentation to confirm authenticity.

Shipments are packaged in anti-static foam-lined enclosures with rigid outer cartons rated for international air freight handling. For multi-unit orders, individual probes are separated by foam dividers to prevent connector-to-connector contact during transit. The documentation package accompanying each shipment includes the original manufacturer datasheet, a packing list with serial number records, and — for -RU variant orders — the Russian Federation compliance documentation set.

From Xiamen, we dispatch via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–5 business days to Europe, 2–4 business days to Southeast Asia, and 5–7 business days to the Middle East and CIS countries. For urgent plant shutdown situations, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments include full export documentation, commercial invoice, and packing list formatted for customs clearance in the destination country. A 12-month warranty covers manufacturing defects from the date of shipment.
