Bently Nevada 330704-000-100-10-11-CN Proximity Probe – 3300 XL

Bently Nevada 330704-000-100-10-11-CN: Non-Contact Shaft Measurement in High-Speed Rotating Machinery

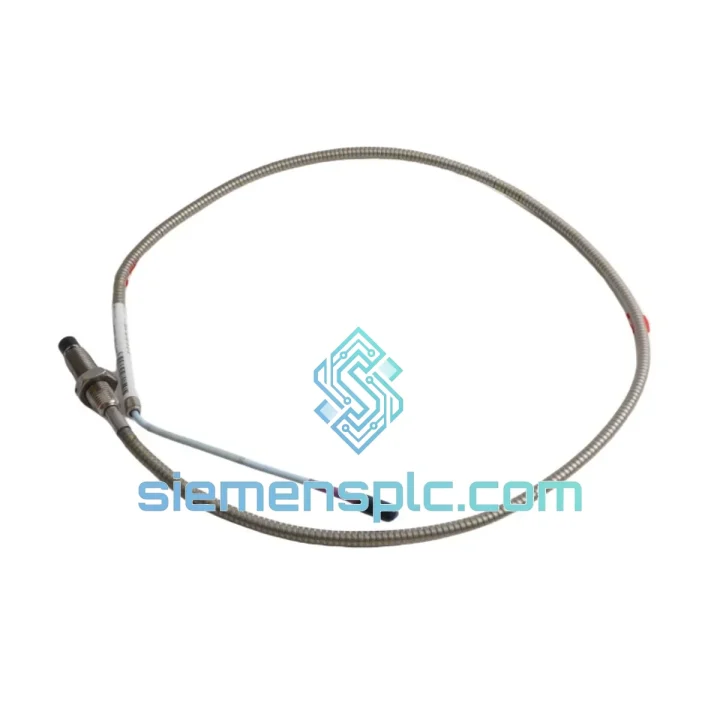

The 330704-000-100-10-11-CN is an 11 mm eddy-current proximity probe within Bently Nevada’s 3300 XL measurement system. Its primary function in a control loop is to deliver a continuous, DC-coupled analog voltage proportional to the gap between the probe tip and a conductive target surface — typically a rotating shaft. This signal feeds directly into vibration monitors, protection relay cards, and condition-monitoring platforms, where it serves as the raw input for radial vibration, shaft centerline position, and differential expansion calculations. Without a calibrated, stable gap signal at this stage, every downstream protection threshold and alarm setpoint becomes unreliable. The 330704-000-100-10-11-CN is therefore not a peripheral accessory; it is the primary transducer that determines the measurement integrity of the entire protection channel.

The -CN suffix designates the Chinese domestic connector variant, engineered to mate directly with terminal blocks and junction boxes wired to Chinese industrial standards, eliminating field-fabricated adapter harnesses that introduce additional impedance and potential failure points. This variant is stocked specifically for domestic Chinese plant installations and ships from Xiamen within 24–48 hours of order confirmation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330704-000-100-10-11-CN operates on the eddy-current induction principle. The probe tip houses a flat coil wound on a ferrite core. The Proximitor sensor drives this coil with a high-frequency oscillator signal — typically in the 1.0 MHz range for the 3300 XL system. When the conductive target surface enters the electromagnetic field, eddy currents are induced in the target, loading the oscillator circuit and reducing coil impedance. The Proximitor demodulates this impedance change into a DC voltage output with a slope of 7.87 V/mm across the calibrated linear range.

The 11 mm tip diameter is a deliberate design parameter. A larger coil diameter produces a wider electromagnetic field cone, which increases the linear range and reduces sensitivity to minor probe-to-shaft angular misalignment — a practical advantage in field installations where perfect orthogonality is difficult to achieve. The trade-off is a slightly larger mounting boss requirement compared to 5 mm or 8 mm variants, but the 11 mm format is the standard for most API 670-compliant turbine and compressor installations where shaft diameters exceed 75 mm.

EMC performance is addressed at the hardware level through the coaxial cable construction: the inner conductor carries the oscillator drive signal, while the outer shield provides both the return path and electrostatic shielding against capacitively coupled interference from adjacent power cables. The hermetically sealed probe tip prevents moisture ingress that would alter the dielectric constant of the coil former and shift the calibration curve — a failure mode common in lower-grade proximity probes operating in steam-turbine environments. The strain-relieved cable-to-probe junction uses a stainless steel armored transition to resist mechanical fatigue from vibration transmitted through the mounting hardware itself, which can reach 50 g peak in some compressor bearing pedestals.

Target material correction is a critical operational consideration. The factory calibration is performed against AISI 4140 steel. For 316 stainless steel shafts, a sensitivity correction factor of approximately 10–15% must be applied; for Inconel or titanium targets, correction factors can reach 30–40%. Bently Nevada publishes target material correction curves in installation manual document 141536-01, and these must be entered into the monitor card’s scale factor register to maintain measurement accuracy.

System Integration Benefits

• Direct 3300 XL / 3500 Series Compatibility: The 330704-000-100-10-11-CN is calibrated to the same sensitivity curve as the Bently Nevada factory specification, allowing drop-in replacement in existing 3300 XL monitor racks without recalibration of the Proximitor or monitor card scale factors.
• Deterministic Real-Time Response: The DC-coupled output with a 10 kHz bandwidth ensures that shaft dynamic events — including sub-synchronous instability, oil whirl, and blade-passing frequencies — are captured without phase lag introduced by AC-coupling filters, preserving the time-domain integrity required for orbit plot analysis.
• API 670 Protection Channel Compliance: When paired with a 3300 XL Proximitor and a 3500/42M monitor card, the complete channel meets API 670 5th Edition requirements for radial vibration protection, including the mandated ±2% sensitivity tolerance and self-test diagnostic capability.
• Diagnostic Transparency via DC Gap Voltage: The static DC component of the output voltage provides a continuous shaft centerline position reading. Trending this value over time reveals bearing wear, thermal growth, and alignment shifts — diagnostic data that is invisible to AC-only vibration sensors.
• Reduced Wiring Complexity with CN Connector: The Chinese domestic connector variant eliminates field-fabricated adapter harnesses, reducing junction resistance and the associated noise floor increase. Each adapter junction can add 0.5–2 Ω of contact resistance, which at the Proximitor’s input impedance level introduces measurable offset errors.
• Extended Thermal Operating Range: The –35 °C to +177 °C rating covers both cold-start conditions in outdoor installations and hot-section bearing pedestals on gas turbines, where probe tip temperatures can exceed 150 °C during sustained full-load operation.
• IP67 Sealing for Wet and Contaminated Environments: The probe assembly withstands direct water jet exposure and temporary immersion, making it suitable for pump bearing housings where lubricant mist and wash-down water are present simultaneously.
• Broad Shaft Diameter Applicability: The 11 mm tip geometry maintains linearity on shaft diameters as small as 50 mm without significant field curvature error, while remaining the standard choice for large-bore turbine shafts up to 500 mm diameter, covering the full range of rotating equipment in a typical process plant.
• Long-Term Signal Stability: The hermetically sealed tip construction prevents coil former moisture absorption, which is the primary mechanism for long-term sensitivity drift in eddy-current probes. Field data from continuous-duty installations indicates sensitivity drift of less than 0.5% per year under normal operating conditions.
• Serialised Traceability: Each unit carries a unique serial number linked to its factory calibration record, enabling full traceability for maintenance management systems and regulatory audit requirements in nuclear, petrochemical, and power generation facilities.

Quality Assurance & Global Logistics

Every 330704-000-100-10-11-CN unit dispatched from our Xiamen facility undergoes a structured pre-shipment verification protocol: visual dimensional inspection against OEM drawings, sensitivity verification on a calibrated gap-test fixture to ±2% tolerance, insulation resistance measurement ≥ 100 MΩ at 500 VDC, and full conductor continuity check. A serialised test report is available upon request at no additional charge.

Parts are sourced exclusively from authorised distribution channels and verified OEM-surplus stock. Inbound inventory is subject to counterfeit-risk screening, including connector marking verification, cable jacket material analysis, and coil impedance spot-checks against factory reference values.

Logistics from Xiamen, China: domestic orders ship within 24–48 hours via SF Express or JD Logistics. International orders are dispatched via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to Southeast Asia, the Middle East, and Europe. Full export documentation — commercial invoice, packing list, certificate of origin, and HS code declaration (9031809090) — is provided for all cross-border shipments. Dangerous goods classification does not apply to this product.
