Bently Nevada 330709-000-060-50-02-00 Proximity Probe – 3300 XL Series

330709-000-060-50-02-00: Eddy-Current Proximity Probe for Critical Rotating Machinery Protection

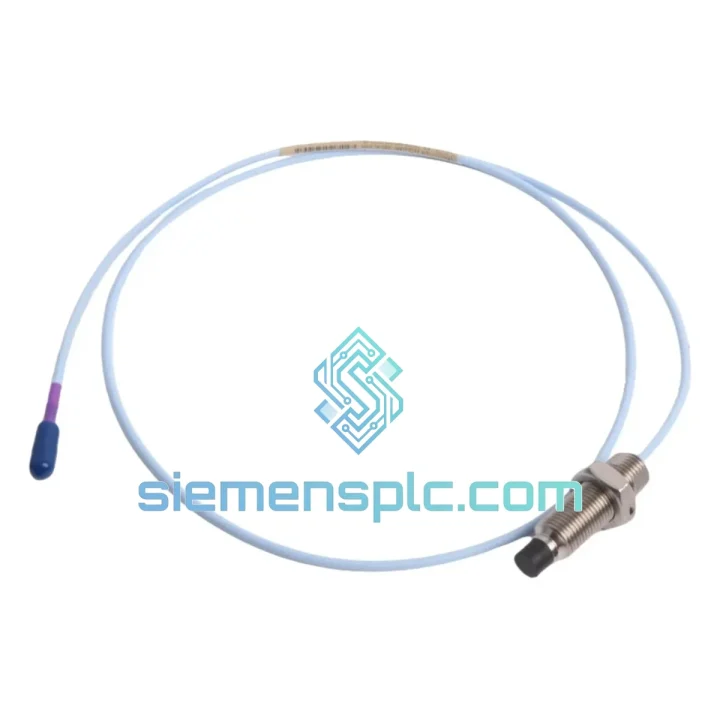

The Bently Nevada 330709-000-060-50-02-00 is a metric-standard, eddy-current proximity probe belonging to the 3300 XL Proximity Transducer System — a platform engineered specifically for continuous, non-contact measurement of radial shaft vibration, axial position, and differential expansion in turbomachinery and other critical rotating assets. This probe operates on the principle of electromagnetic induction: a high-frequency oscillating current (typically 1.0 MHz) is driven through the probe tip coil, generating an alternating magnetic field. When a conductive target surface enters this field, eddy currents are induced in the target, loading the oscillator circuit and producing a proportional DC output voltage. The 330709-000-060-50-02-00 delivers a calibrated sensitivity of 7.87 V/mm (200 mV/mil) across a linear measurement range of 0.25 mm to 2.54 mm (10–100 mil), making it directly interchangeable within any 3300 XL transducer chain without recalibration of the monitor rack.

The probe body is machined from 316 stainless steel with a PEEK (polyether ether ketone) tip housing, providing chemical resistance to lubricating oils, seal gases, and process condensates encountered in compressor and turbine environments. The M10 × 1 metric thread allows precise axial positioning within standard probe holders, and the 60 mm active element length is optimized for installations where radial clearance between the probe tip and the bearing housing is constrained. The 5.0 m integral cable terminates in a standard metric connector (suffix -02), compatible with the 330730 Series extension cables required to reach the 3300 XL driver/oscillator mounted outside the machinery casing.

In a complete 3300 XL transducer chain, this probe pairs with the 330180 Series 8 mm driver and feeds signal into the 3500/42M Proximitor/Seismic Monitor card within a 3500 Series rack. The monitor card performs gap voltage supervision, alert/danger setpoint comparison, and outputs 4–20 mA process signals to the DCS historian. The 330709-000-060-50-02-00 is fully listed in the Bently Nevada System 1 asset management database, enabling automated health trending without additional configuration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator Loading and Gap Linearity: The 3300 XL probe tip coil is wound on a ferrite core and resonates with the driver’s internal capacitor network at approximately 1.0 MHz. As the conductive target approaches, eddy-current losses increase, reducing the oscillator’s Q-factor and lowering the output voltage in a near-linear relationship across the specified 0.25–2.54 mm window. Bently Nevada’s proprietary coil geometry and winding density are optimized to minimize the second-order nonlinearity term, keeping scale factor deviation within ±0.5% of the nominal 7.87 V/mm across the full linear range — a tighter tolerance than generic eddy-current probes operating at comparable frequencies.

EMC Design and Shielding Architecture: The integral cable uses a triaxial construction: the inner conductor carries the high-frequency oscillator signal, the inner shield is driven at the same potential as the center conductor (guard drive) to eliminate cable capacitance loading on the oscillator, and the outer shield provides low-impedance grounding referenced to the driver chassis. This architecture suppresses common-mode interference from variable-frequency drives, high-voltage bus bars, and RF sources present in turbomachinery enclosures, maintaining signal integrity without ferrite chokes or external filtering.

Thermal Drift Compensation: The PEEK tip housing has a coefficient of thermal expansion (CTE) of approximately 50 µm/m·°C, significantly lower than most thermoplastics. Combined with the 316 SS body’s CTE of 16 µm/m·°C, the mechanical stack-up between the probe tip and the target surface remains dimensionally stable across the −35°C to +177°C operating envelope. The driver’s internal temperature compensation circuit applies a correction factor derived from a thermistor embedded in the driver housing, reducing the combined system temperature error to less than ±0.5% of full-scale output per 55°C change.

Target Material Sensitivity Correction: The eddy-current depth of penetration (skin depth δ = √(ρ/πfμ)) varies with target resistivity and permeability. For AISI 4140 steel (ρ ≈ 22 µΩ·cm, µr ≈ 100), the skin depth at 1.0 MHz is approximately 7 µm, ensuring that surface finish variations below Ra 1.6 µm do not affect measurement. For non-standard alloys (e.g., Inconel 718, titanium), Bently Nevada publishes scale factor correction tables; the 330709-000-060-50-02-00 supports these corrections without hardware modification, requiring only a driver gain adjustment.

System Integration Benefits

• Direct 3500 Rack Compatibility: The probe’s output voltage range (−2 to −18 VDC) maps directly to the 3500/42M monitor card’s input specification, eliminating signal conditioning adapters and reducing wiring complexity in the junction box.
• Deterministic Alarm Response: The 3500 rack processes gap voltage samples at 10 kHz per channel, enabling the monitor to detect and annunciate a danger condition within 20 ms of threshold crossing — a latency compatible with API 670 machinery protection requirements.
• Dual-Voting Redundancy Support: Two 330709-000-060-50-02-00 probes mounted 90° apart (X–Y configuration) feed independent monitor channels. The 3500/42M supports 2-of-2 voting logic, preventing spurious shutdowns from single-probe failures while maintaining protection against genuine shaft excursions.
• System 1 Asset Health Integration: The probe’s part number is natively recognized by Bently Nevada System 1 software, enabling automatic population of transducer metadata (sensitivity, linear range, cable length) in the asset database without manual entry.
• Diagnostic Transparency via Gap Voltage Monitoring: The continuous DC gap voltage output provides a real-time indicator of probe-to-target clearance. Drift in the static gap voltage — independent of dynamic vibration — signals mechanical loosening of the probe holder, target surface wear, or probe tip contamination, enabling condition-based maintenance scheduling.
• Minimal Cross-Talk Between Adjacent Probes: The 3300 XL driver operates each probe at a slightly offset oscillator frequency (within the 1.0 MHz band) when multiple probes are installed in close proximity, suppressing inter-probe electromagnetic coupling that would otherwise introduce measurement crosstalk in multi-probe bearing housings.
• Hazardous Area Certification Pathway: The 330709-000-060-50-02-00 is designed for use with Bently Nevada’s ATEX/IECEx-certified drivers, enabling deployment in Zone 1 and Zone 2 classified areas (gas groups IIA, IIB) without additional intrinsic safety barriers in the field wiring segment between probe and driver.
• Long-Term Calibration Stability: The ferrite core material used in the probe coil exhibits a Curie temperature well above 300°C, ensuring that the coil’s permeability — and therefore the oscillator’s resonant frequency — remains stable over the probe’s service life without periodic recalibration under normal operating conditions.

Quality Assurance & Global Logistics

Every 330709-000-060-50-02-00 unit supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) OEM hardware. Prior to dispatch, each unit undergoes a structured inspection protocol: serial number and date code verification against manufacturer records, physical examination of the probe body, cable jacket, and connector for mechanical integrity, and a bench-level output voltage check at a known gap distance using a calibrated test fixture. Units that do not meet the published sensitivity tolerance of ±0.5% are quarantined and returned to the supply chain.

Logistics operations are managed from our warehouse in Xiamen, China — a major export hub with direct access to international freight carriers including DHL Express, FedEx International Priority, UPS Worldwide Expedited, and consolidated sea freight services. Standard in-stock orders are dispatched within 1–3 business days. Export documentation — commercial invoice, packing list, certificate of origin, and packing declaration — is prepared for every international shipment. HS Code 9031.80 applies to this product category for customs classification. We serve industrial buyers in the United States, European Union, United Kingdom, Middle East, Southeast Asia, South Korea, Japan, and Australia, with established freight lanes and customs brokerage contacts in each region.

All units are shipped in anti-static, moisture-barrier packaging with foam cushioning to protect the probe tip and cable connector during transit. A 12-month warranty from the date of shipment covers manufacturing defects and functional non-conformance to published Bently Nevada specifications.
