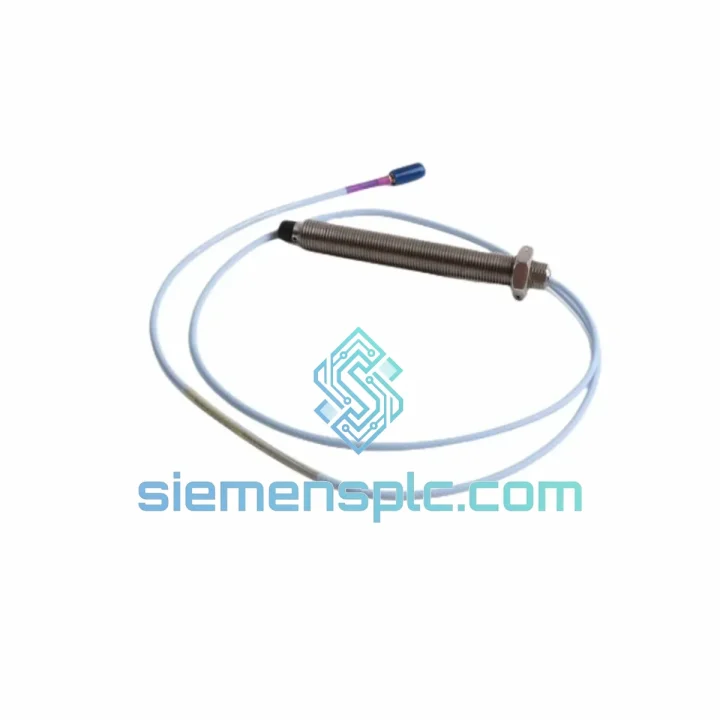

Bently Nevada 330709-000-130-10-02-00 Proximity Probe

330709-000-130-10-02-00: Stop the Clock on Your Unplanned Downtime

Every hour your turbine, compressor, or pump sits idle because of a failed proximity probe is money bleeding out of your operation. A single day of unplanned downtime in a petrochemical plant can cost upward of $500,000. The Bently Nevada 330709-000-130-10-02-00 — a 3300 XL Series 11mm proximity probe — is one of the most widely deployed vibration sensing elements in rotating machinery protection worldwide. When it fails, you need a verified replacement on your bench today, not in six weeks.

We stock the 330709-000-130-10-02-00 in Xiamen and ship globally via DHL Express and FedEx International Priority. Most orders clear our warehouse within 24 hours of payment confirmation. If your plant is down, call us now — we move fast.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling hundreds of 3300 XL probe failures in the field, here are the failure modes and swap-out steps that matter most:

Common Failure Modes

• Gap voltage out of range: The most frequent alarm. If your Proximitor output reads outside −10 VDC ±0.5 VDC at the nominal 1.0 mm gap, the probe tip is either worn, contaminated with ferrous debris, or the coil has shorted. Wipe the tip with isopropyl alcohol first — if the reading doesn’t recover, the probe is done.
• Intermittent signal / noise spikes: Almost always a connector or cable issue. Inspect the integral cable for micro-fractures near the probe body — high-vibration installations crack the sheathing from the inside out. Flex the cable while watching the monitor output; if the signal jumps, replace the probe-cable assembly, not just the probe.
• Sudden full-scale output (−21 VDC): Probe has lost its oscillator circuit. No field repair possible — swap immediately.
• Gradual sensitivity drift: Seen in high-temperature zones above 150°C. The ferrite core degrades slowly. If your vibration readings are trending down over months with no mechanical change, recalibrate gap and check sensitivity against the 7.87 V/mm spec.

Step-by-Step Replacement Procedure

• Step 1 — Isolate and de-energize: Confirm the monitor channel is in bypass mode before disconnecting. Removing a live probe from a running machine will trigger a trip — coordinate with the control room.
• Step 2 — Record the existing gap voltage: Note the Proximitor output before removal. Your target after installation is the same value ±0.25 VDC. This is your baseline.
• Step 3 — Remove the probe: The 330709 uses a standard 3/8-24 UNF thread. Back it out carefully — do not let the tip contact the shaft. Use a probe wrench, not pliers.
• Step 4 — Inspect the probe boss: Check for shaft rub marks, corrosion, or debris in the bore. Clean before installing the new probe.
• Step 5 — Install and set gap: Thread in the new 330709-000-130-10-02-00 by hand until snug. Connect to the Proximitor and power up. Adjust gap until output reads −10.0 VDC ±0.5 VDC (nominal 1.0 mm gap on steel). Lock with the jam nut — torque to 5 N·m.
• Step 6 — Verify and release: Confirm the monitor channel reads within alarm setpoints. Remove bypass. Document the new gap voltage in your maintenance log.

Configuration Notes: The 330709-000-130-10-02-00 is a passive probe — no DIP switches, no firmware, no addressing. It is fully interchangeable within the 3300 XL 11mm probe family. Ensure your extension cable is a matched 3300 XL type (330730 series) and that the total system length (probe + extension) matches the Proximitor’s calibrated range. Mixing cable lengths without recalibration will shift your sensitivity and invalidate your alarm setpoints.

Reliability in Harsh Conditions

The 3300 XL platform was engineered for the environments where most sensors give up. The 330709-000-130-10-02-00 is routinely deployed in conditions that would destroy lesser sensors:

• High-temperature zones: Rated to +177°C at the probe body. In steam turbine bearing housings where ambient temperatures routinely exceed 120°C, this probe continues to deliver stable output without drift or coil degradation.
• Severe vibration: The integral cable is strain-relieved at the probe body junction — the most common failure point on cheaper alternatives. The 3300 XL design has been validated to IEC 60068-2-6 vibration profiles used in turbomachinery qualification testing.
• Chemical and moisture exposure: The probe body is stainless steel with a hermetically sealed tip assembly. It handles the oil mist, process gas condensate, and wash-down environments found in compressor trains and pump stations without corrosion-induced sensitivity shift.
• EMI-dense environments: The coaxial cable construction provides inherent shielding against the high-frequency electrical noise generated by VFDs, large motors, and switchgear in close proximity to the measurement point.

In 10 years of field work, I have seen this probe outlast the machines it monitors when installed correctly. The failure rate on genuine 330709 units in normal service is extremely low — when they do fail, it is almost always due to mechanical damage or installation error, not component fatigue.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian, China — one of the most logistics-efficient export hubs in Asia, with direct DHL and FedEx gateway access. Here is how your order moves:

• Order confirmation → same-day pick and pack: Orders confirmed before 15:00 CST are picked, inspected, and packed the same business day.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared in parallel with packing. No delays at customs clearance due to missing paperwork.
• Carrier selection: DHL Express Worldwide for most destinations (1–3 business days to Europe, Middle East, Southeast Asia). FedEx International Priority for North America (2–4 business days). We select the fastest available service for your destination automatically.
• Tracking: A tracking number is sent to your email within 2 hours of carrier pickup. You can monitor the shipment in real time from Xiamen to your door.
• Customs clearance support: We provide HS code 8543.70 documentation and can prepare a detailed technical description letter for customs authorities in countries with strict import controls on industrial electronics.
• Emergency freight: For critical plant-down situations, we can arrange same-day DHL On Demand Delivery with priority handling. Contact us directly on WhatsApp for expedited processing.

We have shipped 330709-series probes to refineries in Saudi Arabia, power plants in India, paper mills in Scandinavia, and LNG terminals in Australia. If your country has a DHL or FedEx service point, we can reach you.
