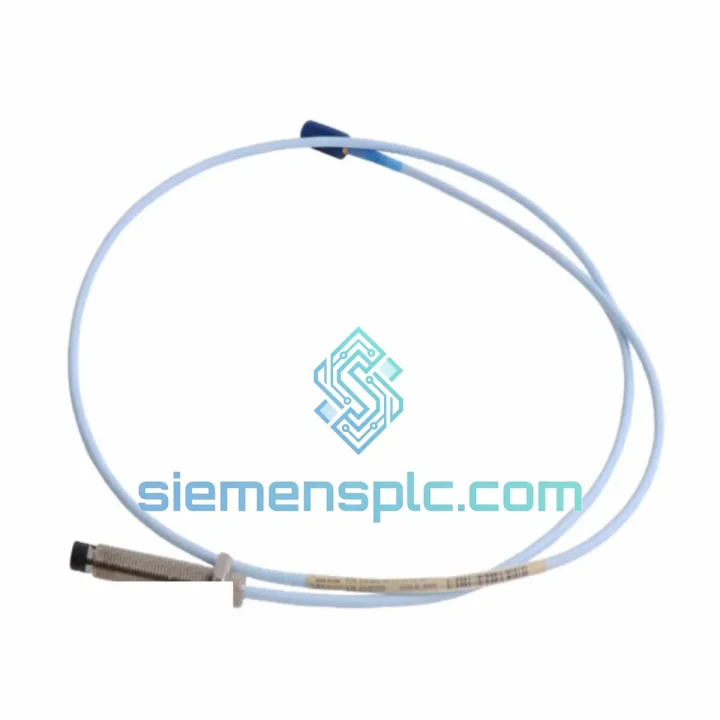

Bently Nevada 330710-000-060-10-02-00 Proximity Probe

330710-000-060-10-02-00 In Stock — Every Hour of Downtime Costs You More Than This Probe

A tripped vibration monitor. A compressor on emergency shutdown. Your maintenance window closing fast. The Bently Nevada 330710-000-060-10-02-00 is a 8mm eddy-current proximity probe from the 3300 XL Series — and when it fails, your entire rotating machinery protection loop goes blind. We stock this part in Xiamen and ship globally via DHL and FedEx. No waiting on OEM lead times. No minimum order. One unit, out the door, today.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here is what actually goes wrong with the 330710-000-060-10-02-00 and what to watch for during swap-out:

Fault Code: High Vibration / Not OK (NOK) Output
Before condemning the probe, verify the gap voltage at the Proximitor driver. A healthy 8mm probe in a 3300 XL system should read between −10 VDC and −12 VDC at the nominal 1.0 mm air gap. If you are reading −24 VDC (open circuit) or 0 VDC (short), the probe tip or cable is the culprit — not the monitor card.

Matched-System Rule — Do Not Mix Components
The 3300 XL is a matched transducer system. The probe (330710), extension cable (330130 series), and Proximitor driver (330180 series) are calibrated as a set. Swapping only the probe while reusing an old extension cable from a different series will shift your sensitivity curve and produce false readings. Replace the full set or verify cable series compatibility before energizing.

Gap Setting After Installation
Target gap: 1.0 mm ± 0.1 mm. Use a non-ferrous feeler gauge or a calibrated gap meter. Do not rely on torque alone — thread engagement depth varies with bracket wear. Confirm gap voltage at the Proximitor output terminal before closing the junction box. Document the as-left gap voltage in your maintenance record; it is your baseline for the next inspection.

Cable Routing & Connector Integrity
The most common field failure on this probe is not the tip — it is the coaxial connector at the junction box end. Inspect the center pin for corrosion and the outer shell for fretting. Apply a thin coat of dielectric grease before reconnecting. Secure the cable with strain relief within 150 mm of the connector to prevent vibration-induced intermittent faults.

Firmware / Monitor Compatibility
If you are installing into a 3500 Series rack, confirm the monitor card is configured for 8mm probe input (not 5mm). The configuration is set in the rack’s System 1 software or via the front-panel DIP switches on older 3500/40M cards. A mismatch will cause the monitor to report incorrect engineering units and may mask a real machinery fault.

Slow-Roll Eccentricity Check
After installation, perform a slow-roll check below 600 RPM to capture shaft runout. Subtract the slow-roll vector from your operating vibration data. If your DCS or protection system does not do this automatically, do it manually in your portable analyzer before declaring the machine healthy.

Reliability in Harsh Conditions

The 330710-000-060-10-02-00 is not a lab instrument. It is designed to survive where most electronics fail. The probe body is machined from stainless steel with a PEEK tip material that resists chemical attack from lube oil, seal gas condensate, and cleaning solvents. The integral cable uses a fluoropolymer jacket rated to +177°C continuous — relevant when the probe is mounted on a hot bearing housing or inside a turbine casing.

Vibration immunity is inherent in the eddy-current operating principle: there are no moving parts, no contact wear, and no mechanical fatigue mechanism in the sensing element itself. The probe has been validated to operate through the shock and vibration profiles defined in API 670 — the industry standard for machinery protection systems in oil & gas and power generation. In high-humidity environments such as offshore platforms or tropical compressor stations, the sealed coaxial construction prevents moisture ingress that would otherwise detune the oscillator circuit and shift the sensitivity calibration.

Units supplied through siemensplc.com are stored in climate-controlled conditions and shipped in anti-static, moisture-barrier packaging. Each unit is inspected for connector integrity, cable jacket condition, and tip surface condition before dispatch. You receive a part that is ready to install, not one that has been sitting in an uncontrolled warehouse for three years.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is how your order moves:

• Order Confirmed (Day 0): Payment cleared before 14:00 CST triggers same-day pick, pack, and QC sign-off.
• Export Documentation (Day 0–1): Commercial invoice, packing list, and HS code declaration (HS 9031.80) prepared. Certificate of origin available on request.
• Carrier Handoff (Day 1): Shipment tendered to DHL Express or FedEx International Priority. Tracking number issued to buyer within 2 hours of pickup scan.
• Transit to Southeast Asia / Middle East: 2–4 business days.
• Transit to Europe / North America: 3–5 business days.
• Transit to South America / Africa: 5–8 business days.

For critical shutdowns where every hour counts, contact us directly on WhatsApp before placing your order. We can confirm stock, prepare documentation, and coordinate with the freight desk to prioritize your shipment in the day’s manifest. We have done this for refineries in the Middle East, power plants in Southeast Asia, and compressor stations in Eastern Europe. We know what an emergency looks like and we move accordingly.
