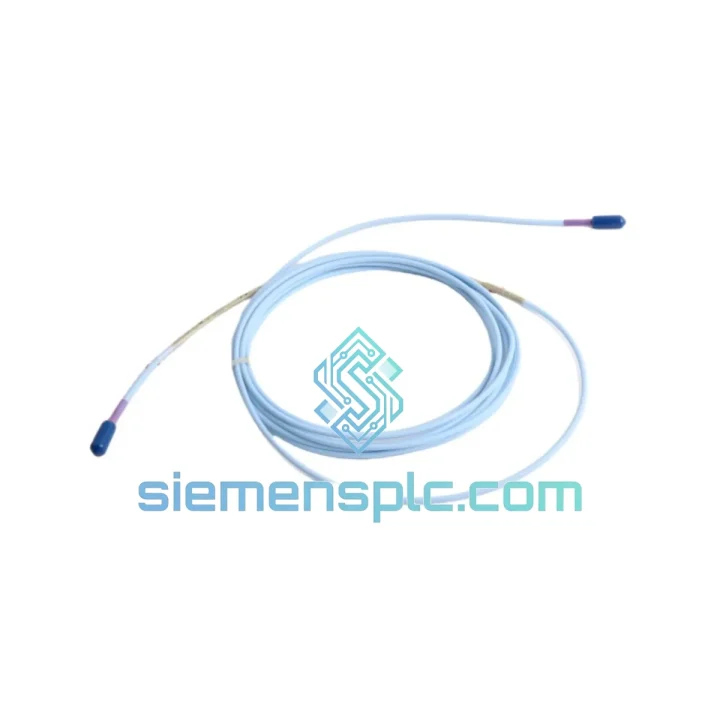

Bently Nevada 330730-040-00-CN Proximity Transducer – 3300 XL

Bently Nevada 330730-040-00-CN – 8mm Eddy Current Proximity Transducer for Critical Rotating Machinery Protection

In a machinery protection architecture, the proximity transducer is the first and most critical node in the measurement chain. It converts mechanical shaft displacement into an analog voltage signal with sub-micron resolution, feeding the monitor rack data that determines whether a machine trips, alarms, or continues running. The Bently Nevada 330730-040-00-CN is an 8mm eddy current proximity transducer from the 3300 XL series — a platform that has been the de facto standard for turbomachinery protection in power generation, oil & gas, and petrochemical industries for over three decades. This specific variant carries the -CN connector suffix, indicating a China-market coaxial termination configuration, and ships with a 1.0-meter (40-inch) integral cable pre-terminated at the factory to eliminate field splicing variability.

The 330730-040-00-CN operates on the eddy current principle: a high-frequency oscillator (typically 1.0 MHz) drives a coil wound at the probe tip, generating an electromagnetic field that induces eddy currents in the conductive target shaft. As the gap between probe tip and shaft surface changes, the eddy current loading on the coil changes proportionally, modulating the oscillator amplitude. The paired proximitor (driver) demodulates this signal and outputs a DC voltage proportional to gap distance at a scale factor of 7.87 V/mm (200 mV/mil). This non-contact measurement principle eliminates mechanical wear, requires zero lubrication, and delivers a frequency response flat from DC to 10,000 Hz — sufficient to capture sub-synchronous instabilities, oil whirl, and blade-passing frequencies in high-speed turbomachinery.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Oscillator Circuit Stability and Temperature Compensation
The 330730-040-00-CN probe tip houses a precision-wound ferrite-core coil encapsulated in a thermally stable epoxy compound. The oscillator frequency is maintained at approximately 1.0 MHz by the paired proximitor’s internal LC tank circuit. Bently Nevada’s 3300 XL design incorporates a temperature-compensated oscillator that corrects for coil impedance drift across the –35°C to +121°C operating range. Without this compensation, a 100°C temperature swing would introduce a gap measurement error of approximately 0.05 mm — unacceptable in API 670 applications where trip setpoints are typically set at 125–250 μm peak-to-peak. The factory calibration certificate documents the scale factor at 25°C, 75°C, and 100°C to confirm compensation performance.

EMC Design and Shielding Architecture
The integral cable uses a double-shielded coaxial construction: an inner shield tied to signal ground at the proximitor end, and an outer drain wire connected to chassis ground. This configuration suppresses both capacitively coupled interference (from adjacent VFD cables, high-voltage bus bars) and magnetically induced noise from transformer fields. In installations where the probe cable runs parallel to power cables for more than 300 mm, Bently Nevada specifies a minimum 150 mm separation — a constraint that the 1.0-meter integral cable length of the 330730-040 variant helps manage by keeping the high-impedance probe circuit as short as possible before the proximitor’s low-impedance output stage takes over.

Target Conductivity and Scale Factor Verification
The eddy current field penetration depth (skin depth) is a function of target material conductivity and oscillator frequency. For standard carbon steel shafts (conductivity ~5.8 × 10⁶ S/m), the 330730-040-00-CN delivers the nominal 7.87 V/mm scale factor. For Inconel 718 shafts (conductivity ~8.0 × 10⁵ S/m), the scale factor shifts to approximately 8.5–9.0 V/mm, requiring a system-level recalibration. Bently Nevada documents this in their System 1 calibration procedure. Failure to account for target material is one of the most common commissioning errors encountered in field installations — it produces a systematic offset in vibration amplitude readings that does not trigger a fault code but silently degrades protection accuracy.

Connector Variant (-CN) Field Implications
The -CN suffix designates a connector termination style standardized for the Chinese domestic market, where locally sourced extension cables and junction boxes use a different coaxial pin geometry than the standard -00 variant. Electrically, the two variants are identical. The critical field check is to verify that the mating extension cable (typically 330130 series or local equivalent) uses the CN-compatible female connector. Mismatched connectors introduce contact resistance at the coaxial junction, which appears as a DC offset shift in the output bias voltage — typically 0.2–0.5 VDC — that can be misread as a gap change by the monitor.

System Integration Benefits

• Zero-recalibration drop-in replacement: The 330730-040-00-CN is a factory-calibrated OEM unit. When replacing a failed probe in an existing 3300 XL system, no scale factor adjustment is required at the monitor rack — the system resumes normal operation immediately after gap re-setting.
• Deterministic frequency response to 10 kHz: The flat –3 dB bandwidth covers all relevant rotating machinery fault frequencies, including 1× and 2× running speed harmonics, sub-synchronous oil whirl (typically 0.43–0.48×), and blade-passing frequencies in multi-stage compressors operating up to 600,000 RPM equivalent.
• API 670 compliance preserves insurance and regulatory standing: Facilities operating under API 670 mandates cannot substitute non-certified sensors without triggering a management of change (MOC) review. Using the original 330730-040-00-CN eliminates this administrative burden entirely.
• Non-contact measurement eliminates wear-related drift: Unlike contact-type displacement sensors, the eddy current probe has no moving parts and no wear surface. Long-term scale factor drift is less than 0.5% over a 5-year service interval under normal operating conditions.
• Diagnostic transparency via bias voltage monitoring: The –10 VDC nominal bias output provides a continuous, real-time indicator of probe-to-shaft gap. A bias voltage outside the –7 to –18 VDC window indicates probe damage, shaft contact, or cable fault — enabling predictive maintenance before a measurement failure occurs.
• Broad target material compatibility with documented correction factors: Bently Nevada publishes scale factor correction tables for 23 common shaft alloys, allowing engineers to maintain measurement accuracy on non-standard materials without empirical recalibration.
• Seamless integration with 3500 Series monitor racks: The 330730-040-00-CN is fully compatible with the 3500/42M Proximitor/Seismic Monitor when configured for 8mm probe input. No hardware modification is required; only the configuration software (System 1 or 3500 Rack Configuration) needs to confirm the probe type selection.
• Reduced commissioning time through factory documentation: Each unit ships with a factory calibration certificate, dimensional drawing, and wiring diagram. This documentation package satisfies the pre-commissioning documentation requirements of most EPC contractors and plant engineering standards without additional testing.

Quality Assurance & Global Logistics

Authenticity and Incoming Inspection
Every 330730-040-00-CN unit stocked at our Xiamen facility undergoes a structured incoming inspection protocol before it is made available for sale. This includes visual inspection of the probe tip, cable jacket, and connector for mechanical damage; part number and date code verification against the manufacturer’s label; continuity and insulation resistance testing of the coaxial cable; and bias voltage output verification using a calibrated 3300 XL proximitor test bench. Units that fail any inspection criterion are quarantined and not offered for sale. A Certificate of Conformance (CoC) is issued with every shipment.

Packaging and ESD Protection
Probe assemblies are individually wrapped in anti-static foam, sealed in moisture-barrier poly bags with desiccant, and packed in rigid cardboard boxes with corner protection. The connector is capped with a protective dust cover. This packaging standard maintains probe integrity during air freight handling — a critical consideration given that the coaxial connector’s center pin is the most mechanically vulnerable component.

Global Express Logistics from Xiamen
Our Xiamen warehouse operates with same-day dispatch for orders confirmed before 15:00 CST. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Express. Typical transit times: Southeast Asia 1–2 days; Europe 3–4 days; North America 3–5 days; Middle East 2–3 days. Full export documentation is provided with every international shipment, including commercial invoice, packing list, Certificate of Origin, and HS Code 8543.70 classification. For ATEX-certified units, the EC Declaration of Conformity is included. Shipment tracking numbers are provided within 2 hours of dispatch.

12-Month Warranty
All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and calibration non-conformance. Warranty claims are processed within 5 business days. Replacement units are dispatched before the defective unit is returned, subject to a refundable deposit, to minimize your downtime exposure.
