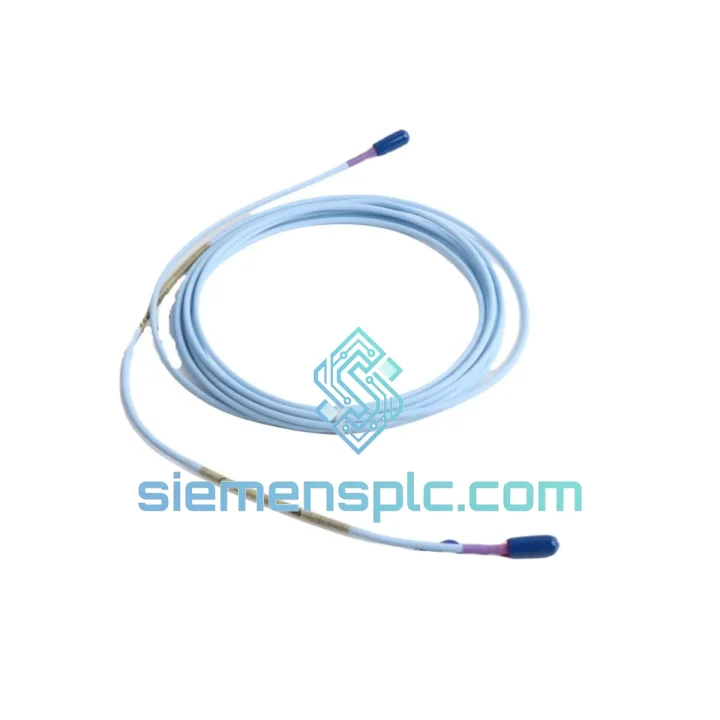

Bently Nevada 330730-040-03-05 Extension Cable – 3300 XL Proximity System

Bently Nevada 330730-040-03-05 – 4.0 m Armored Extension Cable for 3300 XL 11mm Proximity Transducer Systems

The Bently Nevada 330730-040-03-05 is a factory-specification armored extension cable engineered exclusively for the 3300 XL 11mm Proximity Transducer System. Within a proximity measurement chain — probe, extension cable, Proximitor sensor — the extension cable is the passive but mechanically critical link that preserves signal fidelity between the probe tip and the signal conditioning electronics. Any impedance mismatch, jacket degradation, or connector oxidation in this segment directly corrupts the gap voltage output and, by extension, the displacement reading fed to the protection monitor. The 330730-040-03-05 eliminates these failure modes through a tightly controlled cable geometry, armored outer jacket, and precision-machined connectors that maintain the system’s calibrated 200 mV/mil (7.87 V/mm) sensitivity across the full 4.0 m run.

This part number decodes as follows: 330730 = extension cable base model for 3300 XL 11mm; -040 = 4.0 m cable length; -03 = standard industrial connector style; -05 = armored/shielded jacket construction. Each suffix is a functional specification, not a cosmetic variant — substituting an incorrect suffix changes the electrical characteristics of the measurement loop and invalidates the system calibration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL proximity measurement loop operates on a resonant oscillator principle: the Proximitor sensor drives a high-frequency carrier signal (typically 1.0 MHz) through the coaxial cable to the probe coil. Eddy currents induced in the target surface load the oscillator, shifting its output voltage in direct proportion to the air gap. For this mechanism to maintain linearity across the full measurement range (typically 0.25 mm to 2.54 mm for an 11mm probe), the cable’s characteristic impedance must remain stable and matched to the system’s design value of 95 Ω.

The -05 armored jacket on the 330730-040-03-05 addresses two distinct failure vectors simultaneously. First, the stainless steel armor provides mechanical protection against crush loads, abrasion from rotating components, and rodent damage — all common in turbine bearing pedestals and compressor skids where cable routing is constrained. Second, the foil-plus-braid shield construction (≥ 95% optical coverage) provides a continuous Faraday enclosure around the signal conductor. In environments with variable-frequency drives, high-current bus bars, or adjacent RF transmitters, unshielded or poorly shielded cables act as antennas, coupling noise directly into the gap voltage signal. At 200 mV/mil sensitivity, even 10 mV of coupled noise represents a 50 µm false displacement reading — sufficient to trigger nuisance trips on tightly set protection setpoints.

The precision-machined coaxial connectors at both terminations maintain the 95 Ω impedance through the connector body, preventing reflections that would appear as standing waves on the carrier signal and introduce nonlinearity at the extremes of the measurement range. Connector oxidation is mitigated by gold-plated center pins and silver-plated outer shells, which preserve low-resistance contact even after years of thermal cycling in hot bearing environments.

The fluoropolymer inner jacket (PTFE or FEP depending on production batch) provides a stable dielectric constant across the full –50 °C to +120 °C operating range. Dielectric constant variation with temperature is a known source of sensitivity drift in proximity systems; the fluoropolymer’s low and stable εr (approximately 2.1) ensures that the cable’s electrical length — and therefore the system’s calibrated sensitivity — does not shift measurably between cold startup and full operating temperature.

System Integration Benefits

• Deterministic gap voltage linearity: The 95 Ω impedance match across the full 4.0 m run ensures the Proximitor sensor’s output voltage tracks target displacement with the specified ±0.5% linearity, supporting accurate alarm and trip setpoint enforcement in the 3500 Series monitor.
• EMC compliance in mixed-signal environments: The ≥ 95% shield coverage suppresses common-mode noise injection, maintaining signal-to-noise ratios that allow the monitor to resolve displacement changes below 5 µm — critical for early-warning trending of bearing wear.
• Mechanical survivability in high-vibration zones: The stainless steel armor sustains cable integrity in locations where vibration levels at the cable routing path may exceed 10 g, preventing the intermittent contact failures that produce false trip events.
• Thermal stability across startup-to-operating temperature delta: Fluoropolymer dielectric maintains constant εr from cold ambient to 120 °C bearing housing temperatures, eliminating thermally induced sensitivity drift that would otherwise require field recalibration after each startup.
• Direct plug-and-play replacement: Connector geometry and pin assignment are identical to all 330730-series extension cables, allowing in-situ replacement without rewiring the junction box or reconfiguring the Proximitor sensor.
• Calibration chain preservation: Because the cable’s electrical characteristics are factory-controlled to match the 3300 XL system calibration, replacing a degraded cable with a genuine 330730-040-03-05 restores the original calibration without requiring a full system recalibration procedure — reducing maintenance downtime.
• Diagnostic transparency: A correctly functioning extension cable presents a stable DC resistance and capacitance to the Proximitor’s self-test circuitry. Genuine OEM cables with known electrical parameters allow the monitor’s cable fault detection to distinguish between a true probe fault and a cable degradation event, improving diagnostic resolution.
• Long-term documentation traceability: Each unit carries OEM part number labeling on the cable jacket and connector body, enabling unambiguous identification during periodic inspection, audit, or insurance survey — a requirement in API 670-compliant machinery protection installations.

Quality Assurance & Global Logistics

Every Bently Nevada 330730-040-03-05 unit supplied by siemensplc.com is sourced through verified distribution channels with documented chain of custody. Units undergo a pre-shipment inspection protocol covering connector pin integrity, jacket continuity, shield resistance measurement, and part number label conformance before dispatch. No repackaged, relabeled, or third-party substitute cables are listed or shipped.

Shipments originate from our warehouse in Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard in-stock orders are dispatched within 1–2 business days of payment confirmation. Typical transit times are 3–5 business days to Southeast Asia, 4–7 days to Europe, and 5–8 days to North America. All international shipments include a commercial invoice, packing list, and country-of-origin declaration. Certificates of conformance and test reports are available upon request for quality-critical or API 670-audited installations. Export documentation is prepared in compliance with applicable customs regulations for industrial instrumentation components.
