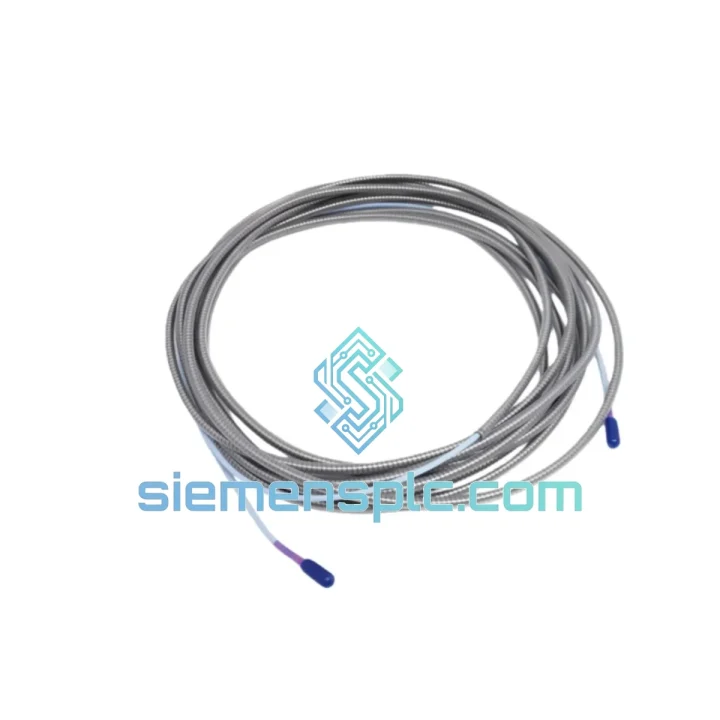

Bently Nevada 330730-080-10-05 Proximitor Extension Cable – 3300 XL Series

Bently Nevada 330730-080-10-05: 8-Meter Coaxial Extension Cable in the 3300 XL Proximity Transducer Measurement Chain

Within a continuous shaft monitoring loop, the extension cable is not a passive conduit — it is an active impedance element whose electrical characteristics directly determine the linearity and noise floor of the entire measurement chain. The Bently Nevada 330730-080-10-05 is an 8.0-meter (26.25 ft) factory-terminated coaxial extension cable engineered specifically for the 3300 XL Proximity Transducer System. It occupies the signal path between the eddy-current probe tip and the Proximitor® sensor, transmitting a raw RF carrier signal at approximately 1.0 MHz without introducing impedance discontinuities, dielectric loss, or shield-induced ground loops that would corrupt the DC output voltage used for gap measurement and vibration analysis.

In API 670-compliant machinery protection installations — steam turbines, gas turbines, centrifugal compressors, boiler feed pumps — the total probe system cable length (probe integral cable + extension cable) must fall within the Proximitor® sensor’s rated loop specification. The 330730-080-10-05 is factory-matched to standard 3300 XL probe integral cable lengths (typically 0.5 m or 1.0 m), ensuring the combined loop length remains within the Proximitor® sensor’s calibrated operating range without requiring field recalibration or sensitivity adjustment. This deterministic length management is a procurement-critical specification that distinguishes OEM-sourced extension cables from generic coaxial substitutes.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330730-080-10-05 is constructed around a precision 50 Ω coaxial core. The center conductor carries the oscillator signal from the probe tip; the braided shield serves as both the return path and the primary EMC barrier. Bently Nevada specifies a controlled dielectric constant for the insulating layer between conductor and shield — this is not a commodity specification. Variations in dielectric constant across cable length would alter the distributed capacitance per unit length, shifting the effective resonant frequency of the probe-cable-Proximitor® loop and introducing a non-linear offset in the gap-voltage transfer function.

The stainless steel interlocked armor jacket provides three distinct engineering functions: (1) mechanical crush resistance in cable tray and conduit installations where dynamic loads from adjacent piping or equipment vibration are present; (2) a secondary EMI shield layer that attenuates radiated interference from variable-frequency drives, high-current bus bars, and RF sources common in turbine hall environments; and (3) a grounding continuity path that, when properly bonded at both termination points, reduces common-mode noise injection into the measurement loop.

Factory termination of the MHV connectors is a critical quality gate. Field-terminated coaxial connectors introduce variability in center-conductor protrusion depth, dielectric gap at the connector interface, and crimp force on the shield braid — each of which creates a localized impedance discontinuity. At 1.0 MHz, a 5 Ω impedance step at the connector interface produces a measurable reflection coefficient that manifests as a DC offset error at the Proximitor® output. The 330730-080-10-05’s factory-terminated connectors are assembled under controlled torque and crimp specifications, then 100% continuity- and impedance-verified before shipment, eliminating this failure mode entirely.

The cable’s rated operating temperature of −40 °C to +85 °C reflects the thermal stability of both the dielectric material and the PVC jacket compound. In cryogenic service (LNG compressor monitoring) or high-ambient installations (gas turbine enclosures), the dielectric constant of inferior cable materials drifts with temperature, introducing a temperature-dependent sensitivity error. The 330730-080-10-05’s dielectric specification is validated across the full temperature range, maintaining the Proximitor® sensor’s published sensitivity of −7.87 mV/mil (−0.3937 V/mm) within the system accuracy specification.

System Integration Benefits

• Zero-Recalibration Replacement: Drop-in substitution for any existing 330730-080-10-05 in a 3300 XL installation requires no Proximitor® sensor recalibration, no gap re-establishment, and no sensitivity verification — the factory-matched loop length preserves the original calibration state.
• API 670 Loop Length Compliance: The 8.0 m length is a standard increment in Bently Nevada’s loop length matrix, ensuring the combined probe + extension cable length remains within the Proximitor® sensor’s rated specification without manual calculation or field measurement.
• Deterministic Signal Latency: Fixed cable length and controlled propagation velocity ensure consistent signal transit time across all channels in a multi-channel monitoring rack, preserving phase coherence for cross-channel vibration analysis (e.g., orbit plot generation).
• Dual-Layer EMI Rejection: The combination of braided inner shield and stainless armor outer jacket provides >60 dB of shielding effectiveness at 1.0 MHz, suppressing interference from adjacent power cables, VFDs, and RF sources without requiring additional conduit or shielding measures.
• Mechanical Integrity in Dynamic Environments: Interlocked stainless armor withstands repeated flexing, cable tray vibration, and incidental impact loads without compromising shield continuity — a failure mode common in PVC-jacketed-only cables in turbine hall installations.
• Connector Retention Force: Factory-crimped MHV connectors meet Bently Nevada’s specified mating retention force, preventing intermittent disconnection under vibration — a root cause of spurious trip events in machinery protection systems.
• Wide Thermal Operating Range: Validated performance from −40 °C to +85 °C covers the full ambient range of outdoor installations, enclosed turbine packages, and cryogenic service without derating or special installation provisions.
• Traceability and Documentation: Each unit carries OEM part labeling and lot traceability, supporting IEC 61511 / IEC 61508 functional safety documentation requirements for safety instrumented systems (SIS) where the proximity measurement loop is part of a safety function.
• 7200 Series Cross-Compatibility: Electrically compatible with Bently Nevada 7200 Series proximity transducers, providing a single-SKU solution for facilities operating mixed-generation monitoring hardware.

Quality Assurance & Global Logistics

Every 330730-080-10-05 unit stocked at siemensplc.com is sourced through verified industrial supply channels and subjected to incoming inspection covering connector integrity, armor continuity, jacket condition, and impedance spot-check. Units are stored in a climate-controlled warehouse in Xiamen, China, packaged in anti-static, moisture-barrier packaging to preserve connector and dielectric integrity during transit.

Shipments are dispatched from Xiamen via DHL Express, FedEx International Priority, and UCP air freight, with typical transit times of 3–7 business days to major industrial hubs in Southeast Asia, the Middle East, Europe, and the Americas. For emergency maintenance situations — unplanned outages requiring same-day or next-day dispatch — contact our team directly via WhatsApp for expedited processing. Export documentation including commercial invoice, packing list, and certificate of origin is prepared for all international shipments. HS Code 8544.42 classification is pre-assigned for customs clearance efficiency.

All units are covered by a 12-month warranty from the date of shipment against manufacturing defects in materials and workmanship. Warranty claims are processed with replacement unit dispatch within 5 business days of confirmed defect verification.
