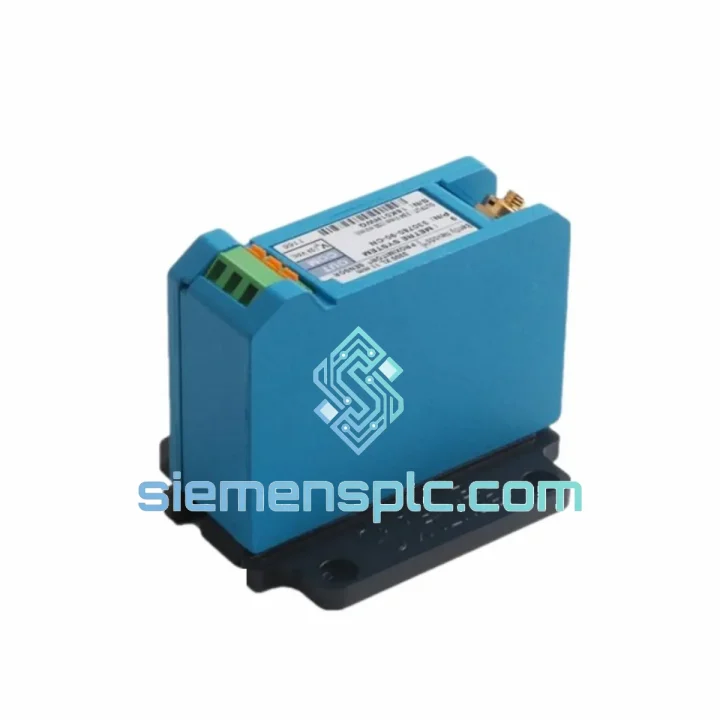

Bently Nevada 330780-90-CN Proximitor Sensor – 3300 XL Series

Bently Nevada 330780-90-CN — Eddy-Current Proximity Sensor for Continuous Rotating Machinery Protection

The 330780-90-CN is a factory-calibrated, non-contact eddy-current proximity transducer manufactured by Bently Nevada (a Baker Hughes company) as part of the 3300 XL 8mm sensor series. It functions as the primary measurement element in shaft radial vibration, axial position, and differential expansion monitoring loops on critical turbomachinery. The transducer generates a DC-biased voltage output whose magnitude is a linear function of the gap between the probe tip and the conductive target surface — a principle that eliminates mechanical contact, removes wear as a degradation mechanism, and delivers sub-micron resolution across the full operating life of the installation.

In a protection-grade monitoring architecture, the 330780-90-CN occupies the field-sensing position of a three-component measurement chain: probe assembly → armored extension cable → Proximitor driver module. The driver supplies the 1 MHz oscillator signal to the probe coil, demodulates the reflected impedance change caused by eddy-current induction in the target, and outputs a calibrated DC voltage to the rack-mount monitor. The -90 suffix designates a 9.0-metre integral cable assembly; the -CN suffix identifies a China-region documentation and labeling configuration that satisfies local customs and regulatory requirements without altering the core electrical performance of the transducer.

This model is specified wherever API 670 (5th Edition) machinery protection compliance is required — including steam turbines, gas turbines, centrifugal and axial compressors, large pumps, and hydro generators. Its output is directly compatible with Bently Nevada 3300 and 3500 series rack-mount monitors, requiring no field recalibration when used as a drop-in replacement within an existing 3300 XL measurement chain.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330780-90-CN probe coil is wound on a ferrite core and encapsulated in a thermally stable epoxy compound that maintains dimensional integrity across the full −35 °C to +85 °C operating envelope. When the driver’s 1 MHz oscillator energizes the coil, the alternating magnetic field penetrates the target surface to a skin depth determined by the target’s electrical conductivity and magnetic permeability. Eddy currents induced in the target generate a counter-field that reduces the effective inductance of the probe coil; this impedance change is a monotonic, near-linear function of the probe-to-target gap within the calibrated range.

The armored cable assembly is a critical element of the measurement chain’s EMC performance. The outer stainless-steel braid provides a Faraday shield that attenuates capacitively coupled interference from adjacent high-voltage cabling — a common noise source in turbomachinery enclosures where motor drive cables and instrumentation wiring share the same cable trays. The coaxial geometry of the signal conductor, dielectric, and shield maintains a controlled characteristic impedance that prevents signal reflections at the driver input over the full 9.0-metre cable run.

The −CN suffix configuration does not alter the probe’s electromagnetic architecture but specifies a documentation package — including Chinese-language calibration certificates and HS code 8543.70 customs declarations — that reduces import clearance time at Chinese ports of entry. This is a logistical optimization, not a performance differentiation.

From an EMC standpoint, the 3300 XL probe assembly meets IEC 61000-4-3 radiated immunity requirements at 10 V/m field strength across the 80 MHz – 1 GHz band, which is relevant in installations near variable-frequency drives and radio communication equipment. The driver module’s differential input architecture further rejects common-mode noise on the cable shield, providing an additional 40 dB of common-mode rejection at power-line frequencies.

System Integration Benefits

• Zero-recalibration drop-in replacement: The 330780-90-CN is pin-compatible and scale-factor-matched to all 3300 XL 8mm probe assemblies. Replacing a failed unit in an existing installation requires no adjustment to the monitor’s alarm setpoints or scale factor configuration.
• Deterministic DC output for real-time protection: The DC-biased voltage output is available to the monitor with zero latency — there is no A/D conversion or digital processing delay in the field transducer itself. This preserves the sub-millisecond response time required for overspeed and high-vibration trip functions.
• API 670 measurement chain compliance: When paired with a compatible 3300 XL extension cable and driver, the complete measurement chain satisfies API 670 (5th Edition) requirements for radial vibration, axial position, and differential expansion channels, supporting machinery protection system certification audits.
• Broad monitor compatibility: The output signal is accepted by Bently Nevada 3300, 3500/40M, 3500/42M, and 3500/45 monitor modules without signal conditioning adapters, simplifying spare-parts inventory management across mixed-generation monitoring racks.
• Non-contact measurement eliminates drift mechanisms: Unlike contact-type displacement sensors, the eddy-current probe has no moving parts and no wear surface. Long-term calibration stability is governed by the thermal coefficient of the coil geometry rather than mechanical wear, resulting in calibration intervals measured in years rather than months.
• IP67 environmental sealing for harsh enclosures: The probe body and cable entry are sealed to IP67, permitting direct exposure to oil mist, condensation, and wash-down conditions typical of compressor and turbine bearing housings without requiring additional protective enclosures.
• Frequency response to 10 kHz supports high-speed machinery diagnostics: The flat frequency response to 10,000 Hz captures sub-synchronous instabilities, blade-pass frequencies, and gear-mesh harmonics on machinery operating at speeds up to 600,000 RPM (10 kHz shaft frequency), enabling condition-based maintenance programs beyond simple amplitude alarming.
• Traceable factory calibration with documentation: Each unit ships with a factory calibration certificate traceable to NIST (or equivalent national metrology institute) standards, satisfying the documentation requirements of ISO 9001-certified maintenance management systems and regulatory inspection bodies.

Quality Assurance & Global Logistics

Every 330780-90-CN unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full supply-chain traceability. Prior to dispatch, each unit undergoes a multi-point inspection protocol: OEM packaging integrity check, label and serial number format verification against Bently Nevada authentication records, and visual inspection of the probe tip, cable armor, and connector body for transit damage.

Shipments originate from our Xiamen, China warehouse — a logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port, enabling same-day handover to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Transit times to major industrial centers are typically 3–5 business days to Southeast Asia, 5–7 business days to the Middle East and Europe, and 5–8 business days to North America. For time-critical plant shutdowns, air freight with next-flight-out booking is available on request.

Each shipment includes a Certificate of Conformance (CoC), packing list, country-of-origin declaration, and HS code 8543.70 customs documentation. Export compliance screening is performed on every order in accordance with applicable export control regulations. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects under normal operating conditions.
