Bently Nevada 330800-16-15-020-02-02 Proximity Transducer Assembly

330800-16-15-020-02-02 In Stock Now — Every Hour of Downtime Costs You Money

Your turbine tripped at 02:00. The DCS is screaming. Maintenance is standing by. The root cause: a failed proximity transducer assembly — and the OEM lead time is six weeks. That gap between “failed” and “back online” is exactly where we operate. We stock the Bently Nevada 330800-16-15-020-02-02 PROXPAC XL assembly and ship same-day from Xiamen via DHL Express. Most customers in Southeast Asia and the Middle East have the part in hand within 48–72 hours. No waiting. No excuses.

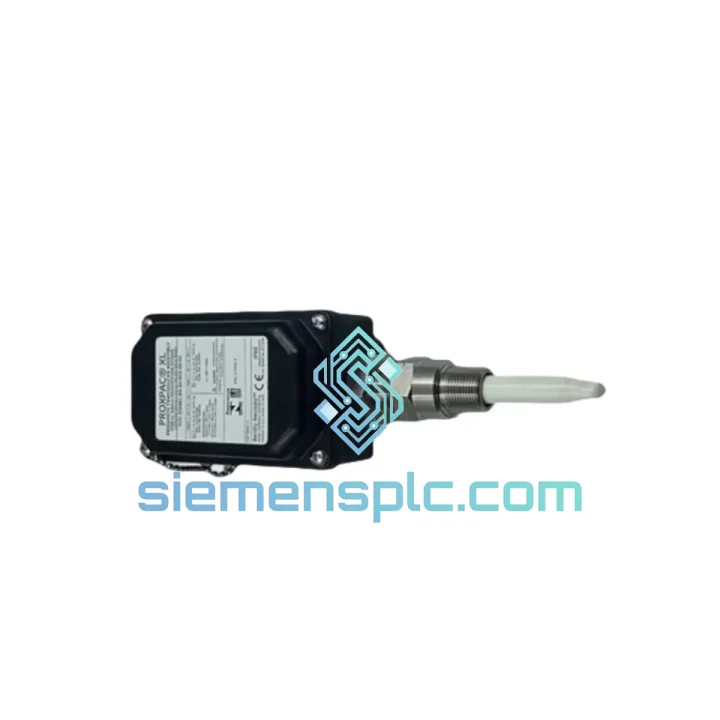

This is a complete, factory-matched PROXPAC XL assembly — probe tip, extension cable, and proximitor driver shipped as a pre-calibrated unit. Drop it in, verify the gap, and restart. No field calibration. No trimming. No guesswork.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, the failure patterns on 3300 XL PROXPAC assemblies are predictable. Here is what you will actually encounter and how to deal with it fast:

Fault Code 01 / OK LED Off — Proximitor Not Oscillating
Nine times out of ten this is a severed coaxial center conductor inside the extension cable, usually at the probe-end connector where the cable flexes during maintenance. Before condemning the proximitor, disconnect the extension cable at both ends and measure continuity on the center conductor and shield separately. If the cable checks out, swap the proximitor first — it is the cheapest component and the most common electronic failure point after five or more years of service.

Alarm / Trip on Startup After Replacement
The most common cause is incorrect probe gap. The 330800-16 tip has a nominal gap of 50 mil (1.27 mm) to the shaft surface for a –12 VDC output midpoint. Set your gap with a feeler gauge before energizing the monitor. If the monitor trips immediately on power-up, check that the channel is configured for the correct transducer type (eddy-current, –24 VDC supply) and that the OK setpoint is not set tighter than –2 VDC / –22 VDC.

Intermittent Signal / Noisy Output
Check connector torque at both the probe-to-extension and extension-to-proximitor junctions. These are MIL-spec threaded connectors — finger-tight is not enough. Use a strap wrench to achieve proper seating. Also verify that the cable shield is grounded at one end only (proximitor end). Double-grounding the shield creates a ground loop that shows up as 50/60 Hz noise on the vibration channel.

Replacing the Assembly — Step-by-Step

1. Isolate the monitor channel and acknowledge alarms. Do not bypass the trip — coordinate with operations for a controlled window.
2. Disconnect the proximitor from the monitor rack. Label the cable before removal.
3. Remove the extension cable from the proximitor and from the probe. Inspect connectors for corrosion or bent pins.
4. Unthread the probe from the bearing housing bracket. Note the thread depth (number of exposed threads) for reference.
5. Install the new 330800-16-15-020-02-02 assembly. Thread the probe to the same depth as the removed unit as a starting point.
6. Power the proximitor from the –24 VDC supply and measure output voltage at the proximitor output terminal. Adjust probe gap until output reads –12 VDC ±0.5 VDC (midscale).
7. Reconnect to the monitor channel. Verify OK status LED illuminates and channel reads within normal vibration range for the machine at rest.
8. Return the machine to service and monitor the first 30 minutes of operation for any drift or alarm.

Firmware / Monitor Configuration Note: If you are installing this assembly into a 3300 XL monitor that was previously configured for a different cable length combination, verify that the monitor’s internal gap voltage setpoints still align with the new assembly’s output characteristics. The scale factor (200 mV/mil) is identical across the 3300 XL PROXPAC range, but the OK window limits may need adjustment if the previous assembly had a different linear range.

Reliability in Harsh Conditions

The 3300 XL PROXPAC platform was not designed for a clean lab. It was designed for the bearing housing of a 40 MW gas turbine running at 3,000 RPM in a petrochemical plant where ambient temperatures swing from –10°C at night to +55°C in summer, where the floor vibrates at 1–2 g continuously, and where the electrical environment is saturated with VFD switching noise and ground faults.

The probe body is machined from 316 stainless steel with a PEEK tip insert, giving it chemical resistance against lubricating oils, seal gases, and cleaning solvents. The coaxial cable uses a dual-layer braid shield with 95% coverage — not the 85% coverage found on generic replacements — which is the difference between a clean signal and a noisy one in a high-EMI environment.

The proximitor enclosure is rated IP67 when properly installed, meaning it survives the steam cleaning and water washdown that happens during planned maintenance outages. The internal oscillator circuit uses military-grade capacitors rated to 125°C junction temperature, which is why these units routinely outlast their five-year recommended replacement interval when installed correctly.

We have shipped 330800-series assemblies to offshore platforms in the North Sea, to LNG terminals in Qatar, and to cement plants in Southeast Asia. The feedback is consistent: when the part is genuine and the gap is set correctly, it runs without attention until the next planned outage.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Orders confirmed before 15:00 CST ship the same business day. Here is what the transit timeline looks like in practice:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 1–2 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 2–3 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France): 3–4 business days via DHL Express Worldwide
• North America (USA, Canada): 3–5 business days via FedEx International Priority
• Australia / New Zealand: 2–4 business days via DHL Express

Every shipment includes a commercial invoice, packing list, and certificate of origin. For customers requiring customs clearance support, we provide HS code documentation and can prepare a formal letter of conformance on request. We have experience clearing industrial instrumentation through customs in over 40 countries — if your procurement team needs specific documentation to clear the part, tell us upfront and we will prepare it before the shipment leaves Xiamen.

For plant shutdowns where every hour counts, we offer a dedicated emergency logistics channel. Contact us via WhatsApp and we will coordinate the fastest available routing, including weekend dispatch when the DHL gateway is open.
