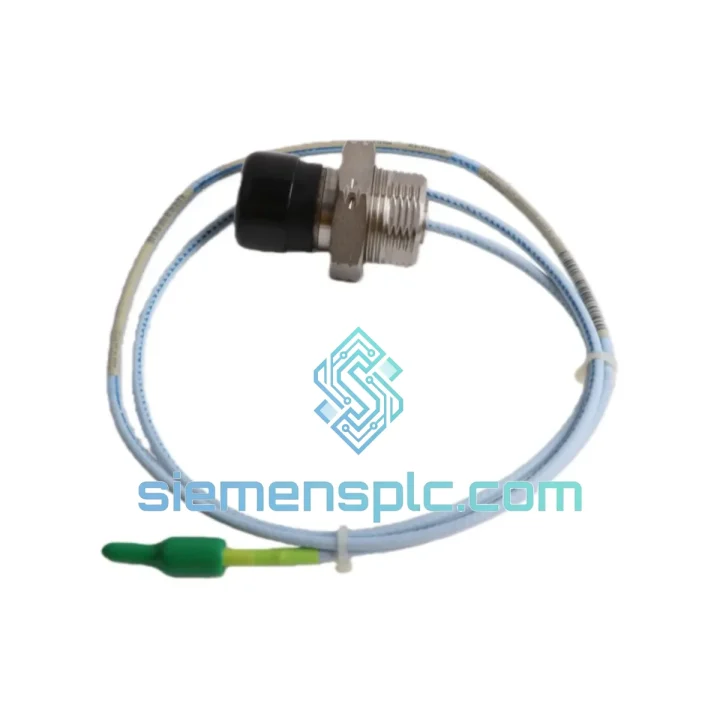

Bently Nevada 330851-02-000-030-50-01-00 Proximity Probe

330851-02-000-030-50-01-00 Down? Every Minute of Shaft Vibration Blackout Costs You Money — Ship Today

Your turbine is tripped. The 3300 XL proximity system is blind. Maintenance is standing by and production is hemorrhaging cash. The Bently Nevada 330851-02-000-030-50-01-00 is a 8mm eddy-current proximity probe — the exact transducer your API 670 machinery protection loop depends on. We stock it. We ship it today from Xiamen. No lead time negotiation, no distributor queue, no excuses.

This is not a grey-market listing. Every unit on our shelf is original Bently Nevada (Baker Hughes) manufacture, full OEM packaging, traceable serial number. If your plant engineer needs a CoC before the PO is raised, we have it ready.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 330851-02-000-030-50-01-00 fails in predictable ways. Here is what field experience actually looks like:

Fault Code: High Static Voltage / DC Gap Out of Range
If your 3500 monitor is throwing a “Not OK” on the gap channel and the DC gap voltage reads outside −10 V to −18 V, the probe is almost certainly the culprit — not the proximitor. Before condemning the 330180 driver, swap the probe first. Nine times out of ten, the probe tip has been mechanically struck or the integral cable has a hairline fracture near the connector boot.

Fault Code: Noise / High AC Vibration Reading at Rest
If the machine is at standstill but the vibration channel shows 2–5 mil pk-pk of apparent noise, check the extension cable connection at the junction box. Loose or corroded MIL-spec connectors are the number-one cause of phantom vibration readings on 3300 XL systems. Clean the connector pins with isopropyl alcohol, re-torque to spec, and re-zero the gap.

Replacement Procedure — Step by Step:

• Step 1 — Isolate: Inhibit the channel on the 3500 rack before disconnecting. Do not pull the probe live — you will generate a spurious trip signal.
• Step 2 — Record gap voltage: Note the existing DC gap reading before removal. Your target on the new probe is −12 V ± 1 V at the nominal air gap (typically 1.0 mm for most turbine applications).
• Step 3 — Remove probe: Back out the probe from the bracket. The 330851 uses a standard M10 thread. Do not use pipe wrenches — use the flat on the probe body. Damaged threads mean a bracket replacement job on top of everything else.
• Step 4 — Verify matched system: The 330851-02-000-030-50-01-00 is calibrated as a matched set with a 5 m extension cable and the 330180 proximitor. If you are mixing cable lengths from a different probe assembly, you must recalibrate the system. Mismatched cable lengths shift the sensitivity curve and will cause false readings.
• Step 5 — Set air gap: Install the new probe and adjust to achieve −12 VDC at the proximitor output. Use a calibrated feeler gauge or dial indicator to confirm physical gap matches the electrical reading.
• Step 6 — Restore and verify: Remove inhibit, observe the channel for 5 minutes at operating speed. Confirm vibration baseline matches historical trend data within ±10%.

Common Mistake: Engineers sometimes order the 330851-01 (5 m cable) when they need the 330851-02 (5 m integral + 5 m extension). Confirm your existing cable configuration before ordering. The part number suffix encodes the full system geometry — do not guess.

Reliability in Harsh Conditions

The 3300 XL probe body is stainless steel throughout. The integral cable uses armored jacketing specifically rated for continuous exposure to lube oil, steam condensate, and the vibration-induced fatigue cycles that destroy standard instrumentation cable within months. Bently Nevada designed this transducer for the inside of a turbine bearing housing — one of the most hostile measurement environments in industrial automation.

Operating temperature ceiling of +121 °C means it survives direct contact with hot bearing housings without signal drift. The eddy-current sensing principle is inherently immune to contamination: oil film, metal particles, and moisture on the shaft surface do not affect measurement accuracy the way optical or capacitive sensors would. This is why API 670 mandates eddy-current proximity for critical machinery protection — there is no more robust non-contact measurement technology for this application.

Vibration immunity is built into the probe mounting design. The M10 threaded body locks into the bracket with a jam nut, and the armored cable provides strain relief that prevents connector fatigue even on machines running at 3,000–3,600 RPM continuously. Units stored in our Xiamen warehouse are kept in anti-static, moisture-proof packaging with desiccant — shelf life is maintained for a minimum of 5 years from manufacture date.

Global Express Logistics

Our Xiamen warehouse operates Monday through Saturday. Orders confirmed before 15:00 CST ship same day. Here is the actual logistics flow:

• Day 0 — Order confirmation: PO received, unit pulled from shelf, serial number photographed and sent to buyer. Commercial invoice, packing list, and Certificate of Origin prepared.
• Day 0 — Handover to carrier: DHL Express or FedEx International Priority pickup from our facility. Tracking number issued within 2 hours of handover.
• Day 1–2 — Xiamen to hub: Clears Xiamen Gaoqi International Airport customs. Transits through DHL Shanghai or FedEx Guangzhou gateway.
• Day 2–4 — In-country delivery: Southeast Asia, Japan, Korea — typically 2–3 business days total. Europe — 3–5 business days. North America — 3–5 business days. Middle East — 4–6 business days.

We handle all export documentation. HS Code 9031.80 applies to proximity transducers — we declare correctly so your shipment does not sit in customs. For orders requiring an import license or end-user certificate in your country, contact us before ordering and we will advise on documentation requirements.

Bulk orders (5+ units) qualify for dedicated freight coordination and volume pricing. Contact us for a formal quotation with lead time commitment.
