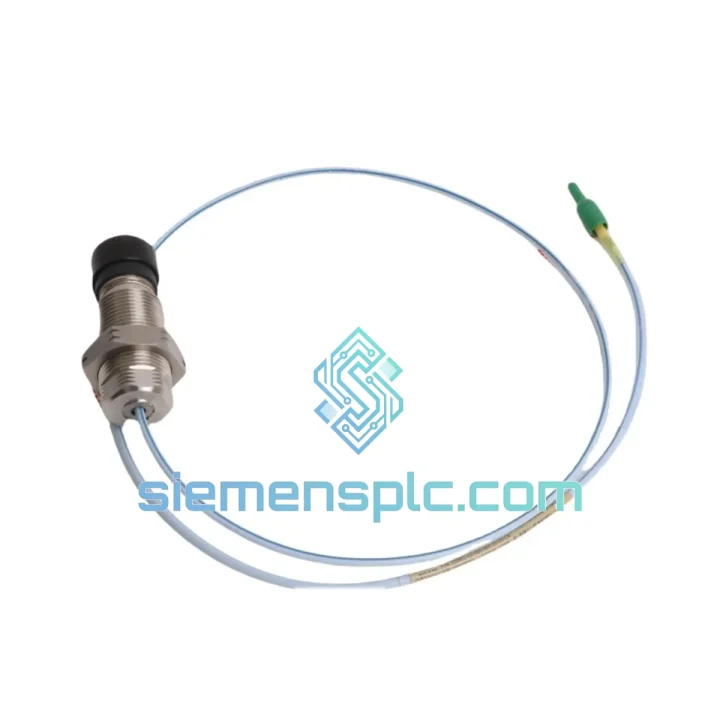

Bently Nevada 330851-02-000-066-10-00-00 Proximity Probe

330851-02-000-066-10-00-00 — Stop the Clock on Your Downtime. Ship Today.

Every hour a gas turbine or compressor sits idle waiting for a proximity probe costs real money — production losses, penalty clauses, emergency labor. The Bently Nevada 330851-02-000-066-10-00-00 is a 25 mm eddy-current proximity probe from the 3300 XL platform, and we have it on the shelf right now in Xiamen. No lead-time negotiation. No factory back-order. You call, we ship — DHL or FedEx Express, door to door, anywhere on the planet.

This is not a grey-market gamble. Every unit we dispatch carries full traceability documentation, pre-shipment electrical verification, and a Certificate of Conformance. When your machinery protection rack throws a Not OK alarm at 02:00, you need a replacement you can trust to go straight back into service without a recalibration headache.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes in the field:

• Probe tip contamination / physical damage — oil fouling or mechanical contact with the shaft causes a fixed DC offset shift. The Proximitor® output locks near –2 V or –18 V rail. First check: clean the tip with IPA, re-gap to 1.0 mm (40 mil), verify output returns to –10 V ±0.5 V at nominal gap.
• Cable jacket breach — armored cable routed through hot sections or vibrating conduit develops micro-fractures. Symptom: intermittent high-frequency noise on the vibration channel, false trip events. Resistance check: probe tip to connector pin should read 8–10 Ω. Any open circuit or reading above 15 Ω — replace the probe-cable assembly as a matched set.
• Connector corrosion (MIL-C-5015) — moisture ingress at the junction box connector causes scale factor drift. Symptom: vibration readings creep upward over weeks without any real change in machinery condition. Clean with contact cleaner, apply dielectric grease, torque to spec.
• Proximitor® driver mismatch — the 330851 series is calibrated for the 3300 XL Proximitor® driver. If you swap in a 3500-series driver without verifying the calibrated cable length, the scale factor will be off by up to 15%. Always confirm the driver part number matches the probe-cable system length (5 m integral + extension cable).

Step-by-step hot-swap procedure (planned outage window):

1. De-energize the Proximitor® driver at the rack — do NOT simply disconnect the probe under power; the driver output will rail and may trigger a spurious trip.
2. Loosen the probe locknut and back the probe out of the bracket. Note the gap setting (typically 1.0 mm / 40 mil for 25 mm probes on 4140 steel shafts).
3. Inspect the probe tip and shaft surface for scoring. Any shaft damage will require a material correction factor even with a new probe.
4. Thread the new 330851-02-000-066-10-00-00 into the bracket. Set gap to 1.0 mm using a feeler gauge — do not rely on the voltage reading alone until you have confirmed the shaft is at rest.
5. Torque locknut to manufacturer spec (typically 20–25 N·m for 25 mm probes). Over-torquing shifts the gap.
6. Re-energize the driver. Verify static output voltage: –10 V ±0.5 V at 1.0 mm gap on 4140 steel. If outside this range, adjust gap in 0.05 mm increments.
7. Confirm the 3300/3500 monitor channel clears the Not OK status. Log the as-found and as-left gap values in your maintenance record.
8. Perform a slow-roll check (below first critical speed) to verify vibration baseline before returning to full load.

Configuration notes: The 330851-02-000-066-10-00-00 does not have DIP switches or firmware — it is a passive eddy-current sensor. All configuration (alert/danger setpoints, full-scale range, time constants) lives in the Proximitor® driver and the 3300/3500 monitor card. After probe replacement, verify that the monitor channel’s gap voltage alarm setpoints still reflect the new probe’s static output. A probe with a slightly different tip geometry can shift the static gap voltage by ±0.3 V, which may cause nuisance alarms if setpoints are tight.

Reliability in Harsh Conditions

The 3300 XL platform was engineered for the environments where failures are most expensive. The 330851-02-000-066-10-00-00 is routinely deployed in conditions that would destroy lesser sensors:

• Vibration — the probe body and integral cable assembly are qualified to withstand continuous broadband vibration up to 20 g RMS across 10–2000 Hz. In compressor bearing housings where structural resonances can amplify vibration well beyond shaft motion, the probe itself must not become a noise source. The armored cable construction prevents cable whip and connector fretting that plague standard instrumentation cable in these environments.
• High temperature — rated to +177°C continuous, the 316 SS housing and high-temperature cable jacket handle hot-section bearing housings on gas turbines without thermal drift in the scale factor. At elevated temperatures, eddy-current probes from lesser manufacturers exhibit sensitivity roll-off; the 3300 XL design maintains linearity across the full thermal range.
• Chemical exposure — 316 stainless steel resists H₂S, chlorides, and process condensate common in petrochemical and offshore applications. The IP67 rating ensures the probe survives wash-down and temporary immersion during flooding events in below-grade bearing pedestals.
• EMI/RFI — the coaxial construction of the probe and integral cable provides inherent shielding against variable-frequency drive interference and high-voltage ignition systems common in gas turbine packages. Proper grounding at the Proximitor® driver is still required — float the shield at the probe end, ground at the driver end only.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items ordered before 15:00 CST. Here is exactly what happens after you confirm your order:

• Day 0 (order confirmation) — unit pulled from shelf, pre-shipment electrical check performed, CoC generated, export documentation prepared (commercial invoice, packing list, HS code 9031.80).
• Day 0–1 (dispatch) — shipped via DHL Express or FedEx International Priority, depending on destination and your preference. Both services provide door-to-door tracking with proactive exception management.
• Day 1–3 (transit) — typical transit times: Southeast Asia 1–2 days, Middle East / Europe 2–3 days, Americas 3–4 days. Customs clearance documentation is pre-prepared to minimize border delays.
• Customs support — we provide a detailed commercial invoice with accurate HS code classification and declared value to facilitate smooth customs clearance. For destinations with import restrictions on industrial electronics, we advise on documentation requirements before shipment.
• Emergency freight — for genuine plant-down situations, we can arrange same-day courier handoff to international freight forwarders operating out of Xiamen Gaoqi International Airport. Contact us directly on WhatsApp for real-time coordination.

We have shipped Bently Nevada components to refineries in Saudi Arabia, power plants in Germany, LNG terminals in Australia, and compressor stations across Southeast Asia. The logistics process is proven and repeatable.
