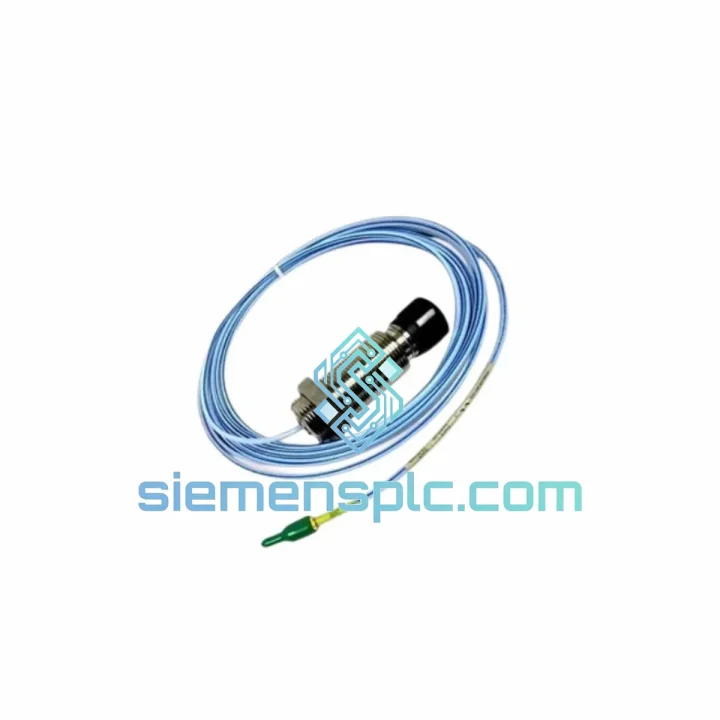

Bently Nevada 330851-02-000-070-90-00-CN Proximity Probe – 3300 XL Series

Bently Nevada 330851-02-000-070-90-00-CN: 8mm Eddy-Current Proximity Probe for API 670 Machinery Protection Systems

In rotating machinery protection, the measurement chain begins at the probe tip. The Bently Nevada 330851-02-000-070-90-00-CN is an 8mm eddy-current proximity probe belonging to the 3300 XL platform — a system architecture that has defined the standard for non-contacting shaft displacement measurement across gas turbines, centrifugal compressors, steam turbines, and high-speed pumps for decades. This specific part number encodes a 2-metre integral armored cable (070 designation), standard -24 VDC supply compatibility, and CN-market configuration, making it a direct-fit replacement within any 3300 XL measurement chain without recalibration of the proximitor driver.

The 3300 XL probe operates on the eddy-current principle: a high-frequency oscillator within the proximitor driver energizes the probe coil, generating an electromagnetic field at the 8mm tip. When a conductive target — typically an AISI 4140 steel shaft journal — enters the field, eddy currents are induced on the target surface, loading the coil and reducing the oscillation amplitude. The proximitor demodulates this amplitude change and outputs a DC voltage linearly proportional to the probe-to-target gap. The 330851 series maintains a scale factor of 7.87 V/mm (200 mV/mil) across its linear range of 0.25 mm to 2.25 mm, with a frequency response flat to DC–10,000 Hz (±3 dB), sufficient to resolve sub-synchronous instabilities, oil whirl, and blade-pass frequencies in most turbomachinery applications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330851-02-000-070-90-00-CN probe is not a passive sensor — it is one leg of a three-element impedance bridge whose operating point is set by the proximitor driver. Understanding the hardware logic clarifies why component substitution outside the matched system is technically inadvisable.

Coil Geometry and Field Penetration Depth. The 8mm tip diameter determines the electromagnetic field penetration depth into the target, which governs the effective sensing range and the sensitivity to surface finish variations. The 3300 XL 8mm coil is wound to a specific inductance value that the proximitor’s oscillator circuit expects. Substituting a probe with a different coil inductance — even from the same manufacturer’s 5mm or 11mm series — shifts the oscillator operating frequency and invalidates the scale factor calibration stored in the proximitor.

EMC Design and Shielding Architecture. The integral cable uses a triaxial construction in the probe body transitioning to a coaxial run in the armored extension. The inner conductor carries the high-frequency oscillator signal; the inner shield is driven at the same potential as the center conductor (guard drive), eliminating capacitive leakage current along the cable length. This guard-drive topology is what allows the 3300 XL system to maintain measurement accuracy over cable runs up to 9 metres without signal attenuation errors — a critical requirement in large turbine installations where the proximitor rack may be located far from the bearing housing.

Temperature Compensation. The probe coil is wound with a conductor whose resistance-temperature coefficient is matched to the ferrite core material’s permeability-temperature characteristic. This passive compensation holds the scale factor within ±0.5% across the full -35 °C to +177 °C operating range without any active electronics in the probe body. The absence of active components in the probe is a deliberate design choice: it eliminates the primary failure mode (semiconductor junction degradation) in high-temperature bearing environments.

Armored Cable Mechanical Design. The stainless steel braid armor serves two functions: mechanical protection against abrasion and impact in high-vibration installations, and EMI shielding against radiated interference from variable-frequency drives, ignition systems, and high-current bus bars common in turbomachinery enclosures. The armor is terminated at the probe body with a strain-relief fitting that prevents cable flexure from propagating to the coil connection — a common failure point in unarmored installations subject to continuous vibration.

Target Material Sensitivity. The eddy-current field interacts with both the electrical conductivity and magnetic permeability of the target. The standard calibration assumes AISI 4140 steel (σ ≈ 4.0 MS/m, μr ≈ 100). Targets with significantly different properties — austenitic stainless steel (non-magnetic, higher conductivity), titanium (lower conductivity), or aluminium (non-magnetic, high conductivity) — will produce a different scale factor. Bently Nevada publishes material correction factors for common alloys; for non-standard materials, a custom calibration curve must be generated using the actual target material.

System Integration Benefits

• Zero-wear measurement principle: The non-contacting eddy-current method eliminates mechanical wear between sensor and target. There is no contact force, no friction, and no surface degradation of the shaft journal attributable to the measurement system. This is particularly significant in high-speed compressor applications where journal surface finish directly affects bearing film stability.
• DC-coupled output for static position measurement: The flat frequency response extending to DC allows the same probe to measure both dynamic vibration (AC component) and static shaft position (DC component) simultaneously. A single 330851 probe can therefore provide both radial vibration amplitude and bearing clearance data to the monitoring system without additional instrumentation.
• Deterministic signal latency: The analog output of the 3300 XL proximitor has a group delay of less than 100 µs across the measurement bandwidth. This deterministic latency is essential for machinery protection systems where trip response time is specified in milliseconds — digital sensor alternatives with variable processing latency cannot guarantee equivalent response time.
• Direct compatibility with System 1 and 3500 monitoring racks: The -10 VDC bias output and 200 mV/mil scale factor are natively accepted by Bently Nevada System 1 software and 3500 series rack monitors without signal conditioning. No intermediate transducer or scaling module is required, reducing the component count in the signal chain and eliminating potential failure points.
• Hazardous area certification without barriers in all zones: The ATEX Ex ia IIC T6 rating allows installation in Zone 0 environments (continuous explosive atmosphere) when used with a certified associated apparatus. This eliminates the need for Zener barriers or galvanic isolators in most petrochemical applications, simplifying the installation and reducing loop resistance.
• Diagnostic transparency via gap voltage monitoring: The DC bias voltage at the proximitor output provides a continuous, real-time indication of the probe-to-shaft gap. Maintenance engineers can trend this value over time to detect shaft centerline migration, bearing wear, and thermal growth — all without interrupting production. A bias voltage outside the -7 VDC to -13 VDC window indicates a probe, cable, or proximitor fault, enabling rapid fault isolation.
• Plug-and-play replacement within the 3300 XL ecosystem: Because the scale factor and bias characteristics are defined by the probe-proximitor matched pair, replacing a failed 330851 probe with a new unit of the same part number restores the measurement chain to factory calibration without field recalibration. This reduces mean time to repair (MTTR) in critical machinery protection applications where extended downtime carries significant production cost.
• Long-term spare parts availability: The 3300 XL platform has been in continuous production and support for over 25 years. siemensplc.com maintains stock of 330851 series probes specifically to support plants that cannot migrate to newer platforms on short notice. Availability of verified spare parts directly reduces the risk of extended outages caused by obsolescence-driven procurement delays.

Quality Assurance & Global Logistics

Every unit of the 330851-02-000-070-90-00-CN supplied by siemensplc.com is sourced exclusively from documented channels: authorized Bently Nevada distributors, verified OEM surplus from decommissioned plant inventories, or factory-new stock with original packaging and serialization intact. Counterfeit proximity probes are a documented risk in the industrial aftermarket; our procurement process includes dimensional verification of the probe tip geometry, connector pin-out confirmation, and coil resistance measurement against OEM reference values before any unit is listed for sale.

Units are shipped from our Xiamen, China facility, which operates as a bonded logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port — two of the highest-throughput export nodes on China’s southeastern coast. Standard export routing via DHL Express or FedEx International Priority delivers to most destinations in Europe, the Middle East, Southeast Asia, and North America within 3–5 business days from dispatch. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. Full export documentation — commercial invoice, packing list, certificate of origin, and MSDS where applicable — is provided with every shipment. Multi-currency payment is accepted: USD, EUR, HKD, and CNY via T/T bank transfer, PayPal, and major credit cards.

All units carry a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions as defined by the Bently Nevada 3300 XL installation manual. Units that fail within the warranty period are replaced or refunded at the buyer’s election, with return freight covered by siemensplc.com for confirmed defective units.
