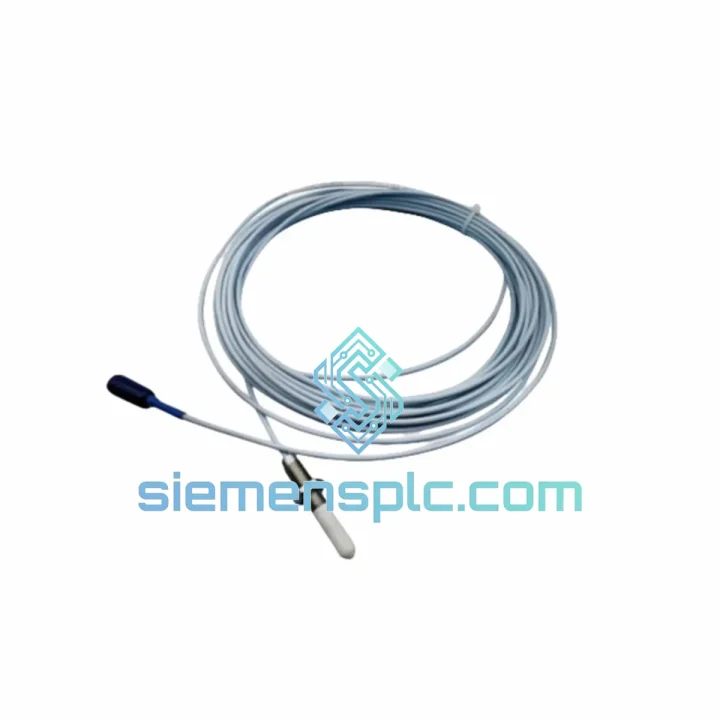

Bently Nevada 330851-02-000-078-10-01-05 Proximity Transducer

330851-02-000-078-10-01-05 — Stop the Clock on Your Downtime

Every minute a turbine or compressor sits idle, the losses compound. A failed proximity transducer is one of the most common causes of unplanned machinery shutdowns in rotating equipment — and it is also one of the fastest to fix, if you have the right part on hand. We stock the Bently Nevada 330851-02-000-078-10-01-05 in Xiamen and ship globally via DHL and FedEx Express. Most orders clear customs and land on your bench within 3–5 business days. No waiting weeks for factory lead times. No production losses that spiral into six-figure downtime costs.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, these are the failure modes I see most often with the 330851 series — and the checks that save you from chasing ghosts:

1. Bias Voltage Out of Range
The driver output should read between –18 VDC and –24 VDC at the gap midpoint. If you are reading –10 V or less, the probe tip is likely shorted to the target or the extension cable has a broken shield. Do not assume the driver is faulty until you have isolated the cable run. Disconnect the extension cable at the driver end and measure the open-circuit bias — if it snaps back to –24 V, the fault is in the cable, not the driver.

2. Intermittent Vibration Spikes — Not Mechanical
A common misdiagnosis: the 3500 monitor throws a high-vibration alarm, maintenance pulls the machine, and the rotor checks out fine. Nine times out of ten, the culprit is a micro-fracture in the extension cable jacket caused by repeated thermal cycling. The crack is invisible to the eye. Replace the full cable assembly — probe, extension, and driver as a matched set — and re-gap to the nominal –12 V bias point before returning to service.

3. Re-Gapping After Replacement
This is where most technicians lose time. The 330851 system requires a target gap of 1.0 mm (±0.1 mm) for the –12 V nominal bias. Use a non-ferrous feeler gauge and a calibrated DC voltmeter — do not rely on the monitor’s gap channel alone during initial setup. Tighten the probe locknut to 2.5 N·m; over-torquing shifts the gap and invalidates your calibration.

4. Driver Address / DIP Switch Configuration
When installing into a Bently Nevada 3500 rack, confirm the driver module’s internal DIP switches match the channel assignment in the rack configuration software (System 1 or Rack Configuration Utility). A mismatch between the physical switch position and the software channel map will cause the monitor to report a Not OK status even with a perfectly functional transducer. Pull the driver card, verify switch positions against the rack drawing, and re-seat before condemning the hardware.

5. Firmware Compatibility
If you are integrating this transducer into a 3500/42M or 3500/44M monitor, ensure the monitor firmware is at revision 4.x or later. Earlier firmware versions have a known issue with the 3300 XL 8 mm sensitivity constant that causes a 3–5% offset error in the gap reading. The firmware update is available from Baker Hughes and takes under 15 minutes to apply via the rack Ethernet port.

6. Grounding and Shield Continuity
The extension cable shield must be grounded at the driver end only — never at both ends. A double-grounded shield creates a ground loop that injects 50/60 Hz noise directly into the vibration signal. If your spectrum shows a dominant line that does not correlate with running speed, check shield grounding before suspecting a mechanical fault.

Reliability in Harsh Conditions

The 330851-02-000-078-10-01-05 is not a laboratory instrument — it is built for the floor. The stainless-steel probe body withstands continuous immersion in turbine lube oil, process gas condensate, and steam environments without corrosion or dimensional drift. The probe tip is hardened against micro-abrasion caused by oil-entrained particulates in high-speed bearing housings.

Vibration resistance is validated to 20 g continuous and 50 g shock per IEC 60068-2-6 and IEC 60068-2-27. In compressor trains where structural resonance transmits significant vibration energy back through the probe mounting boss, this rating provides the margin that keeps the sensor reading accurately rather than generating false alarms. The extension cable uses a double-braided shield and a fluoropolymer outer jacket rated to +200 °C, suitable for routing through hot zones where standard PVC cables would soften and fail within months.

Humidity and condensation are handled by the hermetically sealed probe tip assembly. Units destined for offshore platforms or tropical process environments have been field-proven in sustained 95% RH conditions without signal drift or insulation breakdown. The driver module conformal-coated PCB adds a further layer of protection against moisture ingress in non-purged enclosures.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China primary export hubs with direct access to DHL, FedEx, and UPS international gateways. Here is how a typical urgent order moves:

Day 0 — Order Confirmed: Payment cleared before 14:00 CST triggers same-day pick, pack, and export documentation. Commercial invoice, packing list, and HS code declaration (HS 9031.80) are prepared in parallel with physical packing to eliminate paperwork delays at the freight counter.

Day 1 — Airfreight Departure: Shipment departs Xiamen Gaoqi International Airport on the first available DHL or FedEx flight. For Southeast Asia destinations, transit is typically 2–3 business days. For Europe and the Americas, 4–5 business days is the standard window under normal customs conditions.

Day 2–5 — In-Transit Tracking: You receive a live tracking number within 2 hours of handover to the carrier. Our logistics team monitors each shipment and proactively contacts the carrier if a delay flag appears.

Customs Clearance: We pre-declare all shipments with accurate HS codes and fair market valuations to minimize the risk of customs holds. For EU customers, we can provide EUR.1 movement certificates or supplier declarations for preferential duty treatment where applicable. For US customers, we prepare ACE-compliant documentation to support smooth CBP clearance.

Delivery Confirmation: Proof of delivery is shared automatically. For critical plant spares, we recommend requesting signature-required delivery to ensure the part reaches the right hands on site.
