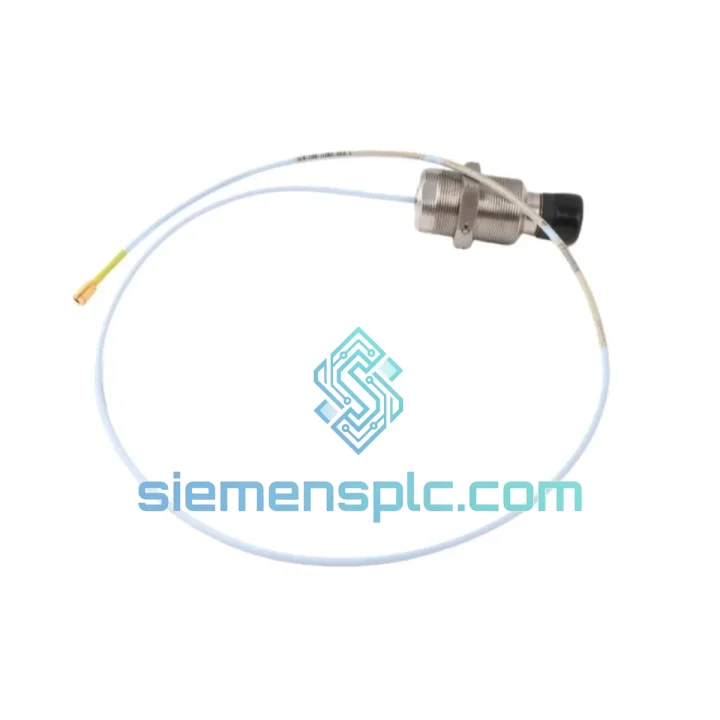

Bently Nevada 330851-06-000-070-10-00-CN Proximity Probe – 3300 XL 8mm

Bently Nevada 330851-06-000-070-10-00-CN — Non-Contact Shaft Displacement Sensing in API 670 Machinery Protection Loops

In any rotating machinery protection architecture governed by API 670, the proximity transducer is the first physical link in the measurement chain. Its output fidelity determines whether the monitoring system can distinguish a genuine rotor anomaly from electrical noise — and whether a trip setpoint is reached with the precision required to prevent catastrophic bearing failure. The Bently Nevada 330851-06-000-070-10-00-CN is an 8 mm eddy current proximity probe from the 3300 XL Proximity Transducer System, a platform that has accumulated decades of field deployment across gas turbines, centrifugal compressors, steam turbines, and boiler feed pumps in petrochemical, power generation, and oil & gas facilities worldwide.

This specific part number encodes a precise mechanical and electrical configuration: a 6 ft (approximately 1.83 m) integral probe cable, a 7.0 m extension cable, a 10-32 UNF connector, and a CN-suffix designation indicating the China-market connector variant. The probe operates within the standard 3300 XL measurement chain — probe body, extension cable, and proximitor/driver — and is calibrated as a matched set against AISI 4140 steel targets at a nominal scale factor of 7.87 V/mm (200 mV/mil). Substituting any single element of the chain without recalibration introduces systematic measurement error that invalidates API 670 compliance.

Real-time stock availability and RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL 8mm probe operates on the Lenz’s law induction principle: a high-frequency oscillator within the proximitor drives an alternating current through the probe coil, generating a localized electromagnetic field at the probe tip. When a conductive target enters this field, eddy currents are induced on the target surface, loading the oscillator circuit and producing a measurable change in coil impedance. The proximitor converts this impedance shift into a DC output voltage with a linear relationship to the air gap — the 7.87 V/mm scale factor is the calibrated slope of this transfer function for AISI 4140 steel targets.

The 8 mm tip diameter is a deliberate design parameter. A larger coil diameter increases the sensing field depth and improves signal-to-noise ratio at wider gaps, but also increases sensitivity to target surface irregularities (runout, scratches, material inhomogeneity). The 8 mm format represents the engineering balance point for shaft diameters typically encountered in API 670 applications — shafts in the 50 mm to 300 mm range where the probe-to-shaft diameter ratio remains within the calibration validity envelope.

EMC performance is addressed at the system level through the matched cable impedance design. The integral probe cable and extension cable are specified as a pair: their combined electrical length determines the resonant characteristics of the measurement loop. Mismatching cable lengths — even within the same 3300 XL family — shifts the oscillator operating point and introduces a gain error that appears as a scale factor deviation. The “-06-” and “-070-” segments in the part number are not arbitrary identifiers; they are the physical cable lengths that define the calibrated system state. Field replacement must preserve both values to maintain measurement traceability.

The stainless steel housing with epoxy-sealed tip provides IP67-equivalent ingress protection in most installation configurations. The epoxy encapsulation also serves as a mechanical buffer against thermal cycling stress on the coil winding — a critical consideration in turbine bearing housings where probe body temperatures can cycle between ambient and 150°C+ during startup and shutdown sequences. The −35°C lower operating limit accommodates cold-climate outdoor installations and LNG facility environments where ambient temperatures fall below standard industrial ratings.

System Integration Benefits

• Direct API 670 Compliance Path: The 3300 XL system is explicitly referenced in API 670 Fifth Edition as a compliant transducer platform. Specifying the 330851-06-000-070-10-00-CN eliminates the need for custom calibration documentation during machinery protection system audits.
• Deterministic Measurement Latency: The analog DC output of the proximitor provides zero processing latency between physical gap change and signal availability at the monitor input — critical for high-speed machinery where shaft displacement events can develop within single shaft revolutions at 3,000–15,000 RPM.
• Drop-in OEM Replacement: Like-for-like replacement of an existing 330851-06-000-070-10-00-CN probe requires no proximitor recalibration, no monitor channel rescaling, and no setpoint adjustment — minimizing maintenance window duration in continuous-process facilities.
• Diagnostic Transparency: The DC output voltage is directly readable with a standard multimeter at the proximitor output terminals, enabling field technicians to verify probe gap, confirm system health, and isolate faults without specialized instrumentation.
• Wide Target Material Compatibility: While calibrated for AISI 4140, the 3300 XL system supports alternative target material calibration curves for stainless steel, titanium, and non-ferrous alloys — extending applicability to specialized rotor materials in aerospace and chemical processing equipment.
• Redundant Monitoring Architecture Support: The probe’s single-ended output is compatible with dual-channel and 2-out-of-3 voting monitor configurations used in SIL-rated machinery protection loops, supporting IEC 61511 functional safety implementations.
• Long Cable Reach: The 7.0 m extension cable accommodates installations where the proximitor must be located outside the hazardous area or in a remote junction box — a common requirement in offshore platform and refinery compressor train installations.
• Broad Monitor Compatibility: The 330851-06-000-070-10-00-CN is electrically compatible with Bently Nevada 3500 Series monitors, 1900/65A monitors, and third-party monitors accepting standard −24 VDC eddy current transducer inputs, providing flexibility in mixed-vendor monitoring architectures.

Quality Assurance & Global Logistics

Every unit of the 330851-06-000-070-10-00-CN supplied through siemensplc.com undergoes a structured pre-shipment inspection protocol. Probe tip integrity is verified visually and dimensionally. Connector pin condition and cable jacket continuity are checked. For units where bench testing is applicable, output voltage linearity is verified against a calibrated AISI 4140 target across the full 0.25–2.25 mm linear range. Certificate of conformance and inspection records are available upon request for quality-critical procurement processes.

Parts are dispatched from our Xiamen, China facility — a logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port, supporting both air freight and sea freight consolidation. Standard international shipments are routed via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to major industrial centers in Southeast Asia, the Middle East, Europe, and the Americas. Sea freight LCL and FCL options are available for volume orders. All shipments include commercial invoice, packing list, and country of origin documentation. Export classification and HS code documentation are provided for customs clearance support.

Packaging uses anti-static foam inserts within rigid outer cartons to protect the probe tip and cable assembly against transit shock and electrostatic discharge. Temperature-sensitive shipments to extreme-climate destinations can be accommodated with insulated packaging upon request.
