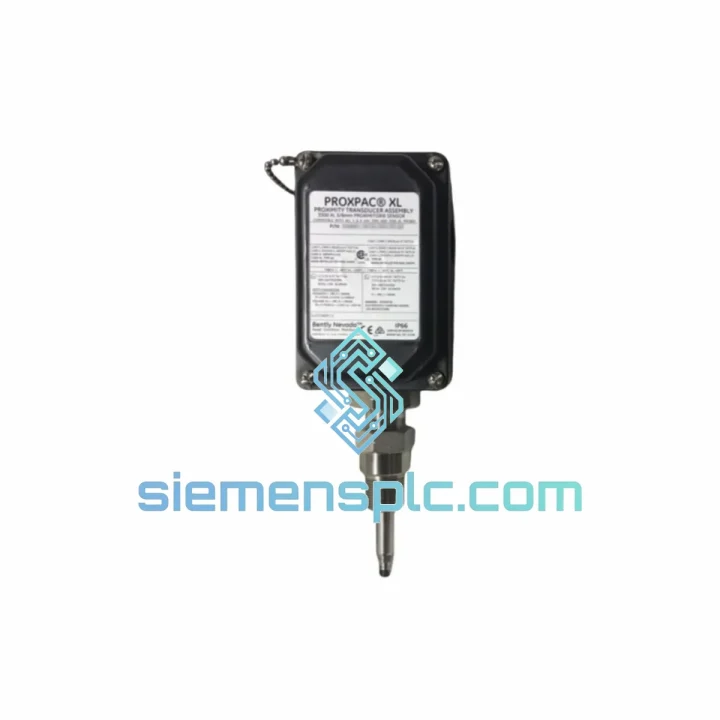

Bently Nevada 330881-28-04-70-03-02 Proximity Transducer

330881-28-04-70-03-02 — Stop the Clock on Your Downtime

Every hour a turbine or compressor sits idle costs real money — in some plants, that figure runs past $50,000 per hour. The Bently Nevada 330881-28-04-70-03-02 PROXPAC XL Proximity Transducer Assembly is one of the most failure-critical components in a 3300 XL vibration monitoring channel. When it fails, your machinery protection system goes blind. We stock this part in Xiamen and ship globally via DHL/FedEx so your team has a verified replacement on-site before the next shift change.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here are the failure modes I see most often with this assembly — and what to check before you pull the trigger on a replacement order.

Fault Code BN-01 / Gap Voltage Out of Range: The monitor is reading a DC gap voltage outside the –10 VDC ±0.5 V nominal. Nine times out of ten this is a probe gap issue, not a dead transducer. Before condemning the 330881-28-04-70-03-02, verify the physical gap with a feeler gauge. Target gap for this 8 mm probe on a 3300 XL channel is 1.0–1.5 mm (40–60 mil). If gap is correct and voltage is still off, the driver oscillator has likely drifted — replace the assembly.

Fault Code BN-02 / Not OK (NOK) Relay Tripped: The monitor’s internal comparator has flagged the signal as invalid. Check the extension cable first — the armored jacket on the 28 ft cable is robust, but connector pins at the driver junction corrode in wet environments. Clean with contact cleaner, re-torque to spec, and re-zero. If NOK persists, swap the assembly.

Replacement Procedure — Key Steps:

• De-energize and lock out the –24 VDC supply to the monitor rack before disconnecting the transducer. Hot-swapping eddy-current probes can cause false trips on adjacent channels.
• Record the existing gap voltage before removal. This gives you a baseline to match on the new assembly during re-commissioning.
• Thread engagement: The probe body uses a standard M10×1.0 thread. Do not over-torque — 5 N·m maximum. Use the supplied locknut and apply thread-locking compound only to the locknut, not the probe threads.
• Cable routing: Maintain a minimum bend radius of 50 mm on the extension cable. Tight bends at the probe exit point are the leading cause of premature cable failure in high-vibration installations.
• Re-gap and verify: After installation, adjust gap to achieve –10.0 VDC ±0.2 V at the driver output with the shaft stationary at mid-bearing. Document the final gap voltage in your maintenance log.
• No firmware or DIP switch changes required on the 3300 XL monitor when replacing a like-for-like 330881-28-04-70-03-02 assembly. The monitor auto-recognizes the PROXPAC XL driver signature. If you are replacing a different probe model, verify the monitor’s transducer type configuration in the rack software.
• Non-standard shaft materials: If your shaft is titanium, Inconel, or duplex stainless, the standard 200 mV/mil calibration will be off. Apply the material correction factor from Bently Nevada TN-13 before accepting the gap voltage reading.

Reliability in Harsh Conditions

The PROXPAC XL platform was not designed for a clean lab — it was built for the environments that destroy lesser sensors. The 330881-28-04-70-03-02 carries an IP67 rating on the probe body, meaning it survives full immersion in bearing oil mist and high-pressure wash-down without ingress. The probe tip is machined from corrosion-resistant alloy and rated to +177 °C continuous, which puts it comfortably adjacent to bearing housings on gas turbines running at full load.

Vibration immunity is where this assembly earns its specification. The armored stainless-steel braid on the 28 ft extension cable is rated to withstand 20 g broadband vibration — the kind of structural resonance you find on compressor skids and reciprocating machinery foundations. In field installations across petrochemical plants in the Middle East and offshore platforms in the North Sea, this cable construction has consistently outlasted the machinery it monitors.

Humidity and condensation are handled by the hermetically sealed driver housing. The MIL-C-5015 connector at the driver end provides a positive environmental seal when mated, preventing the moisture ingress that causes the intermittent NOK faults that plague cheaper transducer assemblies. In tropical and coastal environments — common in Southeast Asian and Gulf Coast installations — this sealing integrity is the difference between a stable monitoring channel and a chronic nuisance alarm.

The non-contact eddy-current measurement principle means there are no moving parts, no wear surfaces, and no consumables. MTBF exceeds 200,000 hours in typical service. When a 330881-28-04-70-03-02 does fail, it is almost always due to external mechanical damage to the cable or connector — not internal component degradation. That is why having a verified spare on the shelf is the only rational maintenance strategy for a critical machine.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-connected cities on the eastern seaboard, with direct DHL and FedEx hub access. Here is how a typical emergency order moves:

• Order confirmed before 14:00 CST: Same-day pick, pack, and handover to DHL Express or FedEx International Priority.
• Transit to Southeast Asia (Singapore, Thailand, Malaysia): 1–2 business days door-to-door.
• Transit to Middle East (UAE, Saudi Arabia, Qatar): 2–3 business days.
• Transit to Europe (Germany, Netherlands, UK): 2–4 business days.
• Transit to North America (USA, Canada): 3–5 business days.
• Export documentation: Commercial invoice, packing list, certificate of origin, and material safety data sheet prepared and included with every shipment. HS Code 9031.80 declared for customs clearance.
• Tracking: AWB number provided within 2 hours of carrier pickup. Real-time tracking link sent directly to your email.

For shutdown-critical orders, contact us via WhatsApp before placing your order. We can confirm stock, generate a proforma invoice, and initiate shipment preparation simultaneously — cutting 2–4 hours off the standard order processing cycle.
