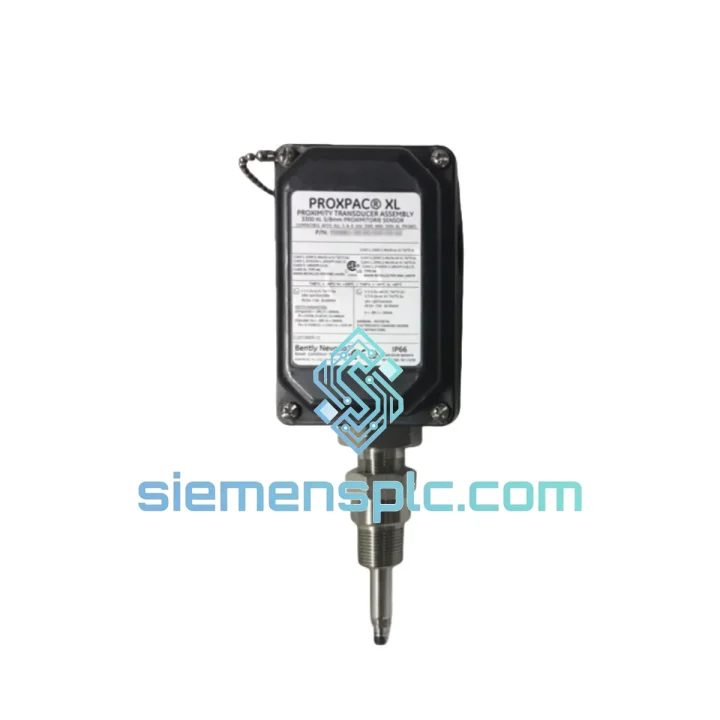

A failed proximity transducer on a gas turbine or centrifugal compressor does not give you time to wait. The moment your 3300 XL system throws a Not OK status on a radial vibration channel, the clock starts. Every hour of unplanned downtime on a critical rotating train costs between $50,000 and $500,000 depending on your process. The Bently Nevada 330881-28-06-155-03-02 is an 8mm eddy-current PROXPAC XL proximity transducer — factory-calibrated, fully integrated (probe + extension cable + connector as one matched assembly) — and we ship it from Xiamen within 24 hours of order confirmation.

This is not a generic sensor. The 330881-28-06-155-03-02 encodes a precise mechanical and electrical configuration: 28mm probe body length, 6-meter armored extension cable, 155cm total system length from probe tip to Proximitor connector, connector type -03, termination variant -02. Every digit matters. Substituting an incorrect variant will shift your gap voltage baseline and trigger false alarms or, worse, mask real shaft excursions. We stock the exact part number — not a close match.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for the 330881 series in the field:

1. Intermittent Not OK (NOK) on the Proximitor output
Ninety percent of the time this is a connector issue, not a dead probe. Before condemning the transducer, disconnect the Proximitor connector and inspect the MHV-type coaxial pin for corrosion or mechanical deformation. Measure DC resistance from probe tip to connector center pin — open circuit (>500 Ω) confirms cable break, typically at the probe-to-cable junction where the armored sheath transitions. If resistance is nominal (~25–30 Ω), the fault is in the Proximitor sensor, not the transducer.

2. Gap voltage out of linear range
If your Proximitor output reads below −1 VDC or above −21 VDC at a known mechanical gap, the probe is either physically damaged (tip chipped or corroded) or the total system cable length does not match the Proximitor calibration. The 330881-28-06-155-03-02 is factory-matched for a 6m extension. Installing a -04 (9m) or -08 (5m) variant on a Proximitor calibrated for -06 will shift the output by 1.5–3 VDC and invalidate your alarm setpoints.

3. High noise floor on vibration channel
Armor damage from cable tray abrasion breaks the outer shield continuity. This manifests as broadband noise on the dynamic (AC) vibration signal, typically 5–15 mV pk-pk at rest. Run a shield continuity check from the armor at the probe end to the connector shell. Any resistance >2 Ω indicates a compromised shield — replace the transducer assembly.

Replacement procedure checklist (field-proven sequence):

1. Record current gap voltage and vibration baseline before removal. This is your post-installation acceptance reference.
2. De-energize the Proximitor supply (−24 VDC). Do not disconnect the cable under power — the Proximitor output stage is not hot-swap rated.
3. Loosen the probe locknut (typically 17mm or 19mm AF) and back the probe out slowly. Note the thread engagement depth — this is your starting gap reference for the new probe.
4. Install the 330881-28-06-155-03-02 to the same thread depth. Verify gap voltage at Proximitor output: target −10 VDC ±0.5 VDC at nominal 1.0mm gap for 8mm probes.
5. Torque locknut to 5–7 N·m. Over-torquing will crack the probe body ceramic — this is the second most common installation error after incorrect cable length selection.
6. Re-energize and confirm: NOK LED extinguished, gap voltage within linear range, vibration noise floor <5 mV pk-pk at rest.
7. No firmware configuration or DIP switch setting is required for the transducer itself — all calibration is embedded in the Proximitor sensor. If you are replacing the Proximitor simultaneously, verify the Proximitor model matches the probe series (3300 XL 8mm).

Common fault codes on 3500 system when this transducer fails:
— 3500/40M or 3500/42M: Channel Not OK (CNO) — probe open circuit or gap out of range.
— Danger High / Danger Low — gap voltage driven to rail by shorted or open probe.
— Alert on 1X amplitude — intermittent shield fault causing noise injection into vibration channel.

Reliability in Harsh Conditions

The 3300 XL PROXPAC assembly is not a laboratory instrument. It is built to survive the environments where rotating machinery actually operates.

The armored outer jacket — stainless steel braid over PVC inner insulation — is rated for continuous mechanical contact with cable trays, conduit edges, and vibrating structures without shield degradation. The probe body is machined from 316 stainless steel with a ceramic-filled epoxy tip, resistant to hydrocarbon fluids, steam condensate, and H₂S-bearing atmospheres common in refinery and gas processing environments.

Thermal cycling is the primary long-term stress mechanism for proximity transducers. The 330881 series uses a matched-expansion coaxial cable construction: the center conductor, dielectric, and outer shield are selected for compatible thermal expansion coefficients, preventing impedance drift across the −35°C to +177°C operating envelope. In steam turbine applications where probe-to-bearing housing temperatures can swing 150°C during start-stop cycles, this matters directly to measurement stability.

Vibration immunity is addressed at the mechanical level: the probe body thread engagement (minimum 1.5× diameter) combined with the locknut torque specification prevents probe migration under continuous vibration loads up to 25g broadband. The armored cable’s minimum bend radius of 10× OD prevents shield kinking in tight cable routing scenarios.

EMC performance is governed by the coaxial shield continuity from probe tip to Proximitor connector. The factory-terminated PROXPAC design maintains shield integrity at both ends without field splices — the primary source of EMI ingress in field-assembled transducer systems.
