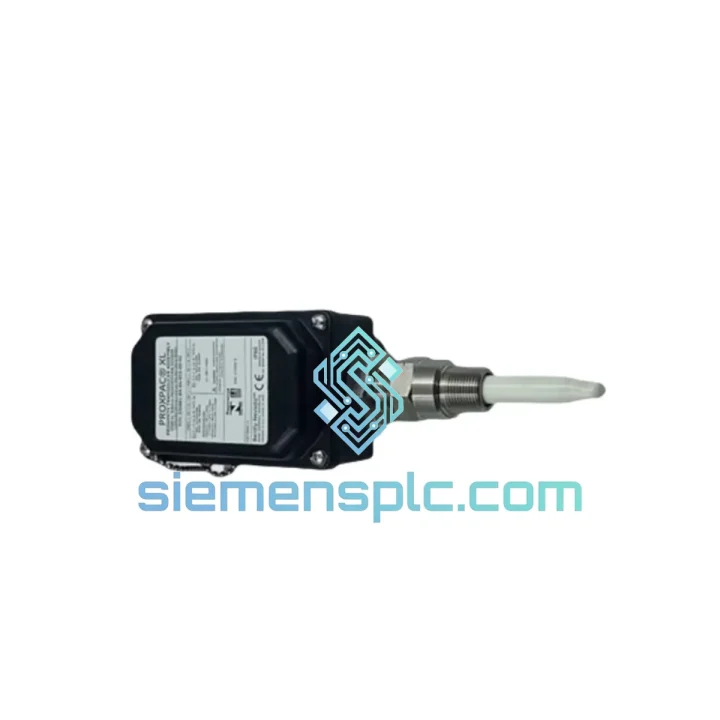

Bently Nevada 330881-28-08-050-03-02 Proximity Transducer Assembly – PROXPAC XL

330881-28-08-050-03-02: Integrated Proximity Transducer Assembly for Critical Rotating Machinery Protection

The Bently Nevada 330881-28-08-050-03-02 is a factory-matched PROXPAC XL complete assembly comprising a 3300 XL 8 mm proximity probe, a 5.0 m armored extension cable, and an integrated Proximitor® sensor — shipped as a pre-calibrated, single-part-number unit. In machinery protection architectures governed by API 670, the ability to deploy a pre-matched transducer chain without field calibration is not a convenience feature; it is a risk-reduction measure. Mismatched probe-cable-driver combinations introduce scale factor errors that propagate directly into vibration alarm setpoints, with consequences ranging from nuisance trips to undetected rotor instability. The 330881 PROXPAC XL eliminates that variable entirely.

This assembly is the preferred procurement choice for maintenance engineers managing turbomachinery fleets in petrochemical, power generation, LNG, and offshore environments where replacement windows are measured in hours, not days. Sourced and dispatched from Xiamen, China, through siemensplc.com’s verified industrial supply chain, with 12-month warranty coverage and full export documentation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL eddy-current sensing chain operates on a well-established electromagnetic induction principle, but the engineering discipline embedded in the 330881 assembly addresses several failure modes that generic proximity sensors do not.

Eddy-Current Transduction Architecture: The 8 mm probe tip generates a high-frequency oscillating magnetic field (typically 1–2 MHz carrier). When a conductive target enters the field, eddy currents are induced on the target surface, loading the probe’s LC tank circuit. The Proximitor demodulates this loading into a DC-proportional voltage output. The XL designation indicates an extended linear range compared to the standard 3300 series — the 0.25 mm to 2.26 mm window is approximately 15% wider than the non-XL equivalent, which matters in applications where shaft runout or thermal growth pushes the probe toward the limits of its linear zone.

EMC Design Discipline: The extension cable in the PROXPAC assembly is a coaxial, impedance-controlled line with continuous armored shielding. The shield is grounded at the Proximitor end only — a deliberate single-point grounding topology that prevents ground loop currents from injecting common-mode noise into the signal path. In environments with variable-frequency drives, large transformer banks, or high-current bus bars in proximity, this shielding architecture maintains signal integrity without requiring additional conduit or ferrite suppression at the field junction.

Thermal Stability: The probe body is constructed from 316 stainless steel with a PEEK (polyether ether ketone) tip insert. PEEK’s low thermal expansion coefficient (approximately 50 µm/m·°C) minimizes dimensional drift of the probe face across the −35°C to +177°C operating envelope, preserving scale factor accuracy without temperature compensation circuitry in the Proximitor. This is a passive thermal management approach — no active compensation means no additional failure mode.

Factory Matching and Traceability: Each PROXPAC assembly is calibrated as a matched set. The probe’s resonant frequency is tuned to the Proximitor’s oscillator circuit during manufacturing, and the extension cable’s characteristic impedance is verified against the probe’s source impedance. The result is a system-level scale factor accuracy of ±1% across the full linear range — a specification that cannot be reliably achieved by mixing individually purchased components from separate production lots.

Connector Reliability: The MIL-C-5015 3-pin output connector (code -03-) is rated for 500 mating cycles and provides IP67 ingress protection when fully engaged. In applications where the Proximitor is mounted in a junction box subject to vibration, the bayonet-lock mechanism of the MIL-spec connector prevents intermittent contact failures that would otherwise generate spurious vibration alarms.

System Integration Benefits

• Zero field calibration required: The factory-matched probe-cable-Proximitor chain ships with a documented scale factor, eliminating the need for gap voltage calibration curves during installation and reducing commissioning time by an estimated 2–4 hours per measurement point.
• Direct compatibility with Bently Nevada 3500/42M and 3500/40M monitor cards: The −24 VDC supply and MIL-C-5015 output connector interface directly with 3500 series I/O without adapter cables or signal conditioning modules.
• API 670 compliance out of the box: The assembly meets the transducer chain requirements of API 670 5th Edition, including scale factor tolerance, frequency response, and temperature range — simplifying documentation for new installations and insurance audits.
• Deterministic alarm response: The DC-to-10,000 Hz flat frequency response ensures that subsynchronous instabilities (e.g., oil whirl at 0.43–0.48× running speed) and high-frequency blade-pass events are captured without phase distortion, supporting accurate alarm discrimination in System 1 software.
• Reduced spare parts inventory complexity: A single PROXPAC part number replaces three separate line items (probe, cable, Proximitor), reducing MRO catalog entries and the risk of ordering mismatched components under time pressure during an unplanned outage.
• Diagnostic transparency via gap voltage monitoring: The −10 VDC nominal gap voltage provides a continuous, measurable health indicator. Drift beyond ±1 VDC from the set point indicates probe fouling, target surface degradation, or mechanical wear — detectable through standard DCS analog input monitoring without additional instrumentation.
• Compatibility with System 1 condition monitoring: The assembly’s calibration data integrates directly into Bently Nevada System 1 software, enabling automated transducer health checks, trend analysis, and predictive maintenance scheduling without manual data entry.
• Interchangeability across 3300 and 3500 monitor platforms: The 3300 XL signal standard is backward-compatible with both 3300 and 3500 series monitors, allowing the same spare assembly to serve multiple machine trains in a mixed-generation monitoring infrastructure.
