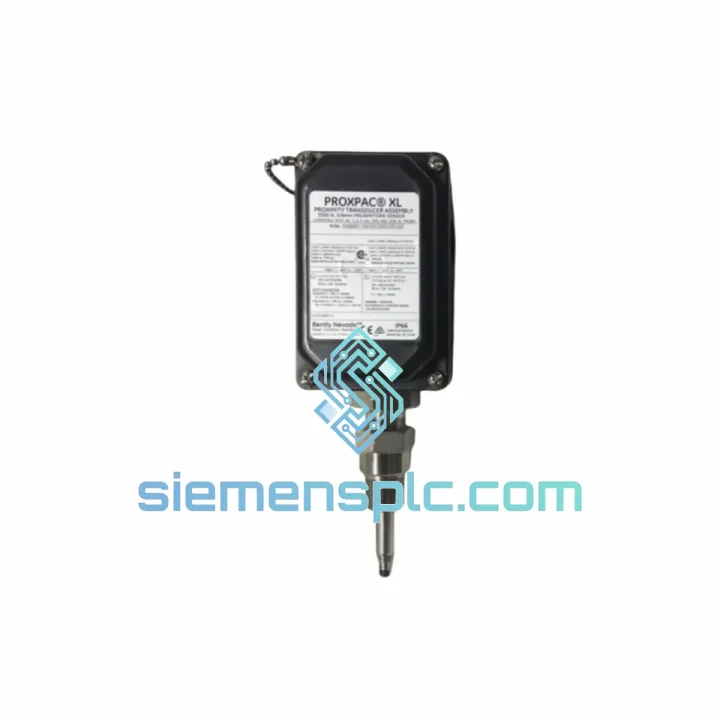

Bently Nevada 330881-BR-04-85-03-02 Proximity Transducer Assembly

330881-BR-04-85-03-02 PROXPAC XL — Stop the Clock on Your Downtime

Every minute a critical turbomachinery train sits idle, your operation bleeds money. A failed proximity transducer assembly on a gas compressor or steam turbine is not a scheduled maintenance event — it is a production emergency. The Bently Nevada 330881-BR-04-85-03-02 PROXPAC XL is stocked, inspected, and ready to leave Xiamen today. We have shipped this exact part number to refineries in the Middle East, LNG terminals in Southeast Asia, and power plants across Europe — all on emergency freight, all within 24 hours of order confirmation. If your vibration monitoring system is blind right now, this page is where your recovery starts.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field work teaches you that most PROXPAC failures fall into three categories. Knowing which one you are dealing with before you pull the assembly saves you from ordering the wrong part or misdiagnosing a monitor card fault.

Fault Pattern 1 — OK light goes red, gap voltage reads –24 VDC (rail high)
This is a probe tip open-circuit or a severed extension cable. The Proximitor® oscillator has lost its load. Before condemning the assembly, check the armored cable at the probe entry gland and at the Proximitor® input connector — these are the two highest-stress points. If continuity is lost, the full 330881-BR-04-85-03-02 assembly replacement is the correct call; field-splicing the extension cable voids the factory calibration match.

Fault Pattern 2 — Gap voltage reads –2 VDC or below (rail low), probe physically intact
Shorted probe tip or flooded Proximitor® housing. On steam turbine installations with poor gland sealing, condensate ingress into the Proximitor® enclosure is a recurring failure mode. Inspect the housing drain plug and cable entry seal. If moisture is confirmed inside the Proximitor®, do not attempt to dry and re-use — the oscillator circuit calibration will have drifted. Replace the full assembly.

Fault Pattern 3 — Noisy or erratic vibration signal, gap voltage in range
Ninety percent of the time this is a loose connector at the probe-to-extension cable junction or at the Proximitor® input. Torque the MIL-spec connectors to spec (finger-tight plus 1/4 turn with a strap wrench). If noise persists after connector re-seating, suspect a cracked probe tip ceramic — common after a rub event. A static gap-voltage linearity check (measure output at 5 known gap distances using a feeler gauge) will confirm probe degradation.

Replacement Procedure — Key Steps

• De-energize the monitor channel at the 3500 rack before disconnecting. Do not hot-swap on a live API 670 system — the –24 VDC supply can arc at the connector.
• Record the existing gap voltage before removal. Target gap for 8mm probes on most turbine applications is –10.4 VDC ± 0.5 VDC (1.0 mm gap). Your specific machine BOM may differ — check the original commissioning report.
• The 330881-BR-04-85-03-02 is a factory-matched set. Do not mix probe, cable, or Proximitor® from different serial numbers. The sensitivity calibration is performed as a system — swapping individual components introduces up to ±3% sensitivity error.
• After installation, perform a static gap check before re-energizing the monitor. Set gap to 1.0 mm using a non-ferrous feeler gauge and verify output reads –10.4 VDC ± 0.25 VDC.
• If your monitor card shows a Not OK condition after confirmed correct gap voltage, check the OK setpoint configuration in the 3500 rack software (System 1 or Rack Configuration Software). The default OK window is –2 VDC to –18 VDC — confirm this matches your channel configuration.
• For ATEX Zone 1 installations, verify the entity parameters of the replacement assembly against the associated apparatus certificate before energizing.

Reliability in Harsh Conditions

The 3300 XL PROXPAC platform was not designed for a climate-controlled instrument room. It was engineered for the conditions that actually exist on a gas turbine skid: 60°C ambient, 95% relative humidity, hydrocarbon mist, and vibration levels that would destroy a standard industrial sensor in weeks.

The probe body is constructed from 316 stainless steel with a ceramic-filled epoxy tip — chemically inert to the hydrocarbon and H2S environments common in upstream oil and gas. The armored extension cable uses a stainless steel braid over a PTFE-insulated coaxial core, providing mechanical protection against the cable chafing that kills standard instrumentation cable in congested machinery spaces. The Proximitor® housing carries an IP66 rating, with a captive drain plug and dual cable entry seals that maintain integrity through repeated thermal cycling between cold startup and full-load operating temperature.

Bently Nevada’s qualification testing for the 3300 XL series includes sinusoidal vibration per IEC 60068-2-6 (10–2000 Hz, 20 g), random vibration per IEC 60068-2-64, thermal shock cycling from –40°C to +85°C, and salt fog exposure per IEC 60068-2-11. These are not marketing claims — they are the same test protocols used to qualify instrumentation for offshore platform and military applications. When your plant is running at 105% load in a summer heat wave and the ambient around the compressor deck hits 55°C, this assembly continues to deliver the ±1% full-scale accuracy your protection system depends on.

Units in our inventory are stored in anti-static bags inside foam-lined cartons, in a temperature and humidity-controlled warehouse. Probe tips are protected with factory end caps. Every unit is visually inspected for connector integrity, cable armor condition, and housing seal status before dispatch. We do not ship units with damaged connectors or compromised seals — a failed seal in the field is a warranty claim we will not win, and more importantly, it is a machine trip you cannot afford.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL and FedEx Express gateway access. For emergency orders confirmed before 14:00 CST, same-day dispatch is standard. Here is what the logistics chain looks like from your purchase order to your instrument rack:

• Order Confirmation → Warehouse Pick: Within 2 hours of payment confirmation. Each unit is re-inspected against the order part number before packing.
• Export Documentation: Commercial invoice, packing list, and certificate of conformance prepared same day. ECCN classification and export license determination completed before handover to carrier.
• Carrier Handover: DHL Express or FedEx International Priority. Carrier selection based on destination country and your urgency level. Both carriers offer next-flight-out options for true emergencies.
• Transit Times (typical): Southeast Asia 1–2 business days | Middle East 2–3 business days | Europe 2–3 business days | North America 3–4 business days | Australia 3–4 business days.
• Customs Clearance: We provide full HS code documentation (HS 9031.80 for proximity transducer assemblies) and accurate declared values to prevent customs holds. For destinations with import duty complexity (India, Brazil, Indonesia), we advise on the correct import category before shipment.
• Tracking: AWB number provided within 4 hours of carrier pickup. Real-time tracking link sent directly to your procurement contact.

Incoterms available: EXW Xiamen, FCA Xiamen, CIF destination port, DAP destination. For orders above USD 5,000, DDP (Delivered Duty Paid) is available to select destinations — contact us to confirm eligibility for your country.
