Bently Nevada 330901-16-24-10-02-05 Proximity Transducer – 3300 XL NSv

Bently Nevada 330901-16-24-10-02-05: Eddy-Current Proximity Transducer for Critical Rotating Machinery Monitoring

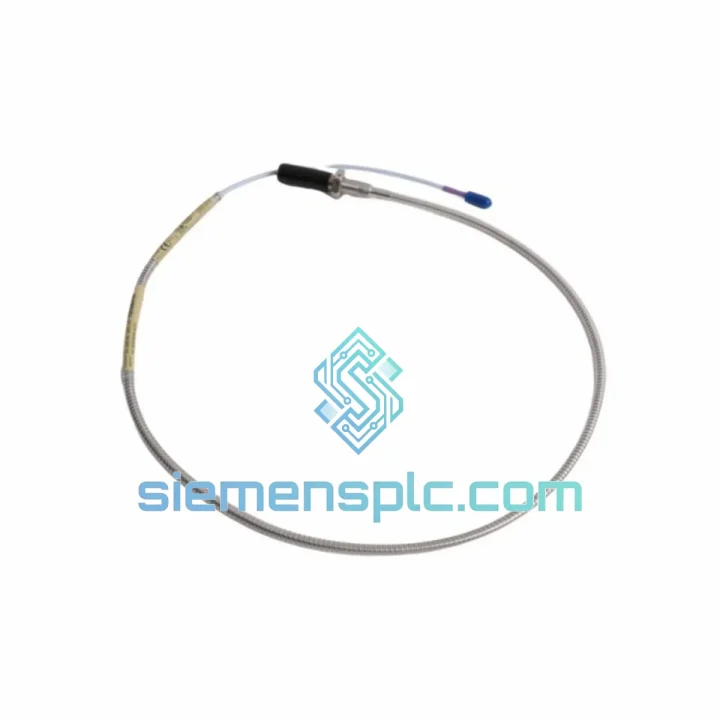

The Bently Nevada 330901-16-24-10-02-05 is a field-proven eddy-current proximity transducer belonging to the 3300 XL NSv (Non-Standard Voltage) series. Designed for continuous, non-contact measurement of shaft radial vibration, axial position, and differential expansion in high-speed rotating equipment, this transducer operates as the primary sensing element in a three-component measurement chain: probe, extension cable, and Proximitor® driver. The suffix structure encodes its physical configuration — 16-inch probe cable, 24-foot extension cable, NSv output scaling (02), and standard coaxial termination (05) — making precise part-number verification mandatory before procurement or substitution.

In turbomachinery protection systems, the transducer’s output fidelity directly determines the reliability of trip logic. The 330901-16-24-10-02-05 delivers a DC-coupled voltage signal proportional to the gap between the probe tip and the target shaft surface. This signal is conditioned by the matched NSv Proximitor® driver before being fed to Bently Nevada 3500 Series monitoring racks or equivalent DCS/PLC analog input modules. Any mismatch between probe suffix and driver calibration introduces a systematic scale-factor error that cannot be corrected in software without recalibration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330901-16-24-10-02-05 operates on the eddy-current (electromagnetic induction) principle. The probe tip contains a wound coil energized at a fixed oscillation frequency by the Proximitor® driver’s internal oscillator circuit. When the probe approaches a conductive target, eddy currents are induced on the shaft surface, loading the coil and reducing its effective inductance. The driver’s demodulation circuit converts this impedance shift into a proportional DC voltage output — the gap signal.

NSv Output Architecture: The NSv designation indicates that the driver’s demodulation gain is set to a non-standard scale factor, distinct from the standard 200 mV/mil output of the base 3300 XL series. This is not a firmware parameter — it is a hardware-level resistor network within the Proximitor® driver. Consequently, the probe and driver must be ordered and replaced as a matched pair. Substituting a standard-voltage (suffix -01-) probe into an NSv driver circuit will produce a calibration offset that propagates directly into vibration amplitude readings and alarm setpoints.

EMC Design: The coaxial cable architecture — probe cable plus extension cable — provides inherent shielding against radiated electromagnetic interference. The 10-32 coaxial connector maintains shield continuity at the junction point, preventing ground loops that would otherwise appear as low-frequency noise in the gap signal. In installations near variable-frequency drives (VFDs) or high-current bus bars, the shield must be grounded at one end only (driver end) to avoid circulating currents.

Thermal Stability: The probe body is constructed from stainless steel with a PTFE-insulated coil former, maintaining dimensional stability across the −35°C to +177°C probe operating range. Thermal expansion of the probe tip is characterized and compensated in the driver calibration, ensuring that temperature-induced gap drift remains within ±0.5% of full-scale over the rated temperature range.

Target Material Dependency: The eddy-current field penetration depth is a function of target material conductivity and permeability. The 330901 series is factory-calibrated against AISI 4140 steel. Shafts machined from 17-4 PH stainless steel, Inconel, or titanium alloys exhibit different electromagnetic properties, requiring a material correction factor or a dedicated recalibration against the actual shaft material. This is a critical consideration in aerospace and high-temperature gas turbine applications.

System Integration Benefits

• Direct rack compatibility: The 330901-16-24-10-02-05 interfaces natively with Bently Nevada 3500 Series monitoring racks via the matched NSv Proximitor® driver, eliminating signal conditioning adapters and reducing wiring complexity.
• Deterministic DC-coupled output: The DC-to-10,000 Hz frequency response captures both static position (DC gap) and dynamic vibration simultaneously on a single coaxial signal path, removing the need for separate position and vibration transducers in many installations.
• Plug-and-play calibration traceability: Each probe-driver pair ships with a factory calibration certificate traceable to NIST standards, enabling direct integration into ISO 10816 / ISO 20816 compliant condition monitoring programs without on-site recalibration.
• Standardized alarm setpoint transfer: Because the scale factor is hardware-defined, alarm and trip setpoints configured in the 3500 rack are directly transferable when replacing a failed unit with an identical part number — no setpoint recalculation required.
• DCS and PLC analog input compatibility: The Proximitor® driver output (typically −2 VDC to −18 VDC gap range) is compatible with standard ±10 V or 0–10 V analog input cards after appropriate signal conditioning, enabling integration with Siemens S7, Rockwell ControlLogix, and Honeywell Experion platforms.
• Reduced diagnostic ambiguity: The three-component system architecture (probe + extension + driver) allows fault isolation to a specific component using a substitution test, reducing mean time to repair (MTTR) compared to integrated sensor designs.
• High-temperature probe zone separation: The 16-inch probe cable physically separates the probe tip (rated to +177°C) from the extension cable junction, allowing the extension cable and driver to be routed through cooler areas of the machine enclosure without thermal derating.
• Keyphasor® phase reference integration: When used in conjunction with a Keyphasor® transducer on the same shaft, the 330901 output supports synchronous vibration analysis (1X, 2X amplitude and phase) within System 1 software, enabling precise identification of imbalance, misalignment, and rub conditions.

Quality Assurance & Global Logistics

Every Bently Nevada 330901-16-24-10-02-05 unit supplied by siemensplc.com is sourced through verified channels with full documentation traceability. Pre-shipment inspection covers visual integrity of the probe tip and coaxial connector, dimensional verification of cable lengths against the part-number suffix, and continuity/insulation resistance testing of the coaxial assembly. Units are packaged in anti-static, moisture-proof enclosures with desiccant inserts to prevent corrosion during international transit.

Shipments originate from our warehouse in Xiamen, China, with access to major international freight carriers including DHL Express, FedEx International Priority, and UPS Worldwide Expedited. In-stock units are dispatched within 1–3 business days of order confirmation. Export documentation — including commercial invoice, packing list, and Certificate of Conformance — is prepared in compliance with CN customs regulations and destination-country import requirements. For orders requiring ATEX or FM certification documentation, copies of the relevant approval certificates are included in the shipment package.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize equipment downtime. Technical support from our engineering team is available via email and WhatsApp throughout the warranty period and beyond.
