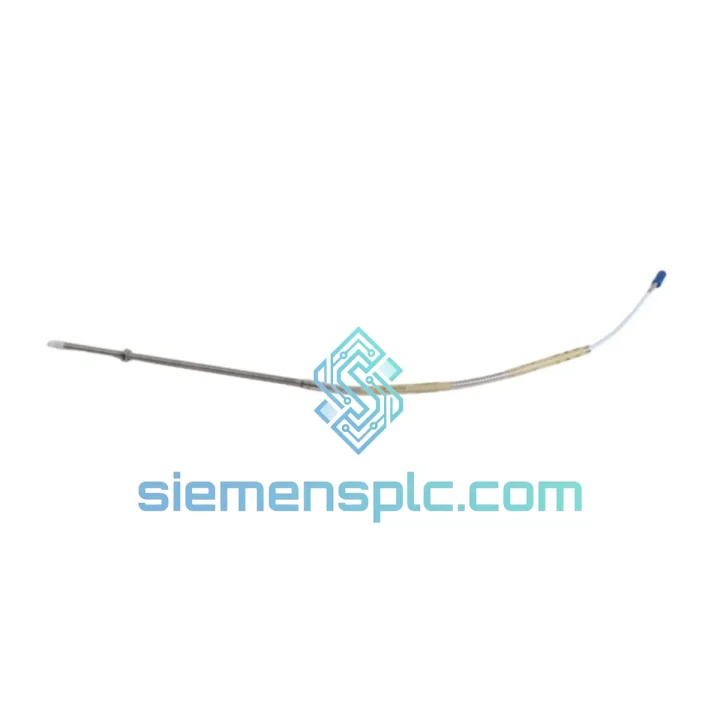

Bently Nevada 330902-00-40-10-02-05 Proximity Transducer – 3300 XL Series

330902-00-40-10-02-05 — Eddy-Current Proximity Transducer in High-Speed Rotating Machinery Protection Loops

The Bently Nevada 330902-00-40-10-02-05 is an 8 mm eddy-current non-contact proximity transducer belonging to the 3300 XL Proximity Transducer System. It is purpose-built for continuous, online shaft radial vibration and axial position measurement in critical rotating machinery — steam turbines, gas turbines, centrifugal compressors, axial compressors, large pumps, and expanders — where unplanned downtime carries multi-million-dollar consequences. The part number encodes the full system configuration: probe cable length 1.0 m (40 in), extension cable 10.0 m, driver type 02 (standard), and armoring code 05. Each segment of the model string is a functional parameter, not a marketing designation.

In a standard API 670-compliant monitoring loop, this transducer operates as the primary sensing element. The probe tip generates a high-frequency oscillating electromagnetic field (typically 1.0 MHz carrier). When a conductive target — the rotating shaft — enters the field, eddy currents are induced on the shaft surface, loading the oscillator circuit. The Proximitor® module converts this impedance change into a DC-biased analog voltage output at a scale factor of 7.87 V/mm (200 mV/mil). The resulting signal is fed directly into a 3500-series monitor rack for alarm, danger, and trip logic execution. The entire signal chain from shaft displacement to relay output operates with deterministic latency, a non-negotiable requirement in machinery protection.

Unlike piezoelectric accelerometers, the eddy-current transducer measures absolute shaft displacement relative to the bearing housing — not casing vibration. This distinction is critical for journal bearing machines where shaft orbit analysis, not casing motion, governs mechanical integrity assessment. The 330902-00-40-10-02-05 delivers a DC-coupled output, enabling both dynamic vibration measurement (AC component) and static position measurement (DC component) from a single sensor — thrust position monitoring and radial vibration from one probe installation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe operates on a self-contained LC oscillator topology embedded within the probe body. The coil wound at the probe tip forms the inductive element of the tank circuit. At nominal gap (approximately 1.27 mm for mid-range operation), the oscillator runs at its calibrated resonant frequency. As the shaft surface approaches or recedes, the mutual inductance between the coil and the conductive target shifts the effective inductance, detuning the oscillator and modulating the amplitude of oscillation. The Proximitor® module demodulates this amplitude-modulated carrier and outputs a proportional DC voltage — the fundamental transduction mechanism.

EMC and Interference Rejection: The coaxial cable architecture between probe and Proximitor® provides inherent common-mode noise rejection. The shield is driven at the cable guard potential (not grounded at both ends), eliminating ground-loop-induced noise — a frequent failure mode in long cable runs through electrically noisy machine rooms. The 3300 XL system specifies a maximum cable capacitance budget; the 10 m extension cable in this configuration (code 10) is within the calibrated capacitance envelope, preserving scale factor accuracy without field recalibration.

Thermal Stability: The probe body uses a ceramic-filled epoxy potting compound with a coefficient of thermal expansion matched to the stainless steel housing. This minimizes thermally induced dimensional changes at the probe tip that would otherwise introduce a false DC offset into the gap measurement — a critical consideration in hot-section turbine bearing pedestals where ambient temperatures can reach 150°C continuously.

Target Material Sensitivity: The eddy-current field penetration depth (skin depth) is a function of target material conductivity and permeability. The 330902 is factory-calibrated against AISI 4140 steel (μr ≈ 100, σ ≈ 4.5 MS/m). For non-standard target materials — 17-4 PH stainless, Inconel, titanium — the effective scale factor deviates by up to 30%. Field engineers must apply material correction factors or request a material-specific calibration from the factory. This is not a limitation of the sensor design; it is a fundamental property of eddy-current physics that must be managed at the system integration level.

Connector and Cable Integrity: The integral cable terminates in a standard BNC-style connector compatible with the 3300 XL extension cable. The armoring code 05 indicates a stainless steel braid over-jacket on the extension cable, providing mechanical protection against abrasion and rodent damage in industrial cable trays — a practical durability feature for permanent installations with 20+ year service life expectations.

System Integration Benefits

• Direct API 670 Compliance: The 330902-00-40-10-02-05 meets all transducer requirements of API 670 (5th Edition) for radial vibration and axial position channels, eliminating the need for third-party compliance validation during EPC project commissioning.
• Deterministic Signal Latency: The analog output signal chain — probe to Proximitor® to monitor rack — introduces less than 1 ms of signal latency. This is essential for machinery protection systems where trip response time is a contractual and safety requirement.
• Dual-Function Measurement: A single probe installation provides both dynamic vibration (AC, 0–10,000 Hz) and static position (DC) data simultaneously, reducing the number of penetrations through bearing housings and simplifying cable routing in space-constrained installations.
• Seamless 3500 Rack Integration: The transducer system is fully compatible with the Bently Nevada 3500 series monitor rack, including the 3500/42M Proximitor®/Seismic Monitor. No signal conditioning adapters or impedance matching networks are required.
• System 1® Software Compatibility: When connected through the 3500 rack to System 1® condition monitoring software, the 330902 signal chain supports full orbit plot generation, Bode plots, waterfall spectra, and trend logging — enabling predictive maintenance workflows without additional hardware.
• Hazardous Area Deployment: ATEX/IECEx/FM certifications allow direct installation in Zone 1 and Division 1 classified areas without additional barriers or zener diode safety barriers in most configurations, simplifying the Ex documentation package.
• Calibrated System Traceability: The probe, extension cable, and Proximitor® are calibrated as a matched system. The part number encodes the calibration configuration, ensuring that replacement components maintain the original scale factor without field recalibration — a significant operational advantage during emergency maintenance windows.
• Long-Term Spare Parts Availability: The 3300 XL series has been in continuous production for over two decades. Backward compatibility with legacy 3300 series racks (with appropriate Proximitor® selection) extends the useful life of existing monitoring infrastructure, protecting capital investment in installed rack systems.
• Diagnostic Transparency: The –24 VDC bias output provides an immediate health indicator: a bias voltage outside the –18 V to –22 V window at nominal gap indicates probe damage, cable fault, or Proximitor® failure — enabling rapid fault isolation without specialized test equipment.

Quality Assurance & Global Logistics

Every Bently Nevada 330902-00-40-10-02-05 unit supplied through siemensplc.com is sourced from verified industrial distribution channels with full manufacturer traceability. Authenticity is confirmed against Bently Nevada factory documentation, including lot codes and date codes where available. Each unit is inspected upon receipt for physical integrity, connector condition, and cable jacket continuity before being placed into inventory.

Packaging follows anti-static and moisture-barrier protocols appropriate for precision electronic instrumentation. Units are shipped in original manufacturer packaging where available, or in equivalent ESD-safe packaging with desiccant for long-transit international shipments.

Our logistics hub is located in Xiamen, China — a major port city with direct access to international freight forwarding services. Standard export documentation is prepared for all international orders: commercial invoice, packing list, certificate of origin, and MSDS where applicable. Incoterms supported include EXW, FOB Xiamen, and CIF destination port. Typical dispatch lead time for in-stock units is 1–3 business days. Air freight to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas is available with transit times of 3–7 business days depending on destination customs clearance.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with replacement unit dispatch upon receipt and inspection of the returned item. Certificate of Conformance (CoC) and test reports are available upon request for quality-critical procurement processes.
