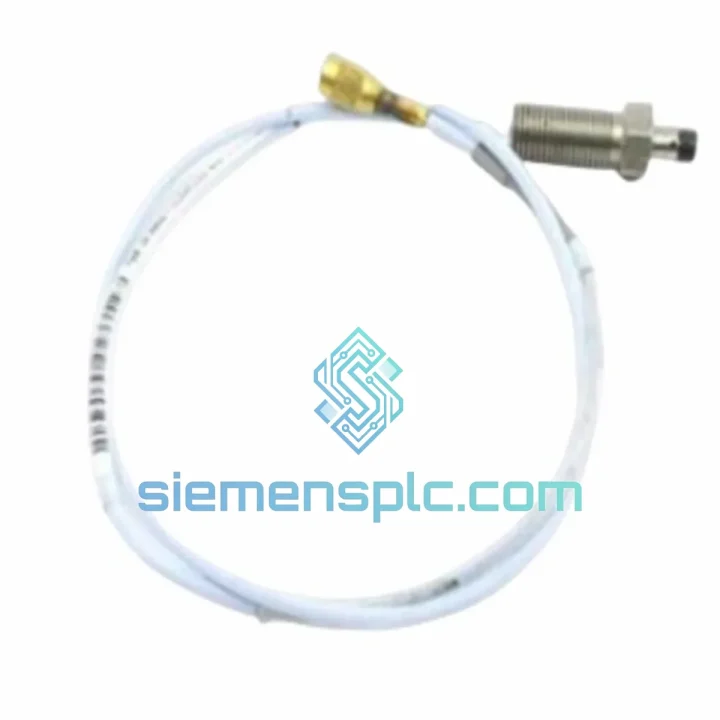

Bently Nevada 330902-40-10-02-05 Proximity Probe – 3300 XL Series

Bently Nevada 330902-40-10-02-05 — 8 mm Eddy-Current Proximity Probe with 5-Metre Extension Cable in the 3300 XL Transducer System

The 330902-40-10-02-05 is a factory-configured proximity transducer assembly within Bently Nevada’s 3300 XL 8 mm eddy-current platform. It consists of a probe body with an 8 mm sensing tip, a 1-metre integral armored cable, and a 5-metre coaxial extension cable — the complete field-replaceable sensing chain that connects to a 3300 XL Proximitor® signal conditioner. In rotating-machinery protection architectures, this assembly occupies the first stage of the measurement chain: it converts the physical gap between the probe tip and the observed shaft surface into a DC voltage signal at a sensitivity of −7.87 V/mm (−200 mV/mil), which the Proximitor then conditions and transmits to a 3500 Series monitor rack or equivalent protection system.

The 5-metre extension cable designation (the trailing -05 in the part number) is the critical differentiator for installations where thermal gradients, vibration severity, or physical access constraints require the Proximitor module to be mounted at a distance from the machine casing. This configuration is standard practice on large steam turbines, gas expanders, and centrifugal compressors where junction boxes are located 3–6 metres from the bearing housing. The matched impedance of the probe-extension-Proximitor system is factory-calibrated as a set; substituting extension cables of different lengths without recalibration will shift the output linearity and introduce measurement error.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL probe operates on the Lenz’s law induction principle: a high-frequency oscillator within the Proximitor drives an alternating current through the probe coil, generating an electromagnetic field at the tip. When a conductive target enters this field, eddy currents are induced on the target surface, loading the coil and reducing its effective inductance. The Proximitor’s demodulation circuit converts this inductance change into a proportional DC voltage output. The result is a non-contact, wear-free measurement with a frequency response flat from DC to 10 kHz — sufficient to capture shaft dynamic events including subsynchronous instability (oil whirl at 0.43–0.48×), synchronous unbalance (1×), and blade-pass excitation at multiples of running speed.

The -40 designation in the part number encodes the probe body thread and mounting configuration (M10 × 1 mm thread, standard nose length), while -10 specifies the 1-metre integral cable. The -02 segment identifies the connector style at the probe-to-extension junction. Together, these four numeric fields define a fully deterministic hardware configuration that eliminates ambiguity during procurement and maintenance planning — a design discipline that reduces field substitution errors in multi-probe installations.

EMC Design: The coaxial extension cable uses a double-shielded construction with a drain wire bonded at the Proximitor end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the vibration signal. The probe body’s stainless-steel housing provides additional electrostatic shielding at the sensing end. In environments with high variable-frequency drive (VFD) switching noise or adjacent high-current bus bars, this shielding architecture maintains signal integrity without requiring additional ferrite suppression.

Thermal Stability: The probe coil is wound on a ceramic bobbin with a low thermal coefficient of inductance, limiting sensitivity drift to less than ±0.5% across the full −35 °C to +177 °C operating range. This is particularly relevant in steam turbine bearing housings where metal temperatures can cycle between ambient and 150 °C during start-stop sequences.

System Integration Benefits

• Drop-in API 670 Compliance: The 330902-40-10-02-05 integrates directly into any 3500 Series monitor rack channel configured for 3300 XL inputs, requiring no hardware modification to the monitor card — only gap voltage verification during commissioning.
• Deterministic Frequency Response: Flat response from DC to 10 kHz ensures the probe captures both quasi-static shaft position (axial thrust, differential expansion) and high-frequency dynamic events within a single measurement channel, eliminating the need for separate static and dynamic sensors.
• Matched-Impedance System Calibration: The factory-matched probe-extension pair maintains the published −7.87 V/mm sensitivity within ±1% across the linear range, providing the measurement accuracy required for alarm and trip setpoint engineering without field recalibration of the Proximitor.
• Redundant Monitoring Architectures: Two probes mounted at 90° (X–Y configuration) on a single bearing plane provide full vector vibration data. The 330902-40-10-02-05 is dimensionally identical to all 3300 XL 8 mm probes, enabling symmetric dual-probe installations with identical cable routing geometry.
• Diagnostic Transparency via Gap Voltage: The DC component of the Proximitor output provides a continuous, real-time indication of probe-to-shaft gap. Trending this value over time reveals shaft centerline migration, bearing wear, and thermal growth — diagnostic data that is available without any additional instrumentation.
• Hazardous Area Deployment: When paired with a certified Zener barrier or galvanic isolator, the system meets IEC 60079-11 intrinsic safety requirements for Zone 1/Zone 2 (ATEX) and Division 1/Division 2 (NEC) classified areas, covering the majority of oil and gas process environments.
• Minimal Maintenance Interval: Non-contact eddy-current sensing imposes zero mechanical load on the shaft and has no wear mechanism. Mean time between replacement is governed by cable fatigue and connector corrosion rather than sensor degradation, with field service intervals typically exceeding 8 years in protected installations.
• Interoperability with Third-Party Systems: The −7.87 V/mm output is the de facto industry standard for eddy-current proximity systems. The 330902-40-10-02-05 output is compatible with Emerson CSI, GE Bently Nevada System 1, and most third-party condition monitoring platforms that accept a ±24 V DC-coupled vibration input.

Quality Assurance & Global Logistics

Every unit of the 330902-40-10-02-05 supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) OEM hardware. We do not supply rebranded, counterfeit, or reverse-engineered substitutes. Each assembly undergoes a pre-shipment inspection protocol covering connector continuity, cable sheath integrity, probe tip condition, and coaxial impedance verification. Where original OEM packaging, date codes, and traceability documentation are available from the supply chain, these are preserved and included with the shipment.

Our logistics operations are based in Xiamen, China — a major international port city with direct air freight connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. Standard international shipments are dispatched within 2–3 business days of order confirmation via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with full tracking and commercial invoice documentation for customs clearance. For critical shutdown situations requiring same-day dispatch, contact our team directly to confirm stock availability and arrange priority freight.

Export documentation includes a commercial invoice, packing list, and certificate of origin. For customers requiring additional documentation — such as a certificate of conformance, material test report, or end-user declaration — please specify requirements at the time of inquiry. All shipments are packed in anti-static foam-lined cartons with moisture-barrier sealing, appropriate for air freight of sensitive electronic components.

A 12-month warranty applies from the date of shipment, covering manufacturing defects and verified OEM component failures under normal operating conditions.
