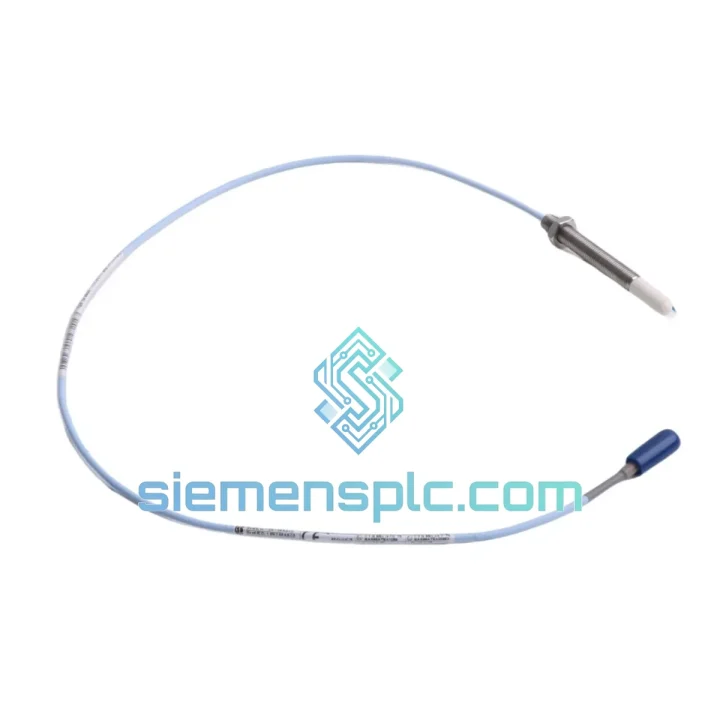

Bently Nevada 330903-00-03-10-01-CN Proximity Probe – 3300 NSv

Bently Nevada 330903-00-03-10-01-CN: 8mm Eddy Current Proximity Probe for Rotating Machinery Protection

The 330903-00-03-10-01-CN is a factory-calibrated, 8mm eddy current proximity probe manufactured by Bently Nevada as part of the 3300 NSv measurement system. It functions as the primary sensing element in a three-component signal chain — probe, extension cable, and proximitor/oscillator-demodulator — delivering continuous, non-contacting displacement measurements to machinery protection monitors. In rotating equipment protection, the probe’s role is unambiguous: it converts the physical gap between its tip and a conductive shaft surface into a proportional DC voltage, providing the raw signal from which radial vibration amplitude, shaft centerline position, and eccentricity are derived. This data feeds directly into trip and alarm logic within Bently Nevada 3500 or 3300 series monitors, making the probe the first and most critical link in any API 670-compliant machinery protection system (MPS).

The CN suffix in the part number designates standard target material calibration — optimized for AISI 4140 steel shafts, the most common journal bearing shaft material in turbomachinery. The -10- field specifies a 1.0 m integral probe cable, which must be matched with the corresponding extension cable length to maintain total system calibration. Deviation from the specified total cable length alters the LC resonant circuit characteristics of the proximitor, introducing scale factor error that cannot be corrected in software.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330903-00-03-10-01-CN is grounded in Faraday’s law of electromagnetic induction. The probe tip houses a wound coil driven by a high-frequency oscillator circuit (typically 1.0 MHz carrier) embedded in the paired proximitor. This oscillator energizes the coil, generating an alternating electromagnetic field that penetrates the conductive shaft surface. As eddy currents are induced in the target, they create a counter-magnetic field that loads the oscillator circuit — the resulting change in coil impedance is demodulated into a DC voltage linearly proportional to the probe-to-shaft gap.

EMC Design: The coaxial cable architecture — probe integral cable plus 330130 extension — forms a shielded transmission line that rejects common-mode electrical noise. The shield is grounded at the proximitor end only, preventing ground loop currents that would introduce 50/60 Hz interference into the displacement signal. In high-voltage switchgear environments or near variable-frequency drives, this single-point grounding topology is essential for maintaining signal integrity below the 1 mV noise floor required for accurate sub-mil vibration resolution.

Thermal Stability: The probe’s stainless steel body and PTFE-insulated cable maintain dimensional and electrical stability across the full –35°C to +177°C operating envelope. At elevated temperatures, the coil’s copper winding resistance increases, but the 3300 NSv proximitor’s internal compensation circuit adjusts oscillator drive current to maintain the 200 mV/mil scale factor within ±1% — a critical requirement for API 670 alarm setpoint accuracy.

Target Material Sensitivity: The CN calibration is optimized for AISI 4140 steel (relative permeability μr ≈ 100, electrical conductivity σ ≈ 4.0 MS/m). When used on non-standard target materials — such as Inconel 718 or titanium alloys — the eddy current penetration depth and induced current density differ, shifting the effective scale factor. For non-standard targets, Bently Nevada offers alternative calibration suffixes; using the CN variant on incompatible materials without recalibration introduces systematic measurement error that cannot be corrected at the monitor level.

System Integration Benefits

• Direct API 670 Compliance: The 330903-00-03-10-01-CN is designed and tested to API 670 5th Edition, the governing standard for machinery protection systems in the oil & gas and power generation industries. No additional field calibration is required to meet alarm and trip setpoint accuracy requirements.
• Zero-Wear Measurement: Non-contacting eddy current technology eliminates mechanical wear on both the probe and the shaft surface, enabling continuous 24/7 monitoring without scheduled sensor replacement intervals — a direct reduction in planned maintenance cost.
• DC-to-10 kHz Bandwidth: The flat frequency response from 0 Hz captures static shaft position (eccentricity, thermal bow) while the 10 kHz upper limit resolves high-frequency events such as blade-pass frequencies in multi-stage compressors and gear mesh frequencies in parallel-shaft gearboxes.
• Plug-Compatible Replacement: Identical form factor and electrical interface to all 3300 NSv 8mm probes. Field replacement requires no proximitor reconfiguration, no monitor re-ranging, and no software parameter changes — minimizing mean time to repair (MTTR) during unplanned outages.
• Deterministic Signal Latency: The analog output signal from the proximitor reaches the monitor input with propagation delay determined solely by cable length (approximately 5 ns/m). There is no digital conversion latency in the measurement chain, ensuring that vibration trip signals reach the monitor within the sub-millisecond response time required by API 670 Section 5.
• Diagnostic Transparency via Gap Voltage: The DC gap voltage output provides a continuous, real-time indicator of probe installation integrity. A gap voltage outside the –10 VDC ±2 V commissioning window indicates probe misalignment, shaft eccentricity shift, or cable fault — enabling maintenance teams to distinguish sensor faults from genuine machinery events without removing the probe from service.
• Multi-Parameter Measurement from a Single Probe: A single 330903-00-03-10-01-CN installation can simultaneously provide radial vibration (AC component), average shaft centerline position (DC component), and slow-roll runout compensation data to the monitor — three diagnostic parameters from one sensor point, reducing wiring complexity and penetration count in pressurized bearing housings.
• Compatibility with Bently Nevada System 1 Software: The analog output integrates directly with Bently Nevada System 1 condition monitoring software via the 3500 monitor rack’s Ethernet gateway. This enables trend logging, alarm history, and orbit plot generation without additional signal conditioning hardware.

Quality Assurance & Global Logistics

Every 330903-00-03-10-01-CN unit supplied through siemensplc.com is sourced from verified industrial automation distribution channels with full traceability to Baker Hughes / Bently Nevada manufacturing records. Prior to dispatch from our Xiamen, China facility, each probe undergoes a pre-shipment inspection protocol covering: physical housing integrity, connector thread condition, cable insulation continuity (measured at 500 VDC), and coil resistance verification against factory specification. Units that do not pass all inspection criteria are quarantined and not offered for sale.

Factory calibration certificates and material traceability documentation are available upon request for critical-service applications requiring QA package submission. All units are stored in a climate-controlled, ESD-safe warehouse environment to preserve cable insulation dielectric properties and prevent moisture ingress into the coaxial connector interface.

Shipping from Xiamen, China: Standard dispatch is within 3–5 business days of order confirmation. DHL Express and FedEx International Priority are available for urgent plant shutdown scenarios, with typical transit times of 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. All shipments include commercial invoice, packing list, and country-of-origin documentation. Export classification and customs documentation are prepared in compliance with applicable trade regulations. A 12-month warranty covers manufacturing defects from the date of dispatch.
