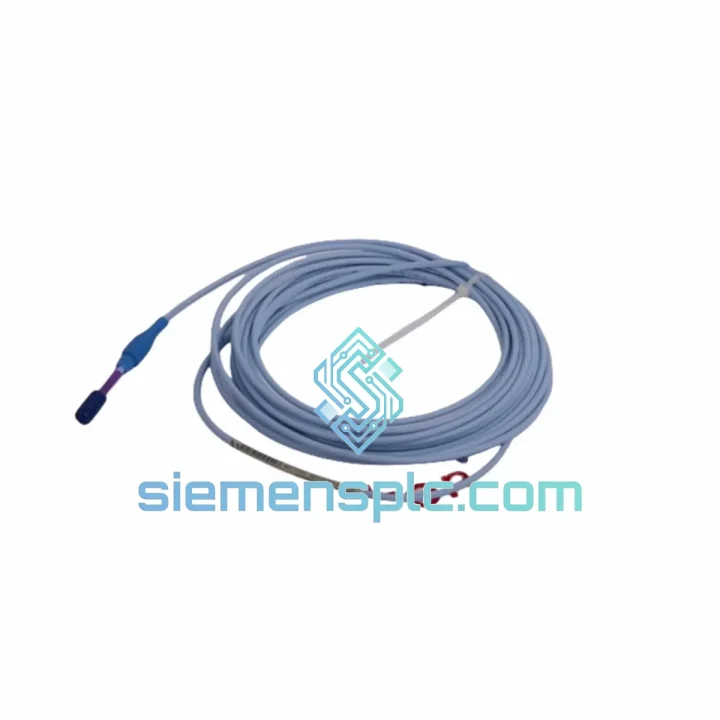

Bently Nevada 330903-00-04-05-02-CN Proximity Probe – 3300 XL Series

Bently Nevada 330903-00-04-05-02-CN: 8mm Eddy-Current Proximity Probe in Rotating Machinery Protection Loops

Within a continuous machinery protection architecture, the proximity probe occupies the most upstream position in the measurement chain — it is the physical transducer that converts rotor shaft displacement into a proportional DC voltage signal. The Bently Nevada 330903-00-04-05-02-CN is an 8mm eddy-current proximity probe belonging to the 3300 XL Proximity Transducer System, a platform engineered specifically for shaft radial vibration, axial position, and differential expansion measurement on critical rotating equipment. This particular configuration ships with a 5-meter (16.4 ft) factory-terminated integral cable and a CN-standard connector, making it directly compatible with Bently Nevada Proximitor® signal conditioners deployed across Chinese domestic turbomachinery installations.

The probe operates on the eddy-current principle: a high-frequency oscillator (typically 1.0 MHz) drives an LC tank circuit through the probe coil. When a conductive target — the rotating shaft — enters the probe’s electromagnetic field, eddy currents are induced on the target surface, loading the tank circuit and reducing its oscillation amplitude. The Proximitor® demodulates this amplitude change into a linear DC output voltage, with a nominal scale factor of 7.87 V/mm (200 mV/mil). Because the measurement is entirely non-contact, there is no mechanical wear, no lubrication requirement, and no signal degradation over service life under normal operating conditions.

The 330903-00-04-05-02-CN is the standard probe component in a three-part measurement chain: probe → extension cable (if required) → Proximitor® sensor. The probe’s integral 5-meter cable eliminates the need for a separate extension cable in most turbomachinery bearing pedestal installations, reducing connector count and the associated risk of signal discontinuity. The CN connector at the cable terminus mates directly with the Proximitor® input port without adapters, preserving the factory-calibrated impedance characteristics of the complete transducer system.

In API 670-compliant machinery protection systems, this probe provides the raw displacement signal that feeds radial vibration monitors, axial position monitors, and differential expansion monitors within the Bently Nevada 3500 Series rack. The monitor compares the real-time displacement signal against configurable alert and danger setpoints, triggering alarms or machine trips when shaft dynamic behavior exceeds safe operating envelopes. The probe’s DC to 10,000 Hz frequency response ensures that both quasi-static position changes and high-frequency dynamic events — including sub-synchronous instability, blade-pass excitation, and gear mesh frequencies — are captured without bandwidth-induced attenuation.

Mechanically, the 330903 probe body is constructed from stainless steel with a threaded barrel for installation into a probe holder or bracket. The probe tip is encapsulated in a chemically resistant polymer that protects the sensing coil from process fluid ingress, condensation, and mechanical contact during installation. The integral armored cable provides mechanical protection against abrasion and crush loads in the bearing housing environment, while the cable’s electrical shielding attenuates externally coupled electromagnetic interference before the signal reaches the Proximitor®.

Genuine Bently Nevada 330903-00-04-05-02-CN units sourced through siemensplc.com are supplied with full traceability documentation, including serial number records and date codes. Each unit is verified for connector integrity and cable continuity prior to dispatch. Stock is held in Xiamen, China, with export capability to all major industrial markets via DHL Express, FedEx International Priority, and sea freight consolidation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330903-00-04-05-02-CN probe functions as a passive LC element within the Proximitor®-driven oscillator circuit. The probe coil’s inductance (L) and the Proximitor®’s internal capacitance (C) form a resonant tank circuit. As the air gap between the probe tip and the target shaft changes, the effective inductance of the coil changes proportionally, shifting the oscillation amplitude. The Proximitor® demodulates this amplitude-modulated carrier and outputs a calibrated DC voltage. This architecture places the active electronics — the oscillator, demodulator, and output buffer — entirely within the Proximitor® enclosure, away from the high-temperature, high-vibration environment at the bearing housing. The probe itself contains no active components, which is a deliberate design choice that eliminates the primary failure modes associated with semiconductor junction degradation at elevated temperatures.

The EMC design of the 330903 integral cable is based on a coaxial construction with a continuous outer shield bonded to the probe body ground. This shield intercepts capacitively coupled interference from adjacent power cables, variable-frequency drives, and high-current bus bars — all common sources of electromagnetic noise in turbomachinery environments. The shield is grounded at the Proximitor® end only (single-point grounding), preventing ground loop currents that would otherwise appear as low-frequency noise on the displacement signal. The armored outer jacket provides a secondary mechanical barrier that prevents shield damage from cable routing through conduit or cable trays.

The probe tip’s polymer encapsulant serves a dual function: it provides electrical insulation between the sensing coil and any conductive process fluid that may contact the probe tip, and it establishes a defined dielectric boundary that stabilizes the coil’s self-capacitance. Variations in self-capacitance would shift the resonant frequency of the tank circuit and introduce a scale factor error. The encapsulant’s dielectric constant is selected to minimize temperature coefficient of capacitance across the probe’s rated operating range, contributing to the system’s overall scale factor stability of ±1% across temperature.

The 5-meter integral cable length is not arbitrary. Bently Nevada’s system calibration is performed with the probe and cable as a matched pair. The cable’s distributed capacitance and resistance are factored into the Proximitor®’s internal compensation network. Substituting a different cable length — or splicing the integral cable — alters the total cable impedance and introduces a scale factor shift that cannot be corrected without recalibration. This is why the 330903-00-04-05-02-CN (5m) and the 330903-00-04-05-02-00 (standard) are treated as distinct, non-interchangeable part numbers in API 670 documentation packages.

System Integration Benefits

• Direct Proximitor® compatibility: The CN connector mates without adapters to Bently Nevada 3300 XL Proximitor® units (e.g., 330180 series), preserving the factory-calibrated impedance match and eliminating adapter-induced signal reflections.
• Deterministic frequency response: The DC-to-10 kHz bandwidth captures all machinery fault signatures within the API 670 monitoring scope — including 1X/2X vibration, sub-synchronous whirl, and high-order gear mesh harmonics — without requiring external signal conditioning or anti-aliasing filters at the monitor input.
• Reduced connector count: The 5-meter integral cable eliminates the probe-to-extension-cable connector junction present in shorter probe configurations, removing a potential source of intermittent contact resistance that would appear as spurious high-frequency noise on the vibration channel.
• Zero-wear measurement principle: Non-contact eddy-current sensing produces no mechanical loading on the shaft and no probe wear over service life, making the 330903 suitable for continuous, unattended operation in base-load power generation and pipeline compression applications.
• API 670 documentation traceability: Each probe ships with serial number and date code records that satisfy the traceability requirements of API 670 Section 8 and support ITP (Inspection and Test Plan) documentation for EPC project commissioning packages.
• Wide thermal operating envelope: The –35°C to +177°C rating covers both arctic pipeline compression stations and high-temperature steam turbine bearing housings without requiring probe derating or special installation provisions.
• ATEX/IECEx system compatibility: When installed as part of a certified 3300 XL system with appropriate Zener barriers or galvanic isolators, the probe supports installation in Zone 1/Zone 2 (Gas Group IIC) classified areas, meeting the hazardous area requirements of offshore platforms and petrochemical process units.
• Drop-in retrofit geometry: The 330903 probe body thread and tip geometry are dimensionally identical to earlier 3300 series probes, allowing direct replacement in existing probe holders without machining or bracket modification — a critical factor for minimizing planned maintenance outage duration.

Quality Assurance & Global Logistics

Every Bently Nevada 330903-00-04-05-02-CN unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification sequence. Visual inspection confirms probe tip encapsulant integrity, cable jacket continuity, and connector pin condition. Electrical verification checks coaxial cable continuity and shield isolation resistance. Serial number and date code are recorded against the shipment documentation to support end-user traceability requirements.

Units are packaged in anti-static foam-lined cartons with humidity indicator cards. For export shipments, we prepare commercial invoices, packing lists, and certificates of conformance aligned with the destination country’s import documentation requirements. Xiamen’s port infrastructure supports direct container loading for sea freight and same-day handover to DHL Express and FedEx International Priority for air freight. Transit times to major industrial hubs: Southeast Asia 2–4 days, Middle East 3–5 days, Europe 5–7 days, North America 5–8 days via air express. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment.
