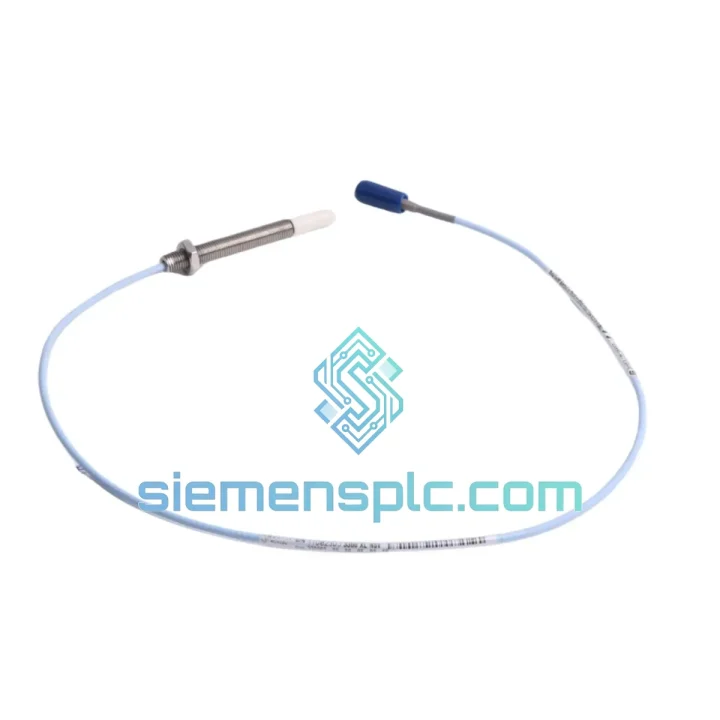

Bently Nevada 330903-00-10-10-02-05/CN Proximity Extension Cable

330903-00-10-10-02-05/CN — Stop the Clock on Your Downtime

Every hour a turbine or compressor sits idle costs real money — production losses, penalty clauses, maintenance crew standing by. When the fault trace points to the proximity transducer extension cable, you need the right part on-site today, not in three weeks. The Bently Nevada 330903-00-10-10-02-05/CN is in stock at our Xiamen warehouse. We ship DHL/FedEx Express within 24 hours of order confirmation. That is the only number that matters when your plant is down.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 3300 NSv system surfaces the same failure modes repeatedly. Before you pull the cable, confirm the fault is actually in the extension cable and not the probe or proximitor — a misdiagnosis costs you another round-trip.

Step 1 — Isolate the fault. Disconnect the extension cable at both ends. Measure DC resistance between the center conductor and shield: should read open circuit (no continuity). Any measurable resistance indicates an internal short — the cable is the culprit. If resistance is correct, reconnect and measure the proximitor output voltage. A reading outside the −2 VDC to −18 VDC window with the probe at nominal gap points to the proximitor, not the cable.

Step 2 — Check connector seating. The most common field failure on this cable is not the cable itself — it is a corroded or improperly seated coaxial connector. Inspect the SMA-style connector under a flashlight. Any green oxidation or mechanical deformation on the center pin requires connector replacement or full cable swap. Do not attempt to clean with abrasive — you will alter the contact geometry and introduce impedance mismatch.

Step 3 — Verify system matching before installation. The 330903 series is calibrated exclusively for the 3300 NSv 8 mm probe. Do not mix with legacy 3300 XL probes (part numbers 330130-xx or 330180-xx). Mismatched systems produce a linear output error of up to 15% — enough to trigger nuisance trips or, worse, mask a real vibration event. Check the probe label before connecting.

Step 4 — Cable routing discipline. Route the extension cable away from high-voltage power cables and VFD output conductors. Minimum separation: 300 mm. The double-shield construction handles normal plant EMI, but sustained inductive coupling from a 480 V VFD at close range will saturate the shield and inject noise into the 3300 NSv signal chain. Use dedicated cable trays where possible.

Step 5 — Maximum total cable length. The 3300 NSv system supports a maximum combined cable length of 9 m (30 ft) — integral probe cable plus extension cable. Exceeding this degrades sensitivity and linearity. The 330903-00-10-10-02-05/CN provides 3.05 m (10 ft). If your installation requires a longer run, contact us — we stock alternative length variants.

Common fault codes associated with this cable:

• Alert/Danger — High Vibration (sustained): Often caused by a degraded cable shield allowing EMI injection. Swap cable first before adjusting alarm setpoints.
• Proximitor OK light off / no output: Check cable continuity. An open center conductor (broken internal wire from mechanical stress) kills the entire measurement loop.
• Erratic gap reading / output oscillation: Intermittent connector contact. Reseat connectors; if fault persists, replace cable.
• System calibration drift after maintenance: Verify the replacement cable is the correct length variant. A different cable length changes the system capacitance and shifts the calibration curve.

Reliability in Harsh Conditions

The 330903-00-10-10-02-05/CN is not a general-purpose instrumentation cable dressed up with a Bently Nevada label. It is a purpose-engineered component that has been validated inside operating turbine halls, offshore platform machinery spaces, and petrochemical compressor trains where the environment actively tries to kill instrumentation.

The fluoropolymer jacket resists continuous exposure to turbine lube oil, hydraulic control fluid, and the cleaning solvents used during scheduled maintenance outages. It does not crack, swell, or delaminate under these exposures — failures that are common with PVC-jacketed alternatives that look similar on the shelf but fail within 18 months in service.

Vibration is the other killer. The cable is routed through machinery structures that transmit broadband vibration from the rotating equipment itself. The internal construction uses a stranded center conductor with a controlled lay angle that maintains electrical continuity under continuous flexing. A solid conductor would work-harden and fracture at the first bend point within months. The double-shield braid is similarly constructed for flex life, not just EMI performance.

Temperature cycling between cold startups and full-load operating temperatures — a range that can span 80 °C in a single shift — stresses every material interface in the cable. The connector-to-jacket interface, the shield termination, the dielectric material. All of these are validated across the full −40 °C to +85 °C operating range. The /CN suffix variant has additionally passed Chinese national standard environmental testing required for domestic market compliance.

Every unit we ship is inspected before it leaves the warehouse: connector pin geometry, jacket integrity, and label accuracy against the purchase order. We do not ship units with cosmetic damage, even when the electrical performance is unaffected — because a damaged label creates a traceability problem at your next audit.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport has direct DHL and FedEx Express freighter connections to major hubs — Frankfurt, Memphis, Dubai, Singapore — with onward connections covering every industrial region globally.

Standard process: order confirmed → warehouse picks and inspects the unit → commercial invoice and packing list generated → DHL/FedEx Express label printed → handed to carrier same day for orders confirmed before 15:00 CST. Transit times from Xiamen: Southeast Asia 1–2 days, Europe 3–4 days, North America 4–5 days, Middle East 3–4 days, Australia 3–4 days.

For customers in China, we ship via SF Express or JD Logistics with next-day delivery to major industrial cities including Shanghai, Beijing, Chengdu, Wuhan, and Guangzhou. Same-day dispatch for orders confirmed before 14:00 CST.

We provide the airway bill number immediately upon dispatch so your maintenance planner can track the shipment in real time and coordinate the installation crew accordingly. For critical shutdowns where the part must arrive on a specific date, contact us before ordering — we will confirm the routing and commit to a delivery date in writing.

Export documentation for the 330903-00-10-10-02-05/CN is straightforward. The /CN suffix variant is already cleared for China import. For export to other markets, we prepare the commercial invoice, packing list, and certificate of origin. A Certificate of Conformance is available upon request at no additional charge.
