Bently Nevada 330904-00-04-10-02-05/CN Proximity Probe

Bently Nevada 330904-00-04-10-02-05/CN – Stop the Clock on Your Unplanned Shutdown

Every hour a turbine or compressor train sits idle costs real money. In oil & gas and power generation, unplanned downtime figures routinely exceed $50,000 per hour when you factor in lost throughput, emergency labor, and contractual penalties. When the root cause is a failed proximity probe — a component that costs a fraction of that figure — the only variable that matters is how fast you can get a verified replacement on-site.

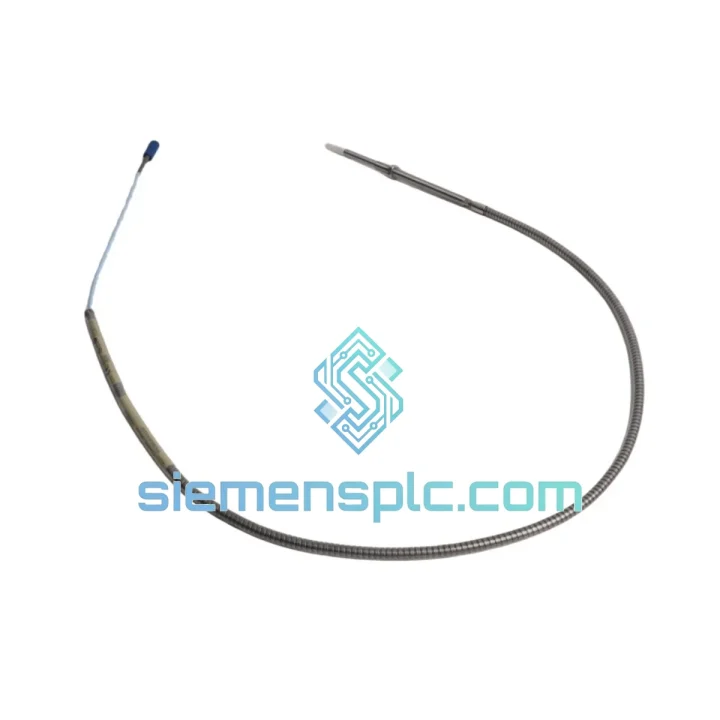

The Bently Nevada 330904-00-04-10-02-05/CN is a 3300 NSv Series eddy-current proximity probe configured for the China market, with a 4 mm short-body tip, 10 ft integral cable, and 2 m extension. It is a direct, like-for-like replacement for any failed 330904-series probe in an existing 3300 NSv measurement chain. No monitor reconfiguration. No sensitivity recalibration. Pull the failed unit, install this one, verify gap voltage, and restart. We stock it in Xiamen and ship globally via DHL and FedEx Express — door-to-door in 3–7 business days to most destinations.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Most common failure modes for 330904-series probes in the field:

• Cable fatigue fracture at the probe body junction: The most frequent failure point. Caused by sustained vibration in machinery enclosures where the cable is not properly clamped within 50 mm of the probe body. Symptom: intermittent or total loss of output signal; monitor displays –24 VDC rail voltage (open circuit). Inspect the cable armor at the probe-body exit point before condemning the probe electronics.
• Connector contamination / oxidation: Oil mist ingress into the coaxial connector causes increased contact resistance and signal noise. Symptom: elevated noise floor on the vibration channel, erratic gap voltage readings. Clean with isopropyl alcohol and re-torque to 0.9 N·m before replacing the probe.
• Probe tip impact damage: Occurs during rotor rub events or improper installation. Symptom: non-linear output across the measurement range; gap voltage does not track linearly with feeler gauge verification. A damaged tip cannot be field-repaired — replace the probe.
• Incorrect gap setting after replacement: The 3300 NSv 8 mm probe requires a nominal gap of 1.0 mm (40 mil) for mid-range operation. At –24 VDC supply, this corresponds to approximately –10.4 VDC output from the Proximitor. Verify with a calibrated feeler gauge and a precision voltmeter before returning the machine to service.

Step-by-step replacement procedure (field reference):

1. Isolate the monitor channel and confirm the machine is at rest or in a safe state per your site LOTO procedure.
2. Disconnect the extension cable from the Proximitor sensor. Note the gap voltage reading before disconnection for reference.
3. Loosen the probe locknut and back the probe out of the bracket. Count and record the number of turns for reference during reinstallation.
4. Install the 330904-00-04-10-02-05/CN replacement. Thread in to the same approximate depth, then fine-adjust for target gap using a feeler gauge.
5. Torque the locknut to 5 N·m. Do not over-torque — the probe body thread is M10 x 1.0 and will strip if over-stressed.
6. Reconnect the extension cable. Power the Proximitor and verify output voltage: –10.4 VDC ±0.5 VDC at 1.0 mm gap is the acceptance criterion for steel targets.
7. Check the monitor channel for alarm and danger setpoints — confirm they have not been altered during the maintenance window.
8. Document the replacement in the equipment maintenance log with the new probe serial number and gap voltage reading.

Note: If replacing a probe in a redundant (dual-probe) radial vibration channel, replace both probes simultaneously if the second probe has equivalent service hours. Mismatched probe ages in a redundant pair introduce asymmetric drift that complicates alarm validation.

Reliability in Harsh Conditions

The 330904-00-04-10-02-05/CN is built to operate continuously in environments that would degrade lesser sensors within months. The probe body is machined from 316 stainless steel, providing resistance to H₂S-bearing atmospheres, chloride-laden marine air, and the hydrocarbon condensate found in compressor bearing housings. The integral cable uses a multi-layer construction: an inner PTFE dielectric, a braided copper shield, and an outer stainless steel armor jacket rated for continuous flexure at frequencies up to 200 Hz.

Thermal performance is validated across the full –35°C to +177°C range at the probe tip — covering everything from arctic pipeline installations to hot-section gas turbine bearing pedestals where ambient temperatures routinely exceed 120°C. The eddy-current sensing coil is encapsulated in a thermally stable epoxy compound that maintains dimensional stability across this range, preventing sensitivity drift that would otherwise require periodic field recalibration.

EMC performance meets IEC 61000-4 series requirements. The coaxial cable construction provides greater than 60 dB of common-mode rejection, which is critical in switchgear rooms and motor control centers where high-frequency switching transients from VFDs can corrupt vibration signals on unshielded sensor cables. In installations where the probe cable runs parallel to power cables for more than 1 m, the armor jacket provides an additional layer of electrostatic shielding beyond the inner braid.

Ingress protection at the probe body is rated IP67 — the probe can be fully submerged in oil or water for short durations without degradation of the sensing element. This matters in flooded bearing housing scenarios during machine coastdown events.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geographic position gives us consistent access to DHL Express, FedEx International Priority, and UPS Worldwide Express services with daily cutoff times that allow same-day dispatch for orders confirmed before 15:00 CST.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Malaysia, Thailand): 2–4 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–5 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 4–6 business days via DHL Express
• North America (USA, Canada): 4–7 business days via FedEx International Priority
• Australia / New Zealand: 4–6 business days via DHL Express
• South America (Brazil, Chile): 6–10 business days via FedEx or DHL

Every shipment includes a commercial invoice, packing list, and certificate of origin as standard. For destinations requiring import permits or end-user declarations for industrial automation components, our export compliance team prepares the necessary documentation in advance to prevent customs clearance delays. Real-time tracking numbers are provided at the time of dispatch. For emergency orders, we offer a dedicated expedite service with priority pick-and-pack and guaranteed same-day dispatch.

Packaging is engineered for the probe’s sensitivity: each unit is individually wrapped in anti-static foam, sealed in a moisture-barrier bag with desiccant, and placed in a rigid outer carton rated for 1.2 m drop impact. The probe tip is protected by a machined plastic cap that remains in place until installation. This packaging standard ensures the probe arrives with its factory calibration intact, regardless of transit handling conditions.
