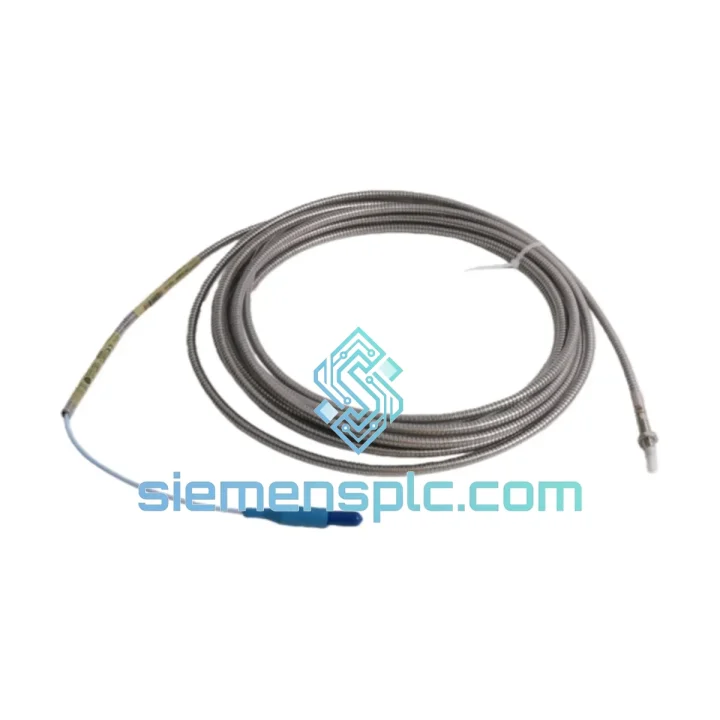

Bently Nevada 330904-00-05-70-01-05 Proximity Probe

330904-00-05-70-01-05 — Stop the Clock on Your Downtime. Ship Today.

Every hour a critical turbine or compressor sits idle costs real money — production losses, contractual penalties, and emergency labor that no maintenance budget planned for. When your Bently Nevada NSv proximity probe fails, the vibration channel goes dark, the protection system trips, and the machine stays down until you have a verified replacement in hand. The 330904-00-05-70-01-05 is in stock at our Xiamen warehouse right now. We don’t quote lead times in weeks — we quote in hours.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Replacing a 330904-00-05-70-01-05 in the field is straightforward if you follow the sequence. Skip a step and you’ll be chasing a ghost fault for the next two hours.

Common Failure Signatures Before You Pull the Probe:

• OK LED on Proximitor goes red / extinguishes: Probe tip gap has drifted out of linear range, cable is open-circuit, or the probe body is cracked. Measure DC gap voltage at the Proximitor output — should read between –10 VDC and –18 VDC for a healthy installation at nominal gap.
• Noisy or erratic vibration reading (high 1× or broadband noise floor): Check cable routing first. PTFE-jacketed cable is robust but not immune to chafing against rotating guards. A damaged cable shield causes exactly this symptom and is frequently misdiagnosed as a bearing fault.
• Bently Nevada 3500 rack showing Channel Not OK (CNO) alarm: Before condemning the probe, verify the Proximitor supply voltage (–24 VDC nominal). A sagging power supply will pull the probe out of range and trigger CNO without any probe defect.
• Intermittent trip on startup only: Thermal expansion of the shaft changes the gap during run-up. If the probe was set at cold gap and the machine trips consistently at ~60% speed, re-gap the probe at operating temperature or adjust the alert/danger setpoints accordingly.

Step-by-Step Replacement Procedure:

1. Isolate and lock out the monitor channel. Bypass the protection channel in the 3500 rack before disconnecting anything. Do not rely on the machine being shut down — the monitor may still be powered and active.
2. Record the existing gap voltage. Before removing the old probe, note the DC output voltage at the Proximitor. This gives you a baseline for setting the replacement probe to the same gap without needing a dial indicator.
3. Verify total cable length. The NSv system is calibrated as a matched set: probe + extension cable length must equal the value on the Proximitor calibration label. The 330904-00-05-70-01-05 uses a 70 cm extension. If your existing extension is a different length, the calibration curve will be off and your vibration readings will be inaccurate even if the probe is healthy.
4. Install the replacement probe. Thread the probe into the holder by hand first, then use a probe wrench — never pliers on the cable. Torque to the value stamped on the probe holder bracket (typically 20–25 N·m for standard stainless holders).
5. Set the gap. Adjust probe depth until the Proximitor output reads within ±0.5 VDC of the recorded baseline gap voltage. Lock the jam nut. For new installations, target –12 VDC (approximately 50 mil / 1.27 mm gap) as the nominal center of the linear range.
6. Reconnect the extension cable. Ensure the BNC or TNC connector is fully seated and the locking collar is finger-tight. A half-engaged connector is the single most common cause of post-replacement CNO alarms.
7. Remove the bypass, restore the channel, and verify OK status on the 3500 rack before releasing the machine to operations.

Configuration Notes: The 330904-00-05-70-01-05 does not have user-configurable DIP switches or firmware — it is a passive eddy current transducer. All configuration (gap, scale factor, alert/danger setpoints) is managed at the Proximitor and 3500 monitor level. If you are replacing a probe that was part of a 7200 series installation, stop: the NSv calibration curve is not interchangeable with the 7200 series. You will need to replace the Proximitor as well or recalibrate the monitor channel.

Reliability in Harsh Conditions

The 330904-00-05-70-01-05 was not designed for a clean lab environment. It was designed for the places where machines actually run — hot, wet, vibrating, and chemically aggressive. The stainless steel probe body handles continuous immersion in turbine lube oil and resists the caustic wash-downs common in petrochemical plants. The PTFE cable jacket is rated for continuous exposure to hydrocarbons, steam condensate, and the cleaning solvents used in compressor overhauls.

Vibration endurance is not a marketing claim here — the NSv probe series is qualified to withstand the structural vibration levels present in the machinery it monitors, which in some compressor applications exceeds 50 g broadband. The probe tip geometry is machined to tight tolerances and maintains its calibration curve across the full –35°C to +177°C operating range, which covers everything from Arctic LNG facilities to the hot sections of industrial gas turbines.

In offshore and marine environments where salt spray and humidity are constant, the stainless construction and sealed cable entry point prevent the corrosion-driven resistance drift that degrades cheaper proximity sensors within 12–18 months. Maintenance teams on FPSOs and LNG carriers running Bently Nevada protection systems have documented service lives exceeding 10 years on NSv probes in continuous service — a track record that justifies the original equipment specification and makes the case for genuine replacement parts over aftermarket alternatives.

Global Express Logistics

Our dispatch hub is in Xiamen, China — one of the most active export ports on the Pacific Rim, with daily DHL Express and FedEx International Priority consolidations. When you confirm an order before 14:00 CST, the unit ships the same business day. No exceptions, no excuses.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK, France, Italy): 3–5 business days via DHL Express Worldwide
• North America (USA, Canada, Mexico): 3–5 business days via FedEx International Priority
• Australia & New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via DHL or FedEx depending on destination

Every shipment includes a commercial invoice, packing list, and certificate of conformance — the documentation your customs broker needs to clear the shipment without delays. For customers in countries with strict import controls on industrial electronics, we can provide additional origin documentation and HS code pre-classification support on request. We have shipped to 40+ countries and know where the friction points are.

Packaging is purpose-built for sensitive instrumentation: anti-static inner wrap, closed-cell foam suspension, and a moisture barrier outer bag inside a double-wall corrugated carton. The probe tip — the most dimensionally critical part of the assembly — is protected by a machined plastic tip guard that stays on until the probe is installed in the field.
