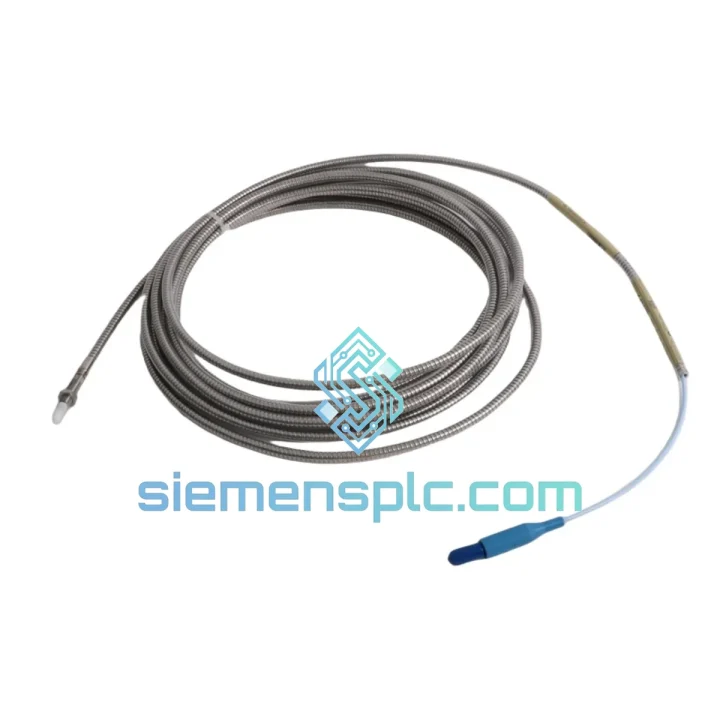

Bently Nevada 330904-00-07-10-02-05 Proximity Probe – 3300 NSv

Bently Nevada 330904-00-07-10-02-05 — Eddy-Current Proximity Probe for Continuous Rotating Machinery Surveillance

The Bently Nevada 330904-00-07-10-02-05 is a 7.87 mm eddy-current proximity probe from the 3300 NSv Series, designed for non-contact, continuous measurement of shaft radial vibration and axial position on critical rotating equipment. Operating within a calibrated measurement chain — probe, extension cable, and proximitor — this sensor delivers a DC-coupled analog voltage output that feeds directly into Bently Nevada 3300 XL and 3500 series monitoring racks without signal conditioning adapters or recalibration overhead. Its 5.0 m integral cable eliminates one field-splice junction per installation point, a detail that carries measurable consequences for signal integrity in high-vibration, high-temperature bearing pedestals.

Deployed across steam turbines, gas turbines, centrifugal compressors, and large pump trains in petrochemical, power generation, LNG, and heavy process industries, the 330904-00-07-10-02-05 is specified wherever API 670 Machinery Protection System compliance is a contractual or regulatory requirement. Its 10-32 UNF thread body fits standard API 670 probe bosses without machining modification, and the 02-05 MIL-C-26482 connector shell mates directly with the 330130 extension cable series for a sealed, moisture-resistant signal path rated to the full operating temperature envelope.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330904-00-07-10-02-05 operates on the same electromagnetic induction principle as all 3300 NSv probes: a high-frequency oscillator within the proximitor drives an LC tank circuit through the coaxial cable to the probe coil. When a conductive target enters the probe’s electromagnetic field, eddy currents are induced on the target surface, loading the tank circuit and reducing oscillation amplitude. The proximitor demodulates this amplitude change into a proportional DC voltage — 7.87 V per millimeter of gap change — with a flat frequency response from DC to 10 kHz.

EMC Design Discipline: The coaxial cable construction provides inherent common-mode rejection. The shield is grounded at the proximitor end only, preventing ground loop currents from injecting noise into the measurement signal. In environments with variable-frequency drives, arc furnaces, or high-current bus bars in proximity, this single-point grounding topology is the primary defense against 50/60 Hz and switching-frequency interference. The 02-05 MIL-spec connector adds a second layer of shielding continuity at the probe-to-extension-cable junction, maintaining shield integrity across the full measurement chain.

Thermal Stability Architecture: The probe coil is wound on a ceramic former and encapsulated in a thermally stable compound rated to +177 °C. This construction keeps the coil geometry — and therefore the scale factor — consistent across the full operating temperature range. Field experience on hot-section gas turbine bearing pedestals confirms that scale factor drift across the –35 °C to +177 °C envelope remains within the ±1% tolerance specified in the Bently Nevada calibration standard, eliminating the need for temperature compensation in the monitoring rack configuration.

Mechanical Robustness: The 10-32 UNF stainless steel body resists corrosion in wet gas and steam environments. The integral 5.0 m cable construction — versus a field-assembled probe-plus-extension configuration — removes one coaxial connector from the signal path. Each connector junction introduces a potential impedance discontinuity and a moisture ingress point; eliminating it improves both signal fidelity and long-term reliability in outdoor or wash-down installations.

Calibration Chain Integrity: The 3300 NSv system is calibrated as a matched set: probe, extension cable, and proximitor are characterized together against a reference target at the factory. The 330904-00-07-10-02-05 carries a unique calibration identifier that links it to its factory test data. When replacing a probe in an existing installation, using a factory-matched replacement from the same calibration batch preserves the measurement chain accuracy without requiring field recalibration of the proximitor gap voltage.

System Integration Benefits

• Direct rack compatibility: Plug-in replacement for existing 3300 XL and 3500/42M Proximitor I/O slots — no firmware update, no rack reconfiguration, no scale factor reprogramming required.
• API 670 compliance out of the box: Probe geometry, scale factor, and frequency response meet the 5th Edition API 670 measurement chain specification, satisfying machinery protection system acceptance testing without supplementary documentation.
• Deterministic analog output: DC-coupled voltage output eliminates the latency and jitter associated with digital fieldbus sensors; the monitoring rack receives a real-time signal with no protocol overhead, critical for trip-speed response in overspeed protection loops.
• Dual-function measurement: A single probe installation can simultaneously provide radial vibration (AC component) and average shaft centerline position (DC component) to the monitoring rack, reducing the total probe count per bearing journal by up to 50% in position-plus-vibration applications.
• Hazardous area deployment: ATEX and IECEx certifications allow installation in Zone 1 and Zone 2 classified areas when paired with approved Zener barriers or galvanic isolators, covering the majority of onshore and offshore petrochemical plant environments.
• Diagnostic transparency: The DC gap voltage output provides a continuous, readable health indicator for the probe installation. A gap voltage outside the –10 VDC ± 2 V nominal window immediately flags probe displacement, target runout, or cable damage without requiring a separate diagnostic scan.
• Reduced scheduled maintenance burden: Non-contact operation means zero mechanical wear on the sensing element. Inspection intervals can be extended to major turnaround cycles (typically 4–6 years) rather than annual replacement schedules required for contact-type sensors.
• Wide target material applicability: While calibrated for AISI 4140 steel, published correction curves for 316 stainless steel, Inconel 718, and titanium alloys allow the same probe model to cover mixed-material shaft inventories across a plant, reducing spare part SKU proliferation.

Quality Assurance & Global Logistics

Every 330904-00-07-10-02-05 unit dispatched from siemensplc.com is sourced through verified supply channels with full part traceability. Pre-shipment inspection covers physical integrity of the probe body, coaxial cable continuity, connector pin condition, and label verification against the factory calibration record. Units are shipped in original OEM packaging where available; otherwise in ESD-safe anti-static foam with moisture-barrier outer packaging rated for air freight handling.

Our logistics base in Xiamen, China provides direct access to Xiamen Gaoqi International Airport (XMN) and Xiamen Port — two of Southeast China’s primary export gateways. Standard international shipments reach Southeast Asia within 3–5 days, the Middle East and Europe within 5–8 days, and North America within 6–10 days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. For time-critical plant shutdowns, same-day dispatch on confirmed orders placed before 14:00 CST is available on in-stock units.

Export documentation — commercial invoice, packing list, certificate of origin, and HS Code 9031.80 customs declaration — is prepared in-house by our Xiamen trade compliance team. Multi-currency payment is accepted: USD, EUR, HKD, and CNY via T/T bank transfer, L/C at sight, and major credit cards. A 12-month warranty against manufacturing defects is provided with every unit, with advance replacement available for critical plant applications subject to prior agreement.
