Bently Nevada 330904-00-10-05-02-05: Eddy-Current Proximity Probe for Continuous Shaft Monitoring in Rotating Machinery

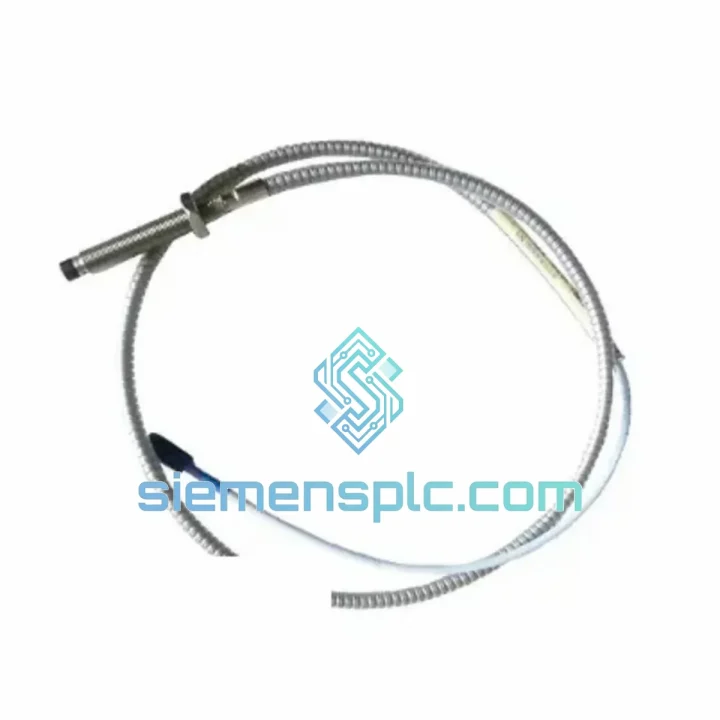

The Bently Nevada 330904-00-10-05-02-05 is a factory-calibrated eddy-current proximity probe belonging to the 3300 NSv Series. It is purpose-built for non-contact measurement of radial shaft vibration, axial position, and differential shaft expansion in turbomachinery, centrifugal compressors, and large rotating equipment operating under API 670 machinery protection standards. Unlike general-purpose inductive sensors, this probe is characterized by a tightly controlled scale factor of 7.87 V/mm (200 mV/mil), a DC-coupled frequency response extending to 10,000 Hz, and an integral coaxial cable that eliminates the impedance discontinuities introduced by field-assembled connector joints.

The probe operates on the eddy-current (electromagnetic induction) principle: a high-frequency oscillator within the paired Proximitor sensor drives an alternating magnetic field through the probe tip coil. When a conductive target — typically AISI 4140 or equivalent ferromagnetic alloy — enters the field, eddy currents are induced on the target surface, loading the oscillator circuit. The Proximitor converts this load change into a DC-proportional voltage output, delivering a linear displacement signal across a calibrated gap range of 0.25 mm to 2.25 mm (10 to 90 mil). This architecture provides a measurement chain with no moving parts, no mechanical wear, and a demonstrated MTBF exceeding 100,000 hours in continuous service environments.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330904-00-10-05-02-05 probe is designed around a single-layer, precision-wound coil encapsulated in a thermally stable ceramic-filled epoxy compound. This encapsulation strategy serves two concurrent engineering objectives: it mechanically fixes the coil geometry against vibration-induced deformation (which would shift the effective inductance and corrupt the scale factor), and it provides a dielectric barrier rated to withstand the thermal cycling encountered in steam turbine bearing pedestals where ambient temperatures can swing from cold-start ambient to sustained 150 °C+ during full-load operation.

The integral coaxial cable construction — as opposed to a field-terminated connector — is a deliberate EMC design decision. In high-frequency eddy-current measurement chains, any impedance mismatch at a connector junction introduces reflections that manifest as baseline noise on the DC output signal. By eliminating the probe-to-extension-cable connector within the first 5 m of the measurement chain, Bently Nevada reduces the noise floor of the displacement signal, which is critical when monitoring sub-mil (25 µm) shaft movements at rated speed.

The probe tip geometry is optimized for the 3300 NSv Proximitor sensor’s oscillator frequency (nominally 1.0 MHz). The coil inductance, winding resistance, and parasitic capacitance are matched to the Proximitor’s tank circuit to achieve the specified linear range without requiring field calibration. This factory-matched approach contrasts with generic eddy-current probes that require on-site calibration against a reference target, a process that introduces operator-dependent error and is impractical in installed machinery.

From an EMC standpoint, the probe’s coaxial shield is continuous from tip to Proximitor input, providing a Faraday enclosure around the signal conductor. This architecture attenuates capacitively coupled interference from adjacent power cables and motor drives — a common noise source in compressor trains where variable-frequency drives operate in close proximity to the monitoring instrumentation. The shield termination at the Proximitor chassis ground completes the shielding circuit without creating a ground loop, provided the installation follows Bently Nevada’s single-point grounding guidelines.

System Integration Benefits

• Direct 3300 NSv Monitor Compatibility: The probe’s 200 mV/mil scale factor is the native input calibration of 3300/16 and 3300/20 monitor cards. No software scaling or hardware attenuation is required, eliminating a common source of configuration error during commissioning.
• API 670 Compliance: The measurement chain (probe + extension cable + Proximitor) meets the performance requirements of API Standard 670 for radial vibration, axial position, and differential expansion monitoring, satisfying the protection system requirements of most refinery and petrochemical plant operators.
• Deterministic Signal Latency: The DC-coupled output with a 10 kHz bandwidth ensures that the Proximitor delivers a real-time analog signal with no digital processing latency. The 3300 monitor card samples this signal at its internal ADC rate, providing trip response times well within the 1-second API 670 requirement.
• Diagnostic Transparency via System 1: When integrated with Emerson’s System 1 condition monitoring software, the probe’s output feeds waveform, spectrum, and trend data to the historian. Engineers can perform orbit plot analysis, 1X/2X amplitude trending, and Bode plot generation without additional signal conditioning hardware.
• Redundant Probe Configurations: The 3300 NSv architecture supports dual-probe redundancy on a single monitor channel. Two 330904 probes can be installed at 90° to each other on the same bearing journal, enabling XY orbit analysis and providing measurement redundancy for critical machinery where a single probe failure must not cause a spurious trip.
• Extension Cable Flexibility: The probe’s integral 5 m cable mates directly with 330130-series extension cables in 5 m increments, allowing total probe-to-Proximitor distances of up to 9 m without signal degradation. This accommodates installations where the Proximitor junction box must be located outside a high-temperature zone.
• Thermal Stability of Scale Factor: The probe’s scale factor drift over the full operating temperature range (–35 °C to +177 °C) is within ±1%, ensuring that alarm and trip setpoints established during cold commissioning remain valid at operating temperature without requiring temperature-compensated correction factors.
• Minimal Maintenance Footprint: The absence of mechanical wear components and the hermetically sealed probe body reduce scheduled maintenance to periodic gap verification during planned outages. No lubrication, contact replacement, or coil re-winding is required over the probe’s service life.
