Bently Nevada 330904-00-13-05-01-00: Eddy-Current Proximity Transducer System for Critical Rotating Machinery Protection

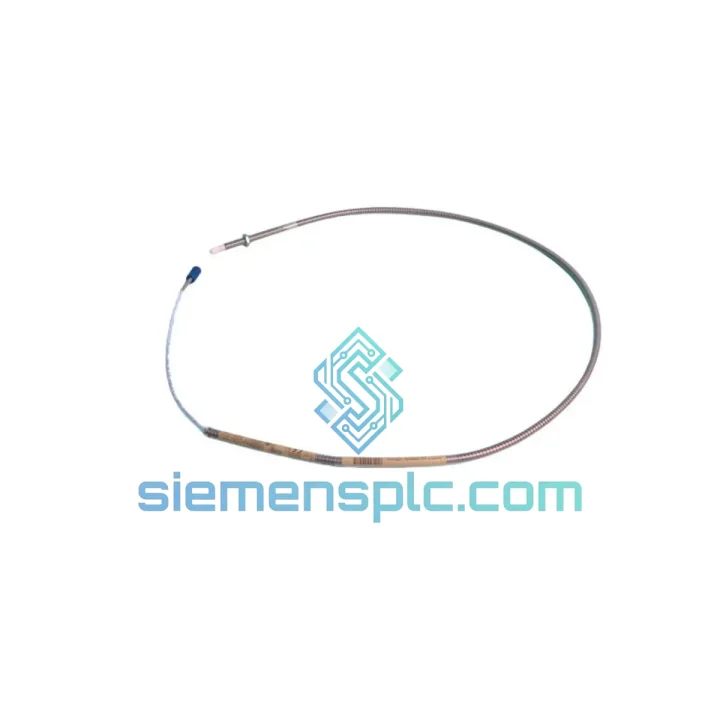

The 330904-00-13-05-01-00 is a factory-matched, three-component eddy-current proximity transducer system within Bently Nevada’s 3300 XL NSv series. It is engineered to deliver continuous, non-contact shaft displacement measurements on rotating machinery operating under API 670-compliant protection architectures. The system consists of a 13 mm diameter probe, a 5-metre armoured extension cable, and a dedicated NSv (Non-Standard Voltage) driver — all calibrated as a matched set at the factory to maintain traceability across the full operating temperature range.

In a typical turbomachinery protection loop, the probe is mounted in a machined boss on the bearing housing, positioned radially or axially relative to the shaft. The eddy-current field generated by the probe tip interacts with the conductive shaft surface; changes in the air gap modulate the field impedance, which the driver converts into a proportional DC voltage output. This voltage is fed directly into a Bently Nevada 3300 XL or 3500-series monitor, where it is compared against alarm and danger setpoints in real time. The NSv output specification is distinct from the standard –24 VDC supply range used in conventional 3300 series systems, making this model non-interchangeable with standard-voltage variants — a critical distinction for procurement and maintenance engineers.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 XL NSv architecture addresses a specific signal-chain constraint that arises when standard –24 VDC proximity systems are deployed in monitor cabinets with non-standard supply rails or in intrinsically safe (IS) barriers that impose tighter current limits. The NSv driver incorporates an internal voltage regulation stage that accepts a wider supply input range while maintaining the output scale factor — typically –7.87 V/mm — within the tolerance band required for monitor calibration. This decouples the field installation from supply rail variations that would otherwise shift the gap-voltage curve and introduce measurement error at the monitor input.

The 13 mm probe tip geometry produces a sensing field diameter approximately 2× the tip diameter, yielding an effective sensing zone of roughly 26 mm. This larger field footprint improves signal-to-noise ratio on shafts with surface finish irregularities or minor runout, compared to the 7 mm variant (330904-00-07-05-01-00), which is preferred for smaller shaft diameters where spatial constraints dominate. The 5-metre extension cable maintains the coaxial impedance characteristic required to preserve the driver’s oscillator frequency stability; substituting cables of different lengths or impedance ratings will shift the calibration curve and is explicitly prohibited by Bently Nevada’s installation guidelines.

EMC performance is achieved through the armoured cable construction, which provides a continuous shield from probe tip to driver input connector. The shield is grounded at the driver end only — a single-point grounding topology that prevents ground loop currents from injecting noise into the measurement signal. In high-EMI environments such as variable-frequency drive (VFD) motor rooms or switchgear areas, this shielding architecture maintains signal integrity without requiring additional ferrite suppression on the cable run.

The factory-matched calibration process records the probe-cable-driver combination as a traceable set. Each component carries a serial number that links to the calibration record. Substituting any single component from a different matched set invalidates the system calibration and requires re-verification against a Bently Nevada calibration standard before the system can be returned to service — a compliance requirement under API 670 Section 6.3.

System Integration Benefits

• Direct monitor compatibility: NSv output interfaces natively with Bently Nevada 3300 XL and 3500/42 Proximitor I/O modules, eliminating the need for external signal conditioning or scaling resistors.
• Deterministic alarm response: The continuous analog output allows the monitor to evaluate gap changes on every scan cycle — typically 20 ms or less — ensuring that alarm and danger thresholds are evaluated without the latency introduced by sampled digital inputs.
• Drop-in mechanical compatibility: The 13 mm probe body threads and probe boss dimensions are identical across the 330904 series, allowing replacement without re-machining bearing housing bosses or modifying probe guards.
• Diagnostic transparency: The gap voltage output is accessible at the monitor’s buffered output terminals, enabling portable data collectors or DCS historian inputs to record raw proximity data independently of the protection channel.
• Reduced false-trip risk: Factory-matched calibration minimises scale factor deviation across temperature, reducing the probability of nuisance trips caused by thermal drift in the measurement chain.
• IS barrier compatibility: The NSv driver’s supply range accommodates the output voltage of common Zener barriers and galvanic isolators used in Zone 1/Zone 2 hazardous area installations, simplifying IS loop design.
• System 1 Evolution integration: The analog output feeds directly into Bently Nevada System 1 asset management software via monitor I/O cards, enabling trend analysis, alarm rationalisation, and predictive maintenance workflows without additional hardware.
• DCS/PLC interoperability: Monitor 4–20 mA retransmission outputs derived from the proximity signal can be mapped to DeltaV, Ovation, ABB 800xA, or Siemens PCS 7 process controllers, providing shaft position data to the process control layer for load management and startup sequencing logic.
