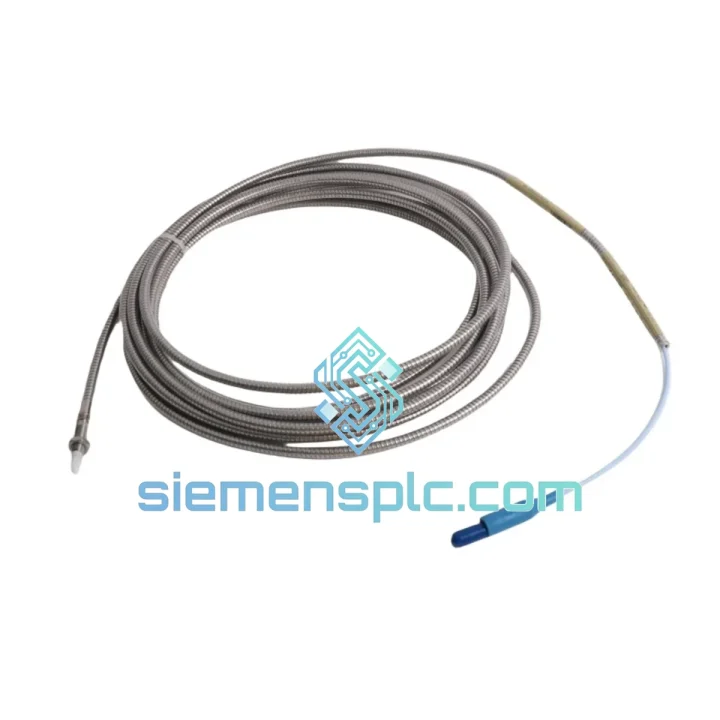

Bently Nevada 330904-00-21-10-02-05/CN Proximity Probe

330904-00-21-10-02-05/CN: Stop the Clock on Downtime — Ship Today from Xiamen

Every hour a critical rotating machine sits idle costs real money. On a gas turbine train or a centrifugal compressor, that number can exceed $50,000 per hour in lost production, emergency labor, and contractual penalties. When the root cause traces back to a failed proximity probe — a component that costs a fraction of that figure — the only question that matters is: how fast can you get the right part on-site?

The Bently Nevada 330904-00-21-10-02-05/CN is a 3300 NSv Series eddy-current proximity probe configured for 21 mm probe body, 10 m integral cable, 02-series connector, and 05 m extension — the CN regional variant for Asia-Pacific installations. We stock this exact configuration in Xiamen and can dispatch same-day via DHL Express or FedEx International Priority. No substitutions, no cross-referencing guesswork. The part number you need is the part number we ship.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for the 330904-00-21-10-02-05/CN:

1. Gap voltage out of range (typical: −10 VDC at 2.0 mm gap)
If your 3500 monitor is throwing a Not OK (NOK) on the probe channel and gap voltage reads outside −7 to −18 VDC, the probe tip or cable is compromised. Do not attempt to re-gap without first confirming the driver output is within spec. Swap the probe first — it is the most common failure point.

2. Intermittent vibration spikes / noise floor elevation
Check the integral cable for micro-fractures near the probe body — this is the highest-stress point in installations with tight bend radii. A fractured shield conductor produces exactly this symptom. Resistance between shield and center conductor should be >1 MΩ; anything lower indicates cable degradation.

3. Replacement procedure — field checklist:

• De-energize the driver and confirm zero voltage at the probe connector before disconnecting.
• Record the existing gap voltage before removal. Target gap for 330904 series: −10.0 VDC ± 0.5 VDC at nominal 2.0 mm gap on AISI 4140 target.
• Install the new 330904-00-21-10-02-05/CN and re-gap to match the recorded value. Do not assume the old gap setting is correct — bearing wear may have shifted the shaft centerline.
• The /CN variant is calibrated identically to the standard 330904-00-21-10-02-05 for AISI 4140 targets. No driver recalibration is required for like-for-like replacement.
• If replacing into a 3500 Series rack: verify the I/O module channel configuration (Radial Vibration vs. Thrust Position) matches the probe orientation before re-enabling the channel.
• Confirm the extension cable (330130 series) total system length does not exceed the driver specification — total cable length (integral + extension) must match the driver’s calibrated range.
• After energizing, allow 15 minutes thermal stabilization before accepting gap voltage as final. Eddy-current sensitivity shifts slightly with probe body temperature.

4. DCS alarm integration check:
After replacement, force a slow-roll test at <600 RPM and verify the 1× vibration vector is within historical baseline ±10%. A sudden phase shift >30° with similar amplitude often indicates a probe orientation error during reinstallation, not a mechanical fault.

Reliability in Harsh Conditions

The 3300 NSv proximity probe system was not designed for a climate-controlled lab. It was designed for the inside of a bearing housing on a gas turbine running at 10,000 RPM in a 55°C ambient with lubricating oil mist, high-frequency vibration, and electromagnetic interference from adjacent VFDs.

The 330904-00-21-10-02-05/CN probe tip is constructed from a non-ferromagnetic alloy housing with an epoxy-encapsulated coil assembly — no moving parts, no wear surfaces. The integral cable jacket is rated for continuous exposure to petroleum-based lubricants and common industrial solvents. The connector assembly is sealed against moisture ingress to IP67 equivalent when mated.

In high-vibration installations (compressor bearing housings, gearbox output shafts), the integral cable design eliminates the most common failure point seen in two-piece probe-plus-cable assemblies: the connector joint at the probe tip. A loose or corroded tip connector introduces exactly the kind of low-frequency noise that triggers nuisance trips and erodes confidence in the monitoring system. The 330904 series removes that variable entirely.

Thermal cycling performance: the probe assembly maintains calibration accuracy across repeated thermal cycles from ambient to operating temperature. In steam turbine applications where the machine is cycled weekly, this stability directly reduces the frequency of gap voltage verification checks required by your maintenance program.

For offshore and coastal installations, the CN variant’s documentation package includes the regional compliance records required for Chinese maritime and petrochemical regulatory submissions — a detail that matters when your maintenance records are audited.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items confirmed before 15:00 CST. Here is what the logistics chain looks like from the moment you place an order:

• Order confirmation → pick & pack: 2–4 hours. The 330904-00-21-10-02-05/CN is packed in anti-static foam with humidity indicator cards and a rigid outer carton rated for air freight handling.
• Export documentation: Commercial invoice, packing list, and certificate of conformance prepared simultaneously. HS Code 9031.80 declared. No delays at Chinese customs for standard industrial sensor exports.
• Carrier selection: DHL Express Worldwide or FedEx International Priority — whichever has the earlier flight departure to your destination. For Southeast Asia: next-day delivery to Singapore, Kuala Lumpur, Bangkok, Jakarta. For Middle East: 2-day to Dubai, Dammam, Doha. For Europe: 2–3 days to Rotterdam, Frankfurt, Milan. For North America: 3–4 days to Houston, Calgary, Los Angeles.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your email and WhatsApp.
• Customs clearance support: We provide all documentation required for duty-free or reduced-duty import under applicable trade agreements. For urgent plant shutdowns, we can prepare an ATA Carnet equivalent documentation set on request.

If your plant is in a location with restricted air freight access, contact us before ordering — we have freight forwarding partners in 40+ countries and can route through regional hubs to reach you faster than standard carrier networks.
