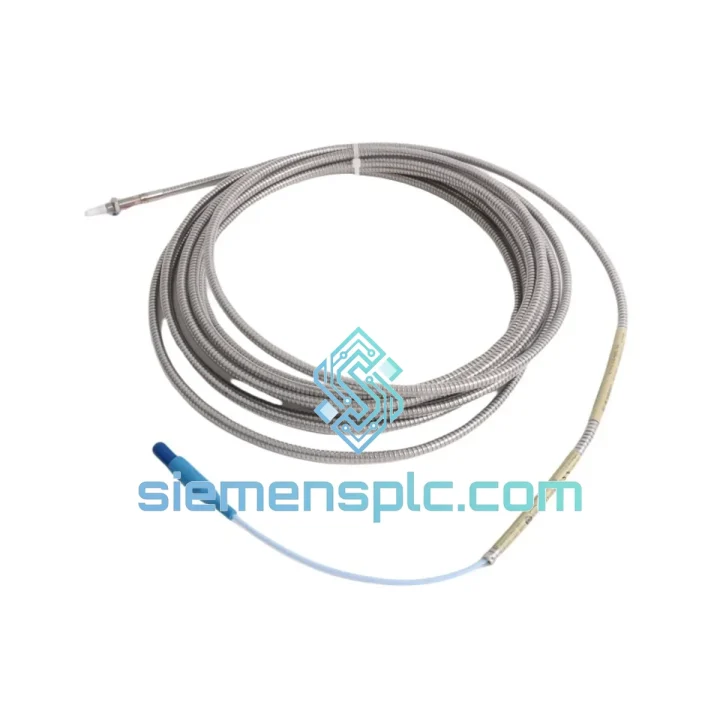

Bently Nevada 330904-00-23-10-02-00 Proximity Probe – 3300 NSv Series

Bently Nevada 330904-00-23-10-02-00: 8mm Eddy-Current Proximity Probe in the 3300 NSv Machinery Monitoring Architecture

The 330904-00-23-10-02-00 is an 8mm eddy-current proximity probe manufactured by Bently Nevada as part of the 3300 NSv Series — a platform engineered specifically for continuous, non-contact measurement of shaft radial vibration, axial position, and rotational speed in critical rotating machinery. Within a complete 3300 NSv measurement chain, this probe functions as the primary transducer: it generates a high-frequency oscillating electromagnetic field at its tip, induces eddy currents in the conductive target shaft, and converts the resulting impedance variation into a linear DC voltage output proportional to the gap distance. The output is conditioned by a matched Proximitor sensor, which delivers a calibrated signal to the monitor rack for real-time machinery protection decisions.

The 8mm tip diameter of the 330904-00-23-10-02-00 defines its linear measurement range at 0–2.0 mm, with a nominal sensitivity of 7.87 V/mm (200 mV/mil). This sensitivity figure is not a nominal approximation — it is a factory-calibrated value tied to the specific probe-cable-Proximitor system. The integral cable length is 1.0 m, and the part number suffix -02-00 designates a 2.0 m matched extension cable, yielding a total system cable length of 3.0 m. Substituting non-matched cables or Proximitor sensors outside the calibrated set will introduce systematic measurement error and invalidate API 670 compliance.

In turbomachinery protection systems — steam turbines, gas turbines, centrifugal compressors, and large pumps — the 330904-00-23-10-02-00 is typically installed in radial pairs at each bearing journal, oriented 90° apart (X–Y configuration) per API 670 §5.3. This orthogonal arrangement allows the monitor to reconstruct the full orbital path of the shaft centerline, enabling detection of sub-synchronous instability, oil whirl, rub events, and unbalance conditions that a single-axis measurement would miss. The probe’s non-contact sensing principle eliminates mechanical wear, making it suitable for continuous, uninterrupted operation across the full service life of the machine.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Eddy-Current Transduction Mechanism: The probe tip houses a precision-wound coil embedded in a thermally stable epoxy matrix. The coil is driven by the Proximitor’s internal oscillator at a fixed frequency (typically 1.0 MHz for 8mm probes), generating a near-field electromagnetic flux that penetrates the target surface to a depth governed by the skin-effect equation: δ = √(2ρ / ωμ), where ρ is target resistivity, ω is angular frequency, and μ is permeability. As the gap changes, the eddy-current loading on the coil shifts its impedance, which the Proximitor’s demodulation circuit converts to a proportional DC voltage. The result is a measurement system with no moving parts, no contact wear, and a frequency response flat from DC to 10 kHz — sufficient to capture shaft dynamic events from slow-roll runout through high-frequency rub signatures.

EMC Design and Shielding Architecture: The 330904-00-23-10-02-00 cable assembly uses a triaxial construction: the center conductor carries the coil signal, the inner shield is driven at the same potential as the center conductor (guard drive) to eliminate cable capacitance loading, and the outer shield provides EMC isolation referenced to the Proximitor chassis ground. This guard-drive topology is critical in high-noise industrial environments — variable-frequency drives, large motor starters, and arc furnaces generate broadband conducted and radiated interference that would corrupt a conventional coaxial cable’s signal. The triaxial guard drive maintains measurement accuracy to within ±0.5% of full scale even in environments with common-mode noise exceeding 10 V RMS.

Thermal Stability and Calibration Traceability: The probe coil’s temperature coefficient is compensated by the Proximitor’s internal circuitry, but only when the probe, extension cable, and Proximitor are used as a matched, factory-calibrated set — which is precisely what the part number suffix encoding enforces. The suffix -23-10 encodes the probe body configuration and temperature range, while -02-00 specifies the 2.0 m extension cable. Mixing components from different suffix sets introduces an uncompensated thermal drift that can reach 5–8% of full scale at temperature extremes, a deviation that would trigger false alarms or, worse, mask genuine machinery faults in a protection system.

Mechanical Mounting and Gap Setting: The probe threads into a standard 3/8-24 UNF mounting boss. Initial gap is set mechanically to the midpoint of the linear range (approximately 1.0 mm / 40 mil), corresponding to a Proximitor output of approximately –10 VDC. This midpoint bias ensures the measurement system has equal headroom in both directions, maximizing dynamic range for orbital analysis. The MIL-C-5015 connector provides IP67 ingress protection when mated, suitable for bearing housing environments with oil mist and wash-down exposure.

System Integration Benefits

• Direct API 670 Compliance: The 330904-00-23-10-02-00 is listed in Bently Nevada’s API 670 compliance documentation. Deploying this probe in a 3500 Series monitor rack satisfies the machinery protection standard for critical turbomachinery without additional field calibration or third-party certification.
• Deterministic Real-Time Response: The probe’s DC–10 kHz bandwidth, combined with the 3500 monitor’s 20 ms trip response time, ensures that high-speed fault events — such as a blade-loss impulse on a gas turbine — are captured and acted upon within the machinery protection system’s required response window.
• Orbital Reconstruction Capability: When installed in X–Y pairs, the probe pair feeds the 3500/42M monitor’s orbital display function, allowing maintenance engineers to visualize shaft centerline position and dynamic orbit shape — a diagnostic capability that distinguishes unbalance (circular orbit) from misalignment (elliptical orbit) and rub (truncated orbit) without machine shutdown.
• Plug-and-Play Replacement: The 330904-00-23-10-02-00 is a direct dimensional and electrical replacement for earlier 3300 Series probes of the same tip size and cable configuration. No re-ranging of the monitor channel is required, reducing maintenance downtime to the time needed for mechanical removal, reinstallation, and gap verification.
• Diagnostic Transparency via System 1: The probe’s output feeds directly into Bently Nevada’s System 1 Evolution software when connected through the 3500 rack’s Ethernet gateway. System 1 logs continuous waveform data, enabling post-event analysis of transient vibration signatures, slow-roll vectors, and historical trend data — all traceable to the specific probe channel.
• Reduced Wiring Complexity: The matched probe-plus-extension-cable assembly ships as a pre-terminated, factory-tested unit. Field wiring is limited to the Proximitor-to-monitor rack connection, eliminating the risk of field-spliced cable joints that degrade signal integrity in high-frequency measurement circuits.
• Wide Environmental Tolerance: The –35 °C to +121 °C operating range covers the full thermal envelope of most bearing housing environments, from cold-start conditions in outdoor installations to steady-state temperatures adjacent to high-pressure steam turbine casings. No derating or environmental enclosure is required within this range.
• Long-Term Spare Parts Availability: The 3300 NSv Series remains an active Bently Nevada product line with documented backward compatibility to legacy 3300 Series monitor racks. Stocking the 330904-00-23-10-02-00 as a critical spare provides a direct replacement path without requiring monitor channel reconfiguration or software re-ranging.

Quality Assurance & Global Logistics

Every 330904-00-23-10-02-00 unit dispatched from our Xiamen, China facility is a genuine Bently Nevada OEM component sourced through verified industrial supply channels. Each unit undergoes a documented pre-shipment inspection covering label and serial number integrity, connector contact condition, cable jacket continuity, and output sensitivity verification against the factory specification of 7.87 V/mm ± 0.25 V/mm. A test record is available upon request for each shipped unit.

Packaging follows anti-static and mechanical protection protocols: the probe tip is capped, the cable is coiled to a minimum bend radius of 50 mm, and the assembly is sealed in an anti-static bag within a rigid foam-lined carton. This packaging standard is maintained regardless of order quantity, from single-unit emergency spares to multi-unit project orders.

Logistics from Xiamen are handled via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to North America and Europe, and 2–4 business days to Southeast Asia. For plant-shutdown emergencies, same-day dispatch is available for orders confirmed before 14:00 CST. Full export documentation — commercial invoice, packing list, country of origin certificate, and MSDS where applicable — is prepared for every shipment to facilitate customs clearance without delay.

A 12-month warranty covers manufacturing defects and calibration drift beyond the specified tolerance band. Warranty claims are processed with a replacement-first policy: a replacement unit is dispatched upon receipt of the defective item, minimizing plant downtime. ISO 9001 supply chain documentation is available on request for procurement audit purposes.
