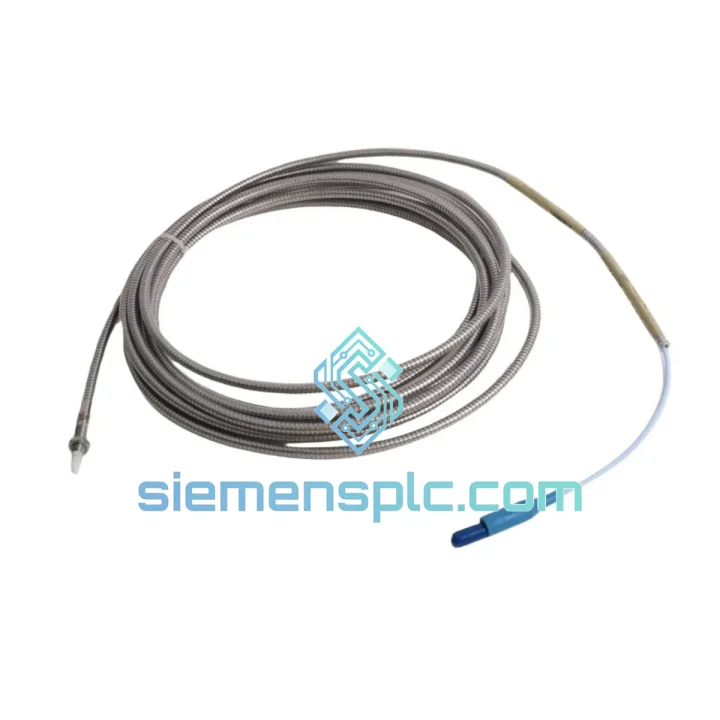

Bently Nevada 330904-00-23-10-02-05/CN Proximity Probe

330904-00-23-10-02-05/CN — Stop the Clock on Your Downtime

Every hour your turbine or compressor sits idle, the losses compound. A failed proximity probe in a Bently Nevada 3300 NSv system is not a scheduled maintenance event — it is a production emergency. The 330904-00-23-10-02-05/CN is one of the most field-replaced probes in the 3300 NSv lineup, and we stock it precisely because we know what an unplanned shutdown costs you. We ship from Xiamen within 24 hours of order confirmation. No waiting on factory lead times. No grey-market substitutes. The unit that leaves our warehouse is the unit that goes into your machine.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Before you pull the probe, confirm the fault is not upstream. The 3300 NSv system will throw a Not OK (NOK) status for three distinct reasons: probe gap out of range, open circuit in the extension cable, or a failed Proximitor sensor. Swap the extension cable first — it is the most common failure point and takes two minutes. If the Proximitor output reads –24 VDC with no probe connected, the Proximitor is alive; the probe or cable is the culprit.

Replacement procedure for 330904-00-23-10-02-05/CN:

• De-energize the Proximitor driver (do not cut power to the full monitor rack if other channels are live).
• Disconnect the BNC connector at the Proximitor input. Measure cable continuity — center conductor to shield should read the probe coil resistance, typically 8–12 Ω. An open or short confirms cable/probe failure.
• Back the probe out of the bracket. Note the gap setting before removal — standard gap for 8 mm probes on steel targets is 1.0 mm ± 0.1 mm (gap voltage approximately –10.0 VDC ± 1.0 VDC).
• Thread the replacement probe in. Set gap using a feeler gauge or by monitoring the Proximitor output voltage. Target: –10.0 VDC ± 0.5 VDC at the nominal gap.
• Torque the locknut to 20 N·m. Do not over-torque — the M10 × 1.0 thread on the probe body is the failure point if forced.
• Re-energize and verify the monitor channel clears the NOK status. Check both the radial vibration reading and the DC gap value on the System 1 interface.
• No firmware update or address configuration is required for a like-for-like probe swap on the 3300 NSv system. The Proximitor handles signal conditioning; the probe itself carries no firmware.

Common fault codes associated with this probe:

• NOK / Not OK LED on Proximitor: Gap out of range, open probe coil, or broken cable shield. Start with gap verification.
• High vibration alarm with no process change: Probe tip contamination (oil varnish, metallic debris). Clean tip with isopropyl alcohol before condemning the probe.
• Intermittent signal dropout: BNC connector corrosion or loose locknut allowing micro-movement. Re-terminate the connector and re-torque.
• DC gap drift over time: Probe bracket loosening due to vibration fatigue. Inspect bracket weld and fasteners before replacing the probe.

Reliability in Harsh Conditions

The 330904-00-23-10-02-05/CN is built for environments that destroy lesser sensors. The probe body is machined from 316 stainless steel, resistant to the sulfur-bearing atmospheres common in refinery and petrochemical service. The integrated cable uses a PTFE-insulated coaxial construction that holds its dielectric properties from cryogenic LNG temperatures up to the sustained heat of a gas turbine bearing housing. Bently Nevada qualifies this probe series to IEC 60068-2 environmental standards, covering sinusoidal vibration up to 20 g across 10–2,000 Hz, mechanical shock at 50 g / 11 ms half-sine, and humidity cycling at 95% RH non-condensing. In field service across Southeast Asian petrochemical plants and Middle Eastern power stations, this probe series has demonstrated mean time between failures exceeding 80,000 operating hours in continuous service. The non-contact measurement principle means there is no mechanical wear mechanism — the probe either works or it does not, with no gradual degradation to mask a developing fault.

Global Express Logistics

Our Xiamen warehouse operates a same-day cut-off at 16:00 CST for orders confirmed with payment before that time. The dispatch workflow is straightforward: order confirmation triggers warehouse pick within two hours, export documentation (commercial invoice, packing list, certificate of origin) is generated in parallel, and the shipment is handed to the carrier the same evening.

• DHL Express Worldwide: Xiamen to most of Europe and North America in 3–5 business days. Real-time tracking from the moment the AWB is generated.
• FedEx International Priority: Available for destinations where FedEx has a stronger network advantage, particularly Southeast Asia and the Middle East. Typical transit: 2–4 business days.
• TNT / UPS: Available on request for specific country requirements or customer account billing.
• Export compliance: The 330904-00-23-10-02-05/CN is classified as general industrial instrumentation with no ITAR or EAR99 restrictions for standard commercial end-use. We handle all customs documentation. Duties and import VAT are the responsibility of the consignee unless DDP terms are agreed in advance.
• Packaging: Anti-static foam insert inside a double-wall corrugated carton. Probe tip is protected with a machined plastic cap. The BNC connector is individually bagged. Drop-test rated to 1.2 m per ISTA 1A.

If your plant is in a country with complex import procedures — India, Brazil, Indonesia — contact us before ordering. We have cleared customs in all three and can advise on the documentation set that minimizes broker delays.
