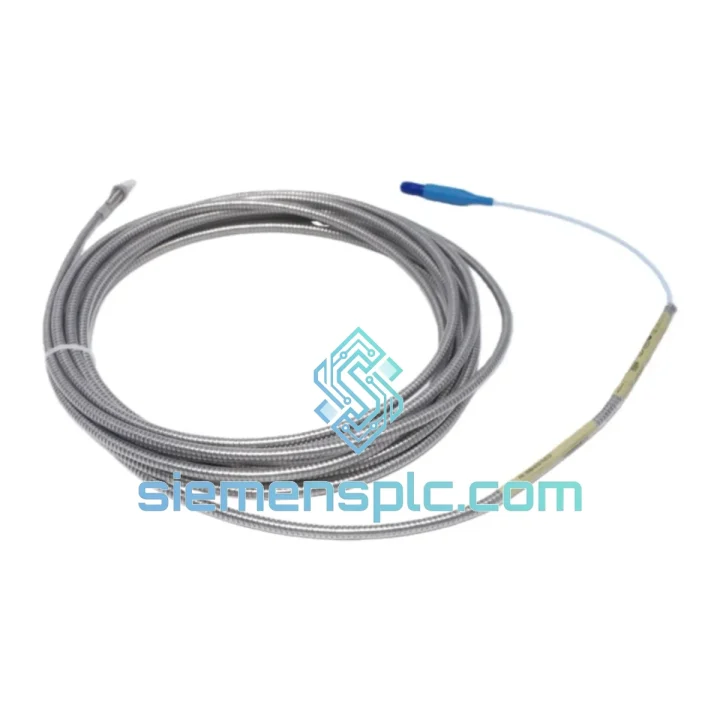

Bently Nevada 330904-01-14-05-02-00 Proximity Probe – NSv Series

Bently Nevada 330904-01-14-05-02-00 — NSv Eddy-Current Proximity Probe in Rotating Machinery Protection Systems

The Bently Nevada 330904-01-14-05-02-00 is a 5 mm tip-diameter, NSv (Non-Standard Voltage) series eddy-current proximity probe with a 14-inch integral cable. It operates on the principle of electromagnetic induction: a high-frequency oscillating magnetic field generated at the probe tip induces eddy currents in a conductive target surface. The resulting impedance change is converted by a paired proximitor into a DC voltage output linearly proportional to the air gap between probe tip and target. This non-contact measurement architecture eliminates mechanical wear, making the 330904-01-14-05-02-00 suitable for continuous, uninterrupted shaft monitoring in critical rotating assets — steam turbines, gas compressors, centrifugal pumps, and large induction motors.

Within a control loop, this probe functions as the primary sensing element feeding real-time displacement data to Bently Nevada 3500 or 3300 series monitoring racks. The output signal — typically in the range of –2 VDC to –18 VDC across the linear measurement span — is processed by the monitoring system’s I/O modules for alarm threshold comparison, trip logic execution, and historian data logging. The 5 mm tip geometry is selected for installations where radial clearance is constrained, such as bearing housings with limited probe boss depth, while still delivering a calibrated linear range of 10 to 90 mil (0.25 to 2.29 mm) against AISI 4140 steel targets.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330904-01-14-05-02-00 probe body is constructed from 316L stainless steel, providing corrosion resistance in environments exposed to lubricating oil mist, steam condensate, and mild chemical vapors common in turbomachinery enclosures. The coil winding inside the 5 mm tip is potted in a high-temperature epoxy compound rated to 120°C continuous, preventing coil displacement under mechanical vibration loads that can reach 50 g peak in some compressor applications.

The integral 14-inch cable uses a coaxial construction with a low-loss dielectric. The cable shield is terminated at the proximitor end to a single-point ground, suppressing common-mode noise injection from adjacent power cables and variable-frequency drives (VFDs). This shielding architecture is critical in panel environments where 480 VAC motor leads and 24 VDC instrumentation cables share the same cable tray — a scenario where unshielded sensor cables can exhibit noise floors exceeding 50 mV peak-to-peak, masking genuine sub-mil shaft displacement events.

The NSv designation indicates that this probe is calibrated for use with a specific proximitor driver that conditions the output to a non-standard voltage scale, distinct from the standard 3300 XL 8 mm probe family. The calibration coefficients — sensitivity slope and zero-gap intercept — are factory-matched between probe and proximitor as a system. Substituting a standard-voltage proximitor with an NSv probe without recalibration introduces a systematic gain error that invalidates alarm setpoints and can cause spurious trips or, more critically, missed trips on machinery with genuine shaft instability.

The M8 × 1.0 thread allows precise gap adjustment during installation. The recommended installed gap for this probe-proximitor system is typically 50 mil (1.27 mm), placing the operating point at the midpoint of the linear range. This center-gap installation practice maximizes the usable dynamic range for both inward and outward shaft excursions, ensuring that neither the minimum nor maximum output rail is reached during normal shaft orbit motion.

EMC performance is achieved through the combination of coaxial cable shielding, the probe body acting as a Faraday shield around the coil assembly, and the proximitor’s internal filtering. The system meets IEC 61000-4-3 radiated immunity requirements at 10 V/m field strength across the 80 MHz to 1 GHz band, making it deployable in close proximity to radio transmitters and wireless instrumentation nodes without signal degradation.

System Integration Benefits

• Direct 3500/3300 Rack Compatibility: The 330904-01-14-05-02-00 integrates without signal conditioning adapters into Bently Nevada 3500/42M Proximitor I/O modules and 3300 series monitoring cards, preserving the factory-calibrated sensitivity chain from probe tip to rack output relay.
• API 670 Compliance Preservation: Using the OEM probe maintains the machinery protection system’s compliance with API 670 fourth edition requirements for radial vibration, axial position, and eccentricity channels — a mandatory requirement for many refinery and LNG plant insurance and regulatory frameworks.
• Deterministic Alarm Response: The probe’s flat frequency response to 10,000 Hz ensures that high-frequency subsynchronous instabilities — such as oil whirl at 0.43× running speed in journal bearings — are captured without phase lag or amplitude attenuation, enabling the monitoring rack to execute trip logic within its specified 1 ms response window.
• Diagnostic Transparency via Orbit Plots: Paired on orthogonal X-Y probe mounts, two 330904-01-14-05-02-00 units provide the shaft orbit data required for Bode plot, polar plot, and full-spectrum analysis in System 1 software, enabling root-cause differentiation between unbalance, misalignment, and bearing instability without machine shutdown.
• Minimal Installation Footprint: The 5 mm tip diameter and M8 thread allow probe installation in bearing housings where the probe boss bore is as small as 9 mm, expanding the range of legacy machinery that can be retrofitted with continuous vibration monitoring without housing modification.
• Reduced Calibration Overhead: Factory-matched probe-proximitor pairs ship with a calibration certificate traceable to NIST standards. Field recalibration intervals are extended compared to third-party alternatives because the OEM sensitivity tolerance is held to ±1% of nominal, versus ±3–5% typical for aftermarket probes.
• Long-Term Spare Parts Availability: The 330904 series has been in continuous production for over two decades. Stocking this OEM part number ensures backward compatibility with existing monitoring rack configurations without firmware or hardware upgrades to the 3500 rack.
• Hazardous Area Deployment: ATEX certification allows installation in Zone 1 and Zone 2 classified areas (gas group IIC, temperature class T4) when paired with the appropriate Bently Nevada ATEX-rated proximitor, covering hydrogen-rich environments in refineries and offshore platforms.

Quality Assurance & Global Logistics

Every 330904-01-14-05-02-00 unit dispatched from our Xiamen, China facility is sourced directly from Bently Nevada (Baker Hughes) authorized distribution channels. Each unit undergoes a pre-shipment inspection protocol that includes visual examination of the probe tip and cable jacket for mechanical damage, continuity verification of the coaxial cable center conductor and shield, and part number label cross-check against the purchase order and packing documentation.

Original OEM packaging — including the anti-static inner bag, foam insert, and labeled outer carton — is preserved intact to protect the probe coil assembly from electrostatic discharge and mechanical shock during transit. A Certificate of Conformance (CoC) is issued with every shipment, documenting the part number, serial number range, inspection date, and inspector identification. For projects requiring full material traceability, factory test reports and country-of-origin documentation are available upon request at the time of order placement.

Logistics from Xiamen are executed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, 4–6 business days to North America, and 2–3 business days to Southeast Asia. For urgent plant shutdown scenarios, same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are covered by cargo insurance, and export compliance screening is performed against applicable sanctions lists prior to release. Customs documentation — including commercial invoice, packing list, and HS code declaration (HS 9031.80) — is prepared to minimize clearance delays at destination ports.
