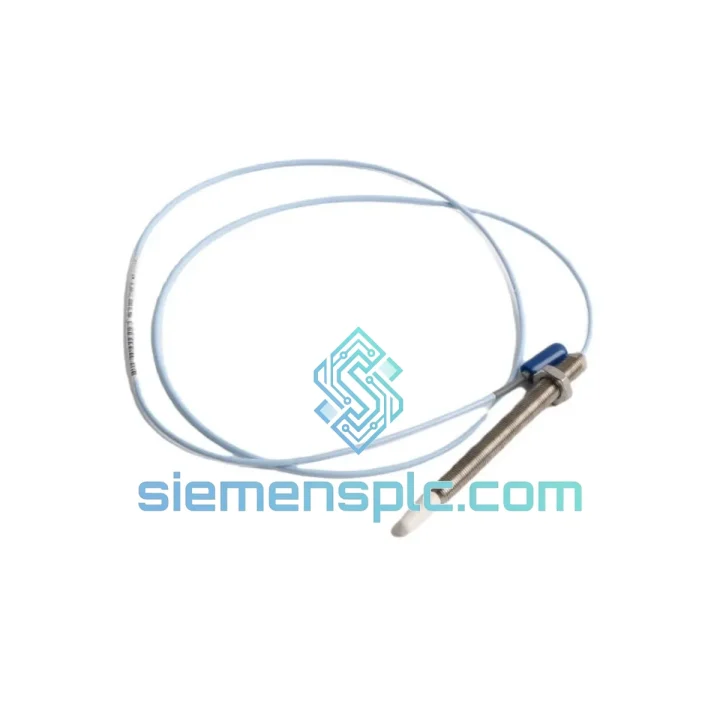

Bently Nevada 330905-00-04-05-01-00 Proximity Transducer System – 3300 XL Series

Bently Nevada 330905-00-04-05-01-00 — Eddy Current Proximity Transducer System for Critical Rotating Machinery Protection

The Bently Nevada 330905-00-04-05-01-00 is a complete, factory-matched eddy current proximity transducer system belonging to the 3300 XL Series. It is engineered for non-contact, continuous shaft displacement and vibration measurement in turbomachinery and other critical rotating equipment operating under API 670 machinery protection requirements. The system integrates a 5 mm probe tip, a 5-metre armored extension cable, and a dedicated driver/oscillator module into a single calibrated assembly — eliminating the field calibration risk inherent in mixed-component configurations.

In a control loop context, this transducer occupies the sensing layer between the rotating shaft and the condition monitoring rack. Its output — a linear DC voltage proportional to the air gap between probe tip and target surface — feeds directly into Bently Nevada 3500 or 3300 series monitor modules, where the signal is processed for alarm, trip, and trending functions. The measurement chain is deterministic: the driver oscillates at a fixed carrier frequency (nominally 1–2 MHz), and any change in eddy current loading caused by shaft displacement produces a proportional shift in the driver output voltage. This architecture delivers a DC-to-10,000 Hz bandwidth with no moving parts and no mechanical wear, making it suitable for continuous, unattended operation across multi-year maintenance intervals.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330905-00-04-05-01-00 implements a three-element signal chain — probe, extension cable, and driver — that must be treated as a single calibrated system. The probe tip houses a flat coil wound on a ferrite core, encapsulated in a PEEK or stainless-steel housing rated to 177°C. The coil is driven by the oscillator in the driver module at a carrier frequency in the 1–2 MHz range. This frequency is selected to maximize sensitivity to AISI 4140 steel while maintaining adequate penetration depth (skin depth δ ≈ 0.1–0.3 mm at these frequencies), which confines the eddy current field to the shaft surface and minimizes sensitivity to sub-surface material inhomogeneities.

The extension cable is not a passive conductor — it is an integral part of the resonant circuit. Its characteristic impedance and distributed capacitance are matched to the probe coil inductance and the driver input impedance. Substituting a non-matched cable of different length or construction shifts the resonant point, degrading scale factor accuracy and linearity. This is why Bently Nevada specifies the complete system by part number rather than individual components: the 5-metre cable in this assembly is factory-trimmed and verified against the probe and driver as a set.

The driver module performs two functions: it sustains the oscillator and demodulates the amplitude-modulated carrier into a DC output voltage. The demodulation circuit uses a precision rectifier and low-pass filter with a corner frequency set above 10 kHz, preserving the full measurement bandwidth while rejecting the carrier. The resulting output (–2 V to –18 V) is a linear representation of the probe-to-target gap, with 0.25 mm corresponding to approximately –2 V and 2.25 mm to approximately –18 V.

EMC performance is achieved through the armored extension cable construction (braided shield with drain wire, 100% coverage) and the driver’s internal filtering. The shield is grounded at the driver end only, preventing ground loop currents from injecting noise into the signal path — a critical design choice in environments with high-power variable-frequency drives and large transformer installations. The probe body’s IP67 rating and MIL-C-5015 connector provide mechanical and environmental sealing adequate for direct installation in bearing housings exposed to oil mist, steam, and process gases.

System Integration Benefits

• Direct rack compatibility: Plug-in integration with Bently Nevada 3500/22M, 3500/40M, 3300/16, and 3300/20 monitor modules — no signal conditioning adapters required, preserving the deterministic signal path from sensor to trip relay.
• Zero-wear continuous operation: Non-contact measurement eliminates probe degradation from shaft contact, supporting multi-year continuous operation without scheduled sensor replacement intervals.
• Matched-system calibration traceability: Factory calibration of probe, cable, and driver as a set provides ±1% scale factor accuracy on AISI 4140 targets, satisfying API 670 Section 5.3 calibration requirements without field verification.
• Full DC-to-10 kHz bandwidth: Captures DC position (thrust position, differential expansion), 1× and 2× synchronous vibration, sub-synchronous instabilities (oil whirl, surge precursors), and high-frequency structural resonances within a single measurement channel.
• High-temperature probe rating: 177°C probe body temperature rating permits direct installation adjacent to turbine casings and bearing housings without thermal standoffs or remote mounting brackets, reducing installation complexity and potential signal path length.
• Hazardous area variant availability: ATEX and IECEx certified assemblies are available under separate part numbers for Zone 1/Zone 2 installations, allowing standardization on the 3300 XL platform across both safe-area and classified-area machinery trains.
• Diagnostic transparency via System 1: When connected to a 3500 rack running Bently Nevada System 1 software, the transducer output supports full orbit plot reconstruction, Bode plot generation, and waterfall spectrum analysis — providing maintenance engineers with shaft dynamic data sufficient for root-cause analysis without additional instrumentation.
• Reduced commissioning risk: The matched-system architecture eliminates the most common commissioning error in proximity transducer installations — mismatched probe/cable/driver combinations — reducing site acceptance test failures and associated schedule delays.

Quality Assurance & Global Logistics

Every Bently Nevada 330905-00-04-05-01-00 unit offered through siemensplc.com is sourced from verified supply channels and subjected to a structured incoming inspection protocol before listing. Inspection covers visual examination of probe tip, cable armor, and connector bodies; dimensional verification of probe tip diameter and cable length; and electrical verification of scale factor and output voltage range against OEM datasheet parameters. Units that do not meet OEM specifications are rejected and not listed for sale.

Each shipment is accompanied by original manufacturer documentation where available, including serialized calibration records. A 12-month operational warranty against manufacturing defects is provided on all units, with DOA (dead-on-arrival) replacement guaranteed.

Logistics operations are based in Xiamen, China, a major southeastern port city with direct access to international express freight networks. Standard export shipments are dispatched via DHL Express or FedEx International Priority, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Freight forwarding and consolidated shipment options are available for multi-unit orders. Full export documentation is provided on every international shipment: commercial invoice, packing list, certificate of origin, and HS code classification (HS 9031.80 for precision measurement instruments). DDP and DAP Incoterms are supported for buyers requiring landed cost certainty.
