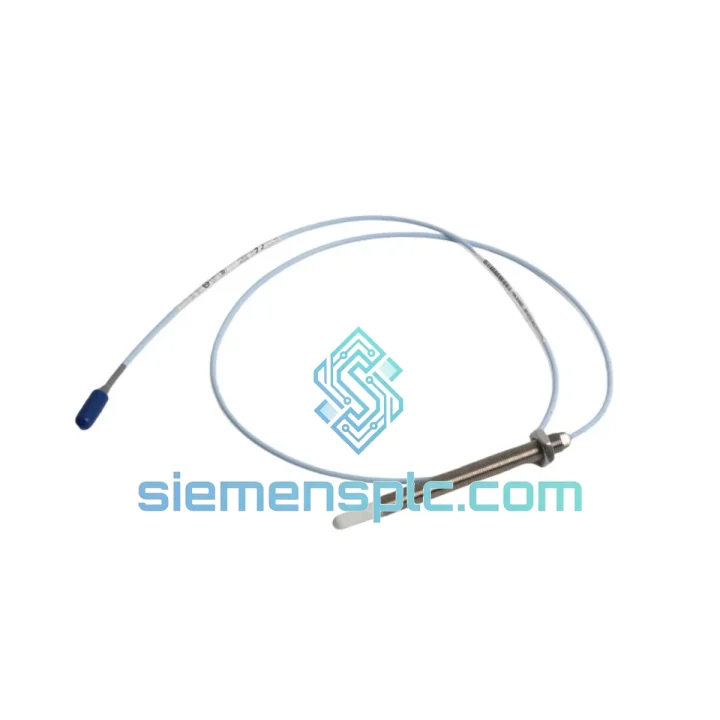

Bently Nevada 330905-00-09-05-02-00 Proximity Probe – 3300 NSv Series

Bently Nevada 330905-00-09-05-02-00 — Eddy-Current Proximity Probe for Continuous Shaft Vibration Measurement

The 330905-00-09-05-02-00 is a 9 mm eddy-current proximity probe from Bently Nevada’s 3300 NSv (Non-Standard voltage) platform, designed for non-contact, continuous measurement of radial shaft vibration and axial position on rotating machinery. Operating on the principle of electromagnetic induction, the probe generates a high-frequency oscillating magnetic field at its tip; as a conductive target surface enters this field, eddy currents are induced, loading the oscillator circuit and producing a DC output voltage proportional to the gap distance. This analog output — calibrated at 7.87 V/mm (200 mV/mil) — feeds directly into compatible 3300 XL or 3500 Series monitors without intermediate signal conditioning, preserving measurement fidelity across the full DC–10,000 Hz bandwidth.

Within a machinery protection architecture, this probe occupies the first and most critical node in the signal chain: it converts mechanical displacement into an electrical signal that drives trip logic, alarm thresholds, and trend data simultaneously. Its 5 m integral cable eliminates the most common failure point in proximity systems — the field-spliced junction — while the 316 stainless steel housing withstands the hydrocarbon-laden, high-humidity atmospheres typical of compressor trains and turbine pedestals. The 2 m extension cable (suffix -02-00) provides the additional reach required when the Proximitor sensor must be mounted outside the bearing housing thermal zone, maintaining system impedance within the calibrated range.

Deployment environments for this model span steam and gas turbines, centrifugal and reciprocating compressors, boiler feed pumps, large electric motors above 500 kW, and gearbox trains in petrochemical, power generation, and LNG processing facilities. In each application, the probe delivers the sub-micron displacement resolution required to detect incipient bearing wear, rotor imbalance, and shaft misalignment before these conditions escalate to unplanned shutdown events.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3300 NSv probe architecture addresses three fundamental engineering constraints that govern proximity measurement reliability in industrial rotating machinery: thermal stability, electromagnetic immunity, and impedance consistency.

Oscillator Circuit Thermal Compensation. The probe’s internal LC oscillator is wound with a temperature-compensated ferrite core. As ambient temperature rises from ambient to the 177 °C rated limit — a condition encountered in steam turbine bearing housings — the ferrite permeability shift is counteracted by a matched negative-temperature-coefficient capacitor network. The net effect is a sensitivity drift of less than ±0.5% across the full thermal range, eliminating the need for field recalibration when process temperatures fluctuate.

Coaxial Cable Impedance Control. The 5 m integral cable is manufactured to a controlled characteristic impedance of 95 Ω ± 5 Ω. This tolerance is critical: the Proximitor sensor’s oscillator demodulation circuit is calibrated against a specific cable impedance. Deviations beyond ±10 Ω shift the linear range endpoints and introduce a static offset error. The factory-matched cable eliminates this variable, ensuring the probe-cable-driver system behaves as a single calibrated unit rather than three independently sourced components.

EMC Shielding Architecture. The coaxial cable employs a double-braid copper shield with 95% optical coverage, terminated at both ends to the probe housing and Proximitor chassis ground. This construction attenuates conducted interference from variable-frequency drives, high-current bus bars, and RF sources common in industrial switchgear rooms. The shield is isolated from the signal conductor at the probe tip end, preventing ground loop currents from modulating the measurement signal — a failure mode that manifests as spurious 50/60 Hz components in the vibration spectrum.

Tip Geometry and Field Depth. The 9 mm tip diameter produces an effective sensing field depth of approximately 2.25 mm — exactly matching the upper end of the linear range. This geometry is optimized for shaft diameters between 50 mm and 200 mm, where the ratio of probe diameter to shaft diameter falls within the 1:6 to 1:22 range that maintains calibration accuracy. For smaller shafts, the 5 mm tip variant (330905-00-05-xx-xx-xx) is the appropriate selection.

Integral vs. Extension Cable System Impedance. The -02-00 suffix designates a 2 m extension cable, bringing total system cable length to 7 m. The Proximitor sensor’s internal compensation network is factory-set for this total length. Substituting a non-matched extension cable alters the system Q-factor, shifting the oscillator center frequency and compressing the linear range. This is the most common source of field calibration errors in proximity systems and is avoided entirely by using the factory-matched extension.

System Integration Benefits

• Direct Monitor Compatibility: The NSv output voltage range (–2 VDC to –18 VDC) maps directly to the 3300 XL and 3500 Series monitor input specifications, eliminating any need for signal scaling or external conditioning modules between the probe and the protection system.
• Deterministic Alarm Response: Because the probe delivers a continuous DC-coupled analog signal, the monitor can evaluate gap voltage against trip thresholds on every scan cycle — typically 1 ms — without the latency introduced by digital sampling or protocol conversion layers.
• Dual-Variable Measurement: A single probe installation simultaneously provides radial vibration (AC component, filtered above 1 Hz) and shaft centerline position (DC component), reducing the number of penetrations required in the bearing housing and simplifying the mechanical installation.
• API 670 Compliance: The probe meets the dimensional, sensitivity, and linearity requirements of API 670 (5th Edition), the mandatory machinery protection standard for oil and gas EPC projects. This eliminates the engineering review cycle required for non-compliant sensors.
• Diagnostic Transparency: The raw gap voltage is accessible at the Proximitor output terminal, allowing maintenance engineers to verify probe gap, check for cable damage, and confirm system health with a standard digital multimeter — no proprietary diagnostic tool required.
• Drop-in Replacement Compatibility: The 330905-00-09-05-02-00 is a form-fit-function replacement for all prior 3300 NSv 9 mm probes with equivalent cable and extension lengths. No monitor reconfiguration, no sensitivity rescaling, and no gap readjustment is required beyond confirming the physical gap is within the 0.25–2.25 mm linear range.
• Thermal Derating Absence: Unlike piezoelectric accelerometers, which require derating above 120 °C, this eddy-current probe maintains full specification to 177 °C. This makes it the correct selection for high-temperature bearing housings on steam turbines and hot-gas expanders where accelerometer-based monitoring is impractical.
• Scalable System Architecture: The probe integrates into both standalone 3300 XL single-channel configurations and fully redundant 3500 Series rack-based protection systems without hardware modification, supporting phased plant upgrades from basic monitoring to full SIL 2 machinery protection.

Quality Assurance & Global Logistics

Each 330905-00-09-05-02-00 unit supplied by siemensplc.com is sourced through verified distribution channels and subjected to a structured pre-shipment inspection protocol. Visual examination covers housing integrity, cable jacket condition, connector seating torque, and thread profile. Dimensional verification confirms probe tip diameter and thread specification against OEM drawings. Where original batch documentation is available, traceability records — including OEM date codes and calibration certificates — are provided with the shipment.

Units are packed in anti-static foam-lined cartons with desiccant sachets to prevent moisture ingress during ocean or air freight transit. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared to the destination country’s import requirements. Harmonized System classification is applied at the line-item level to facilitate customs clearance without delay.

Shipments originate from Xiamen, China — a major southeastern port with direct connections to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard air freight transit times are 3–5 business days to Europe, 4–6 days to North America, and 2–3 days to Southeast Asia. Sea freight consolidation is available for multi-unit orders where lead time permits. All shipments are fully insured and tracked from dispatch to delivery confirmation.
