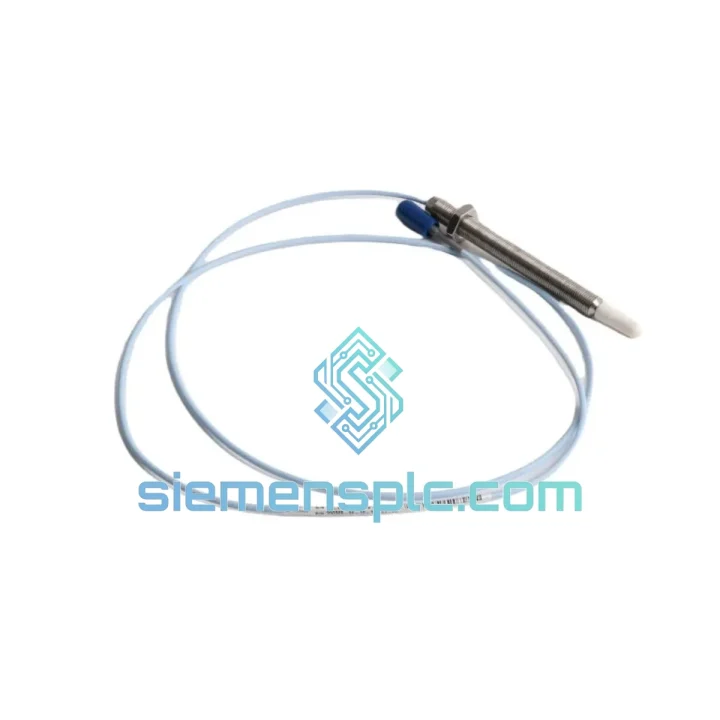

Bently Nevada 330905-00-09-10-01-00 Proximity Transducer System – 3300 XL Series

Bently Nevada 330905-00-09-10-01-00: Eddy-Current Proximity Transducer System for Continuous Shaft Monitoring

The 330905-00-09-10-01-00 is a factory-matched, three-component proximity transducer system within Bently Nevada’s 3300 XL platform — an eddy-current sensing architecture engineered for non-contact, continuous measurement of radial shaft vibration and static/dynamic displacement in critical rotating machinery. The part number suffix 00-09-10-01-00 encodes a specific hardware configuration: probe tip geometry (09 = 8 mm diameter), extension cable length (10 = 1.0 m), driver/oscillator variant (01 = standard 3300 XL driver), and connector type (00 = standard). This configuration specificity is not cosmetic — it defines the calibrated sensitivity curve, the linear measurement range, and the electrical interface that the downstream monitor card expects. Substituting any single element outside this matched set invalidates the factory calibration and introduces measurement error that no software compensation can fully correct.

In rotating machinery protection systems governed by API 670, the proximity transducer system is the first link in a measurement chain that terminates at a trip relay. Signal integrity at this first link determines whether the entire protection system meets its SIL classification. The 330905-00-09-10-01-00 is designed to deliver a nominal output sensitivity of 7.87 V/mm (200 mV/mil) across a linear range of 0.25 mm to 2.25 mm (10 mil to 90 mil) gap, with a system frequency response flat from DC to 10 kHz — sufficient to resolve sub-synchronous instabilities, oil whirl, and blade-pass events in high-speed turbomachinery without aliasing or phase distortion.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Eddy-Current Transduction Mechanism: The probe coil, driven by the oscillator at a fixed carrier frequency (typically 500 kHz for 3300 XL 8 mm probes), generates a high-frequency electromagnetic field that penetrates the target shaft surface. As the shaft-to-probe gap changes, the eddy-current losses induced in the target alter the coil’s effective impedance. The driver circuit converts this impedance variation into a proportional DC voltage output. Because the transduction is entirely electromagnetic and non-contact, there is zero mechanical wear, no hysteresis from physical contact, and no sensitivity degradation from lubricant contamination between probe and shaft.

EMC Design Architecture: The 3300 XL driver module incorporates differential signal transmission between the probe coil and the oscillator/demodulator circuit. The extension cable shield is grounded at a single point (driver end) to prevent ground loop currents from injecting common-mode noise into the measurement signal. The driver’s output stage uses a low-impedance voltage source topology, making the output signal resistant to capacitive coupling from adjacent power cables in cable trays — a critical design consideration in motor control center (MCC) environments where 480 VAC and 4–20 mA instrument loops share the same conduit infrastructure.

Matched-System Calibration Logic: The -09-10-01- suffix combination is not arbitrary. Bently Nevada’s factory calibration process characterizes each probe-cable-driver combination as a system, not as individual components. The calibration data (sensitivity in V/mm, zero-gap voltage, and linearity error) is specific to this matched set. When a replacement is ordered using the exact part number 330905-00-09-10-01-00, the replacement system’s calibration curve is within the published tolerance band of the original — allowing direct swap without recalibration of the monitor card’s scale factor or gap voltage setpoints. This is the engineering rationale for ordering by complete system part number rather than substituting individual components from different series.

Thermal Stability: The probe coil’s inductance has a temperature coefficient that, without compensation, would shift the output voltage as probe temperature changes in high-temperature bearing housings. The 3300 XL driver incorporates a temperature compensation network that corrects for probe coil thermal drift across the rated operating range, maintaining measurement accuracy within ±0.5% of full scale from ambient to 177°C probe tip temperature.

System Integration Benefits

• Direct API 670 Compliance: The 330905-00-09-10-01-00 meets the transducer system requirements of API Standard 670 (5th Edition) for non-contact vibration and position measurement, enabling its use in machinery protection systems on API-governed equipment without additional qualification testing.
• Deterministic Real-Time Response: With a flat frequency response to 10 kHz and a group delay below 50 µs across the measurement band, the system delivers phase-accurate vibration data to the monitor card — essential for orbit plot generation and phase-referenced balancing in multi-plane rotor systems.
• Zero-Maintenance Sensing: Non-contact eddy-current technology eliminates scheduled sensor replacement intervals. The probe has no moving parts, no wear surfaces, and no consumable elements, reducing maintenance labor and spare parts inventory requirements for plant MRO programs.
• Seamless 3500 Series Monitor Integration: The output signal (-24 VDC supply, 200 mV/mil sensitivity) is directly compatible with Bently Nevada 3500/40M, 3500/42M, and 3500/45 monitor cards without signal conditioning adapters, preserving the monitor’s internal alarm and trip setpoint calibration.
• Hazardous Area Deployment: ATEX II 2G Ex ia IIC T4 certification permits installation in Zone 1 hazardous areas (gas group IIC, temperature class T4), covering hydrogen and acetylene atmospheres — the most demanding explosive atmosphere classifications in petrochemical and LNG facilities.
• Diagnostic Transparency via Gap Voltage: The DC component of the output voltage provides a continuous, real-time indication of the static probe-to-shaft gap. Operators can monitor gap voltage trends to detect shaft centerline migration, bearing wear, or probe mounting looseness before these conditions affect vibration alarm thresholds.
• Multi-Plane Orbit Analysis Capability: When installed in orthogonal pairs (X-Y configuration, 90° apart), two 330905-00-09-10-01-00 systems provide the shaft position data required for full orbit plot reconstruction in the Bently Nevada System 1 software environment, enabling precise identification of rotor dynamic instabilities including oil whirl, oil whip, and rub events.
• Exact OEM Replacement — No Reconfiguration Required: Because the part number encodes the complete hardware configuration, a replacement unit ordered as 330905-00-09-10-01-00 installs into an existing 3300 XL installation without any adjustment to monitor card scale factors, gap voltage references, or alarm setpoints — minimizing maintenance window duration and eliminating post-replacement functional testing beyond a gap voltage verification check.

Quality Assurance & Global Logistics

Every 330905-00-09-10-01-00 unit supplied by siemensplc.com is sourced through verified supply channels with full part number and configuration traceability. Before shipment from our Xiamen, China facility, each unit undergoes a structured inspection protocol: label and part number verification against the ordered configuration, physical inspection of probe housing, connector integrity, and cable armor condition, and documentation review including original packaging and available factory test records.

Xiamen’s geographic position — a major international port city with direct air freight connections to Hong Kong, Singapore, Dubai, Frankfurt, and Los Angeles — enables consistent 3–5 business day delivery to most industrial destinations in Asia, the Middle East, Europe, and the Americas via DHL Express, FedEx International Priority, or UPS Worldwide Express. All shipments include a commercial invoice, packing list, and certificate of conformance. For projects requiring ATEX documentation or country-specific import certificates, these are prepared in advance of shipment upon request.

A 12-month warranty covers manufacturing defects and configuration non-conformance from the date of shipment. Urgent requirements — including same-day quotation and next-flight-out shipment for critical machinery downtime situations — are handled directly by our technical sales team.
