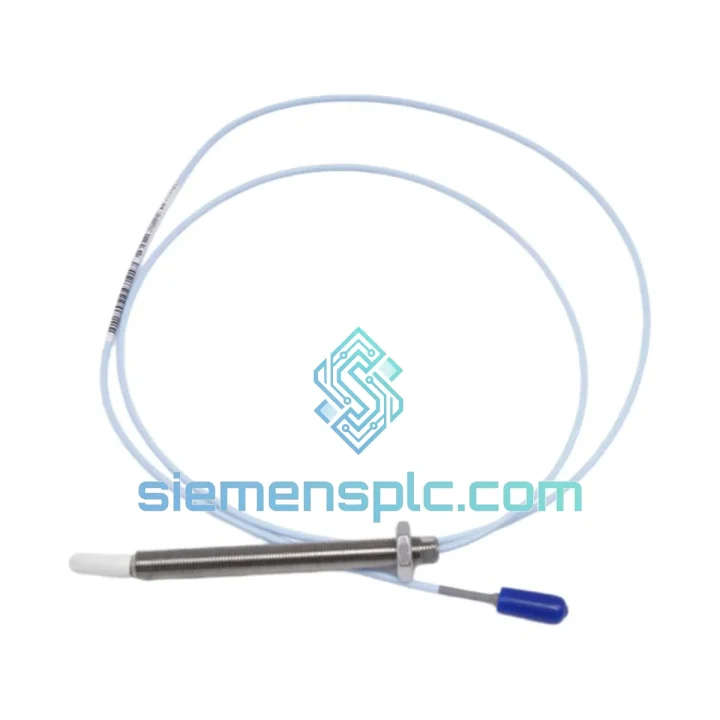

Bently Nevada 330905-00-12-05-02-05 Proximity Probe – 3300 XL NSv

Bently Nevada 330905-00-12-05-02-05 — 8 mm NSv Proximity Probe in Rotating Machinery Protection Circuits

The Bently Nevada 330905-00-12-05-02-05 is an 8 mm diameter, eddy-current-based non-contacting proximity probe belonging to the 3300 XL NSv (Non-contacting vibration) product family. Within a machinery protection loop, this probe functions as the primary transducer responsible for converting shaft displacement into a proportional DC voltage signal. Its output feeds directly into a 3300 XL NSv-compatible proximitor (oscillator-demodulator), which conditions the raw RF carrier into a calibrated DC voltage readable by the monitoring rack — typically a Bently Nevada 3500 Series or Orbit 60 system.

Unlike standard 3300 XL 8 mm probes, the NSv variant employs a modified coil geometry and a recalibrated sensitivity curve of 7.87 V/mm (200 mV/mil), optimized for operation with NSv-specific drivers. This distinction is not cosmetic: substituting a standard 3300 XL probe into an NSv driver circuit will produce a systematic measurement offset that cannot be corrected through software scaling alone. The probe’s linear measurement range spans 0.25 mm to 2.25 mm (10 to 90 mil) of gap, providing 2.0 mm of usable dynamic range — sufficient for radial vibration, axial position, differential expansion, and eccentricity measurement on most industrial rotating equipment.

The suffix breakdown of 330905-00-12-05-02-05 encodes the complete mechanical and electrical configuration: 8 mm NSv series (330905), revision 00, 12 mm probe body length, 5 m integral cable, standard BNC connector (02), and armored cable construction (05). The stainless-steel braid armor on the integral cable provides both mechanical abrasion resistance and a degree of EMI shielding, making this variant the preferred choice for installations near high-voltage switchgear, variable-frequency drives, or other sources of conducted and radiated interference.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The operating principle of the 330905-00-12-05-02-05 is based on the eddy-current effect. The probe tip houses a flat coil energized by a high-frequency RF oscillator (typically 1 MHz range) embedded in the paired proximitor. When a conductive target surface approaches the probe tip, eddy currents are induced in the target, loading the oscillator circuit and reducing its amplitude. The proximitor demodulates this amplitude-modulated signal into a DC voltage proportional to the gap distance between probe tip and target surface.

NSv Coil Geometry: The NSv coil is wound to a tighter specification than the standard 3300 XL coil, producing a more focused electromagnetic field pattern. This reduces the effective sensing diameter (the zone of influence on the target surface) and improves linearity at the extremes of the measurement range. The trade-off is a narrower acceptable target diameter — the minimum recommended target diameter for an 8 mm NSv probe is approximately 25 mm, consistent with API 670 Annex D requirements.

EMC Design: The armored cable (suffix -05) provides a continuous conductive shield from the probe body to the BNC connector. This shield is grounded at the proximitor end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the output signal. In installations near VFDs operating at switching frequencies of 2–16 kHz, the armored cable has demonstrated measurable reduction in conducted interference compared to unarmored variants, preserving signal integrity at the sub-millivolt level required for accurate vibration amplitude measurement.

Thermal Stability: The probe body is constructed from 316 stainless steel, and the coil potting compound is rated to 177 °C continuous. At elevated temperatures, the coil resistance increases slightly, which would ordinarily shift the sensitivity. Bently Nevada compensates for this through a temperature-coefficient correction built into the NSv proximitor calibration, maintaining sensitivity accuracy within ±1% across the full operating temperature range without field recalibration.

Mechanical Mounting: The M10 × 1 thread allows precise axial positioning of the probe tip relative to the target shaft. The recommended installation gap is 1.0 mm (40 mil), placing the operating point at the midpoint of the linear range. Lock nuts and probe holders (not included) should be torqued per Bently Nevada installation procedures to prevent probe migration under vibration — a common failure mode in high-cycle fatigue environments.

System Integration Benefits

• Direct 3500 Series rack compatibility: The probe’s output voltage range (−2 VDC to −18 VDC across the linear range) is directly compatible with 3500/40M and 3500/42M monitor input specifications, requiring no signal conditioning adapters.
• API 670 Fifth Edition compliance: The 3300 XL NSv system meets the transducer performance requirements of API 670, the industry standard for machinery protection systems in oil and gas applications, including sensitivity tolerance, temperature range, and EMI immunity.
• Deterministic signal latency: The eddy-current measurement chain introduces no sampling jitter — the output is a continuous analog DC signal. This ensures that the monitoring rack receives real-time shaft position data with no digital conversion delay, critical for overspeed and high-vibration trip functions where response time is measured in milliseconds.
• Plug-and-play replacement: Genuine OEM probes ship factory-calibrated to the NSv sensitivity curve. No field calibration is required upon installation — the system gap voltage at 1.0 mm installation gap will read −10.2 VDC ± 0.2 V, consistent with the proximitor’s calibration record.
• Diagnostic transparency: The DC output voltage provides a direct, measurable indicator of probe health. A static output outside the −2 V to −18 V range at known gap indicates probe or cable failure, enabling rapid fault isolation without specialized test equipment.
• Multi-parameter measurement from a single probe: Depending on mounting orientation, the same probe can simultaneously provide radial vibration (dynamic AC component) and shaft centerline position (static DC component) data to the monitoring system, reducing the total number of transducers required per bearing.
• Long-term spare parts availability: As part of the Baker Hughes / Bently Nevada global product portfolio, the 330905 series has an established long-term availability commitment, reducing lifecycle risk for plant operators planning 20+ year equipment service intervals.
• Hazardous area variants: ATEX and IECEx certified configurations are available within the 330905 part number family, allowing the same probe series to be deployed across both safe-area and Zone 1/Zone 2 classified locations within the same plant, simplifying spare parts inventory management.

Quality Assurance & Global Logistics

Every 330905-00-12-05-02-05 unit supplied through siemensplc.com is sourced as a genuine Bently Nevada (Baker Hughes) OEM component. Units are stored in climate-controlled warehouse conditions in Xiamen, China, maintaining probe coil integrity and preventing moisture ingress into the cable termination — a known failure mechanism for proximity probes stored in uncontrolled environments.

Pre-shipment verification includes visual inspection of the probe tip, cable armor continuity check, and connector integrity assessment. Each unit ships in original manufacturer packaging with accompanying documentation. For orders requiring formal material traceability, certificates of conformance and country-of-origin documentation are available upon request at no additional charge.

Logistics from Xiamen port to major industrial hubs: 3–5 business days to Southeast Asia; 5–8 business days to the Middle East and Europe via express air freight; 7–12 business days to North and South America. DDP (Delivered Duty Paid) terms are available for select destinations — confirm at time of order. All shipments are fully insured and tracked from dispatch to delivery confirmation.

A 12-month warranty covers manufacturing defects under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation.
